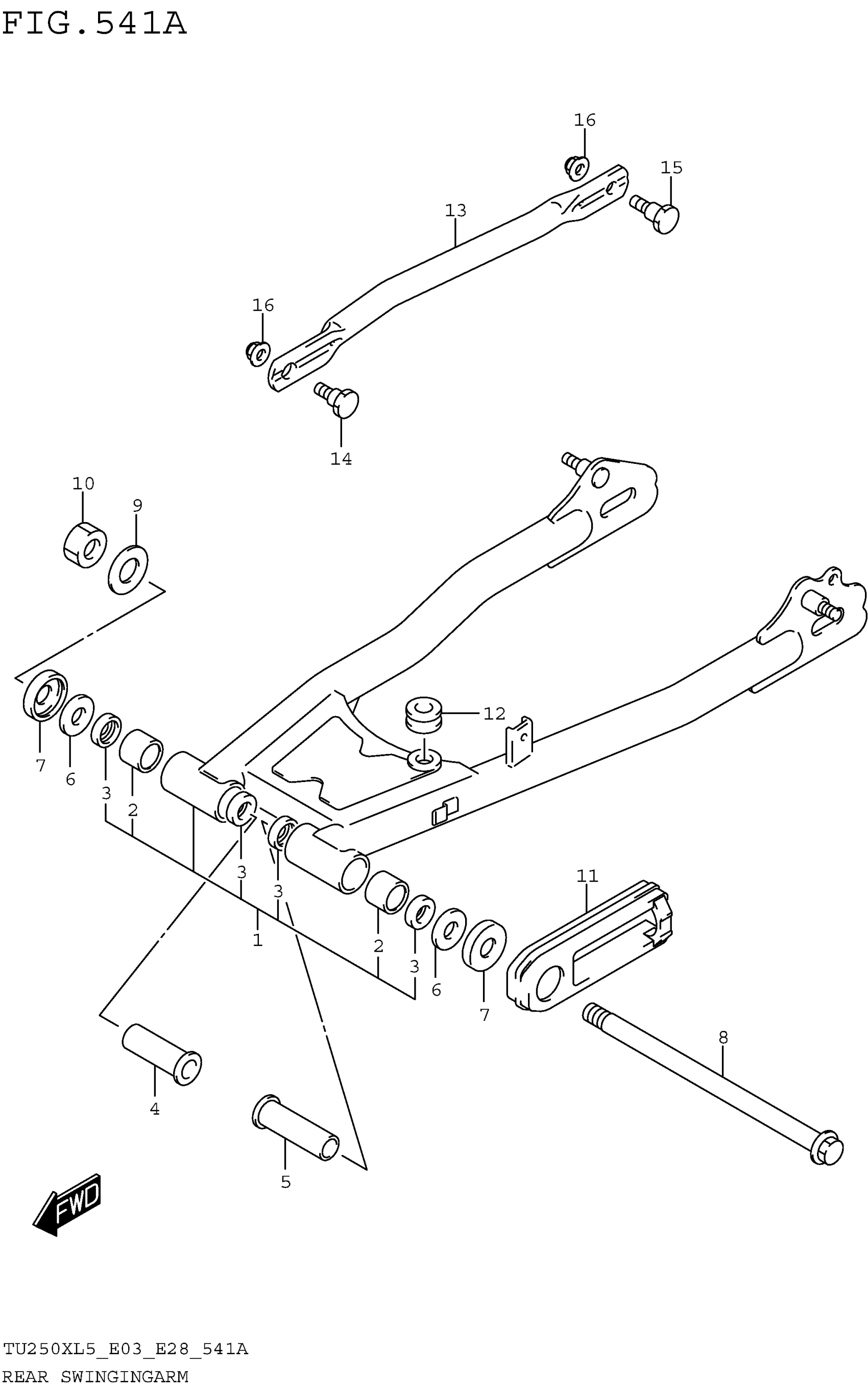

Suzuki TU250XL5 (2015) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGINGARM ASSY, REAR (BLACK)

61000-25D80-019

$464.63

2

.BUSHING, RR SWGARM PIVOT

61261-13700

$15.33

3

OIL SEAL (20X27X5)

09283-20031

$4.73

4

SPACER, SWINGINGARM PIVOT RH

61251-38300

Unavailable

5

SPACER, SWINGINGARM PIVOT LH

61252-38300

Unavailable

6

WASHER

08211-15321

Unavailable

7

SEAL,DUST This part replaces 61262-38300.

61262-38301

$8.48

8

SHAFT, REAR SWINGINGARM PIVOT

61211-38310

Unavailable

9

WASHER

08322-0114B

$2.95

10

NUT

08319-2114A

$3.62

11

BUFFER, CHAIN TOUCH DEFENSE

61273-25D50

Unavailable

12

CUSHION

09320-08020

$3.70

13

TORQUELINK, REAR

64310-26G00

Unavailable

14

BOLT (8X21)

09111-08098

$6.77

15

BOLT (8X24)

09111-08067

$3.81

16

NUT

08319-3108A

$2.31
