2015 Suzuki TU250XL5 Front Fork Damper Diagram

← All diagrams

Find the part on the Front Fork Damper diagram for your 2015 Suzuki TU250XL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

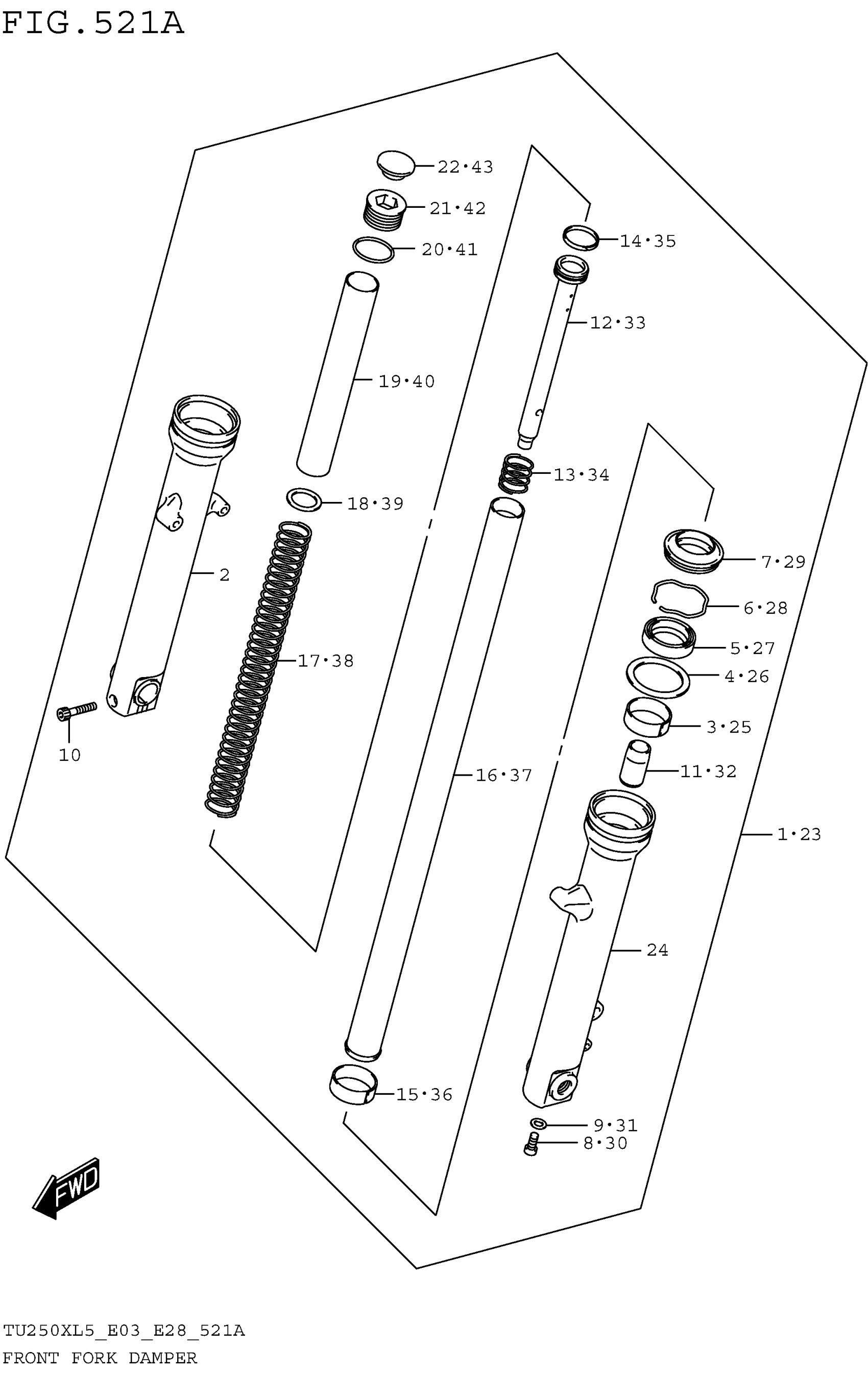

2015 Suzuki TU250XL5 Front Fork Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, FRONT FORK RH

51103-26G00

1
Out of stock

2

TUBE, OUTER RH

51130-26G00

1
Out of stock

3

BUSH, GUIDE

51152-25D00

1
Out of stock

4

SPACER, SEAL This part replaces 51158-03B30.

51168-38A00

1
Out of stock

5

SEAL, OIL

51153-03B30

1
Out of stock

6

RING, STOPPER

51156-03B30

1
Out of stock

7

SEAL, DUST

51173-25D00

1
Out of stock

8

BOLT

51147-48130

1
Out of stock

9

GASKET

51148-36011

1
Out of stock

10

BOLT

07130-08357

1
Out of stock

11

PIECE, OIL LOCK

51195-25D00

1
Out of stock

12

CYLINDER

51146-25D00

1
Out of stock

13

SPRING, REBOUND

51177-25D00

1
Out of stock

14

RING, PISTON

51196-25D00

1
Out of stock

15

BUSH, SLIDE

51121-03B30

1
Out of stock

16

TUBE, INNER

51110-25D00

1
Out of stock

17

SPRING, MAIN

51171-26G00

1
Out of stock

18

JOINT, SPRING

51192-25D00

1
Out of stock

19

SPACER, SPRING

51176-25D00

1
Out of stock

20

O RING

51117-25D00

1
Out of stock

21

BOLT, FORK

51189-25D00

1
Out of stock

22

CAP, FORK

51351-03D00

1
Out of stock

23

DAMPER ASSY, FRONT FORK LH

51104-26G00

1
Out of stock

24

TUBE, OUTER LH

51140-26G00

1
Out of stock

25

BUSH, GUIDE

51152-25D00

1
Out of stock

26

SPACER, SEAL This part replaces 51158-03B30.

51168-38A00

1
Out of stock

27

SEAL, OIL

51153-03B30

1
Out of stock

28

RING, STOPPER

51156-03B30

1
Out of stock

29

SEAL, DUST

51173-25D00

1
Out of stock

30

BOLT

51147-48130

1
Out of stock

31

GASKET

51148-36011

1
Out of stock

32

PIECE, OIL LOCK

51195-25D00

1
Out of stock

33

CYLINDER

51146-25D00

1
Out of stock

34

SPRING, REBOUND

51177-25D00

1
Out of stock

35

RING, PISTON

51196-25D00

1
Out of stock

36

BUSH, SLIDE

51121-03B30

1
Out of stock

37

TUBE, INNER

51110-25D00

1
Out of stock

38

SPRING, MAIN

51171-26G00

1
Out of stock

39

JOINT, SPRING

51192-25D00

1
Out of stock

40

SPACER, SPRING

51176-25D00

1
Out of stock

41

O RING

51117-25D00

1
Out of stock

42

BOLT, FORK

51189-25D00

1
Out of stock

43

CAP, FORK

51351-03D00

1
Out of stock
