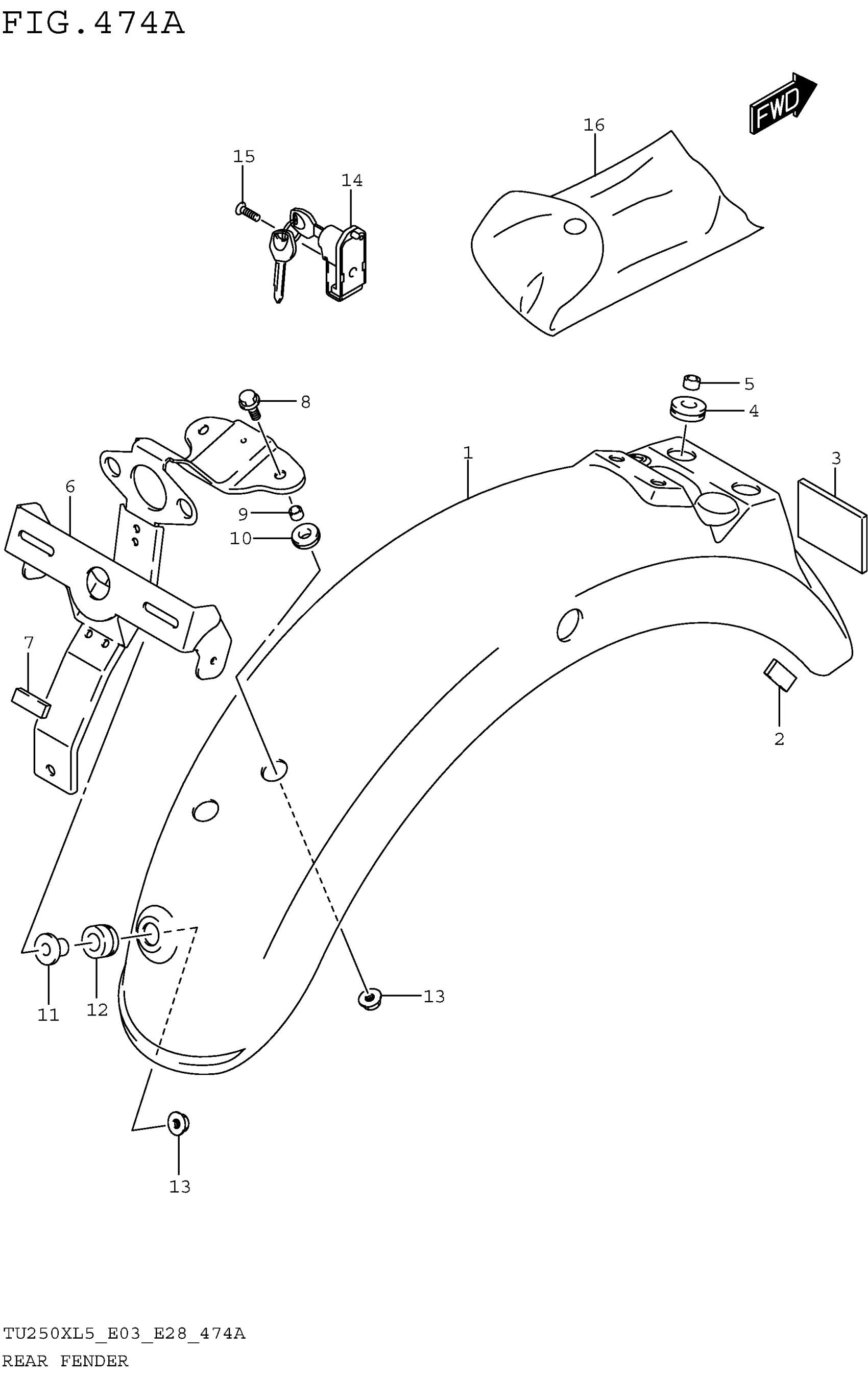

Suzuki TU250XL5 (2015) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR (BLACK)

63111-26G30-YAY

Unavailable

2

CUSHION

63191-26G00

Unavailable

3

CUSHION, REAR

63192-26G00

$11.00

4

CUSHION This part replaces 09320-13005.

09320-13025

$2.74

5

SPACER (8.5X14X9)

09180-08199

$2.14

6

BRACE, TAIL LAMP (BLACK)

63210-26G10-291

$155.18

7

CUSHION

63211-26G00

$11.00

8

BOLT

01550-0625B

$2.43

9

SPACER (6.5X10.5X15)

09180-06079

$2.62

10

CUSHION

09320-10053

Unavailable

11

SPACER (6.5X10X11.6)

09180-06319

$4.92

12

CUSHION

09320-10501

$4.85

13

NUT

08316-1006B

$2.50

14

LOCK SET, HELMET

95700-42820

Unavailable

15

SCREW

02122-0620B

$1.46

16

TOOL SET

09800-25850

$28.32
