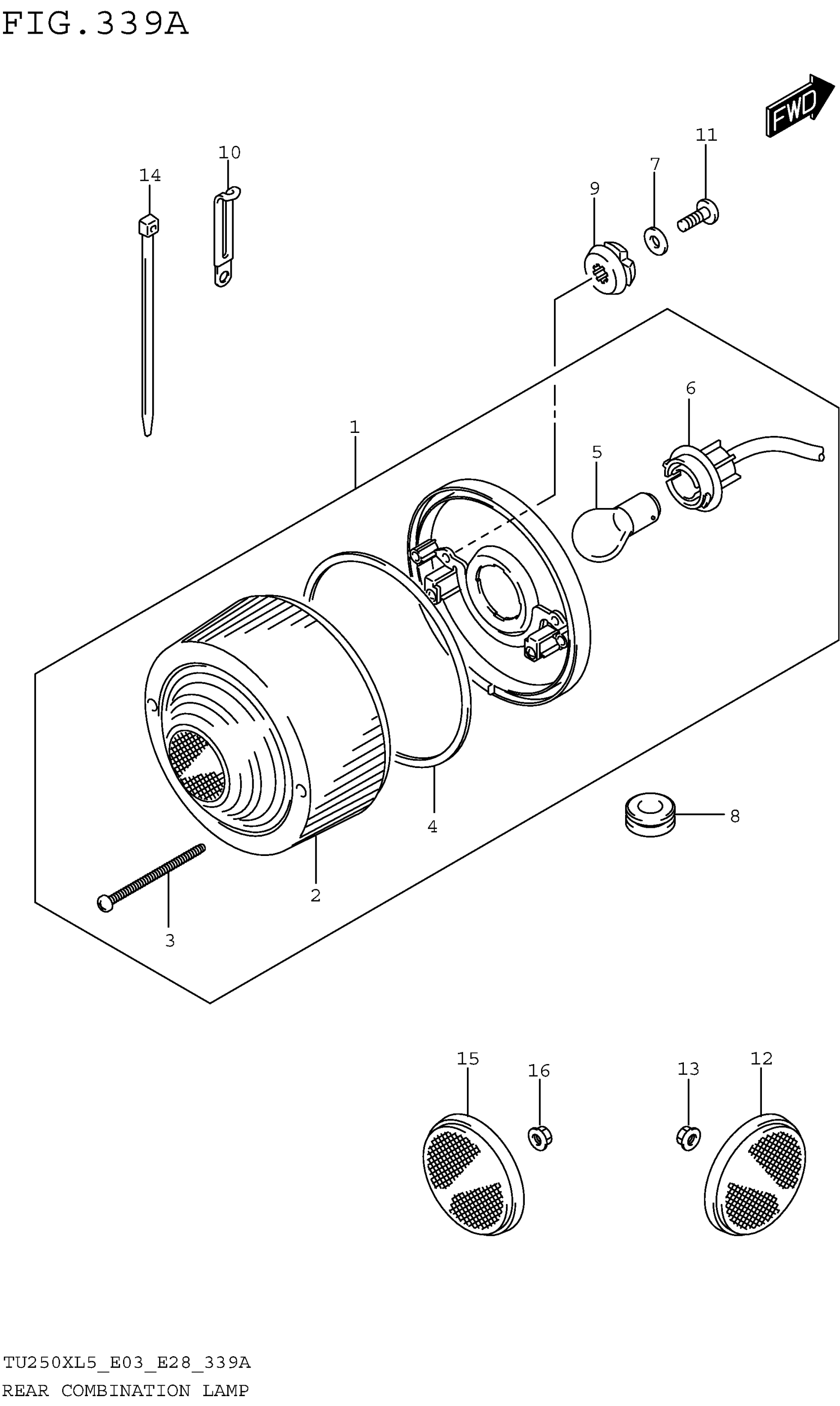

Suzuki TU250XL5 (2015) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION

35710-26G30

$381.12

2

LENS

35712-26G30

$67.93

3

SCREW

03211-04556

$2.55

4

GASKET

35713-26G00

$25.99

5

BULB (12V,21/5W)

09471-12128

$6.08

6

CORD ASSY

35718-26G00

$46.72

7

WASHER (5.5X20X1.2)

09160-05501

$1.86

8

GROMMET

09308-07011

$2.64

9

CUSHION

09320-09010

$2.80

10

CLAMP (L:45) This part replaces 09404-08205.

09404-08211

$2.43

11

SCREW

02142-0525B

$2.95

12

REFLECTOR ASSY, RR SIDE

35970-14A20

$14.23

13

NUT

08316-1005B

$2.50

14

CLAMP (L:145)

09407-14407

$2.80

15

REFLECTOR ASSY, RR SIDE

35970-14A20

$14.23

16

NUT

08316-1005B

$2.50
