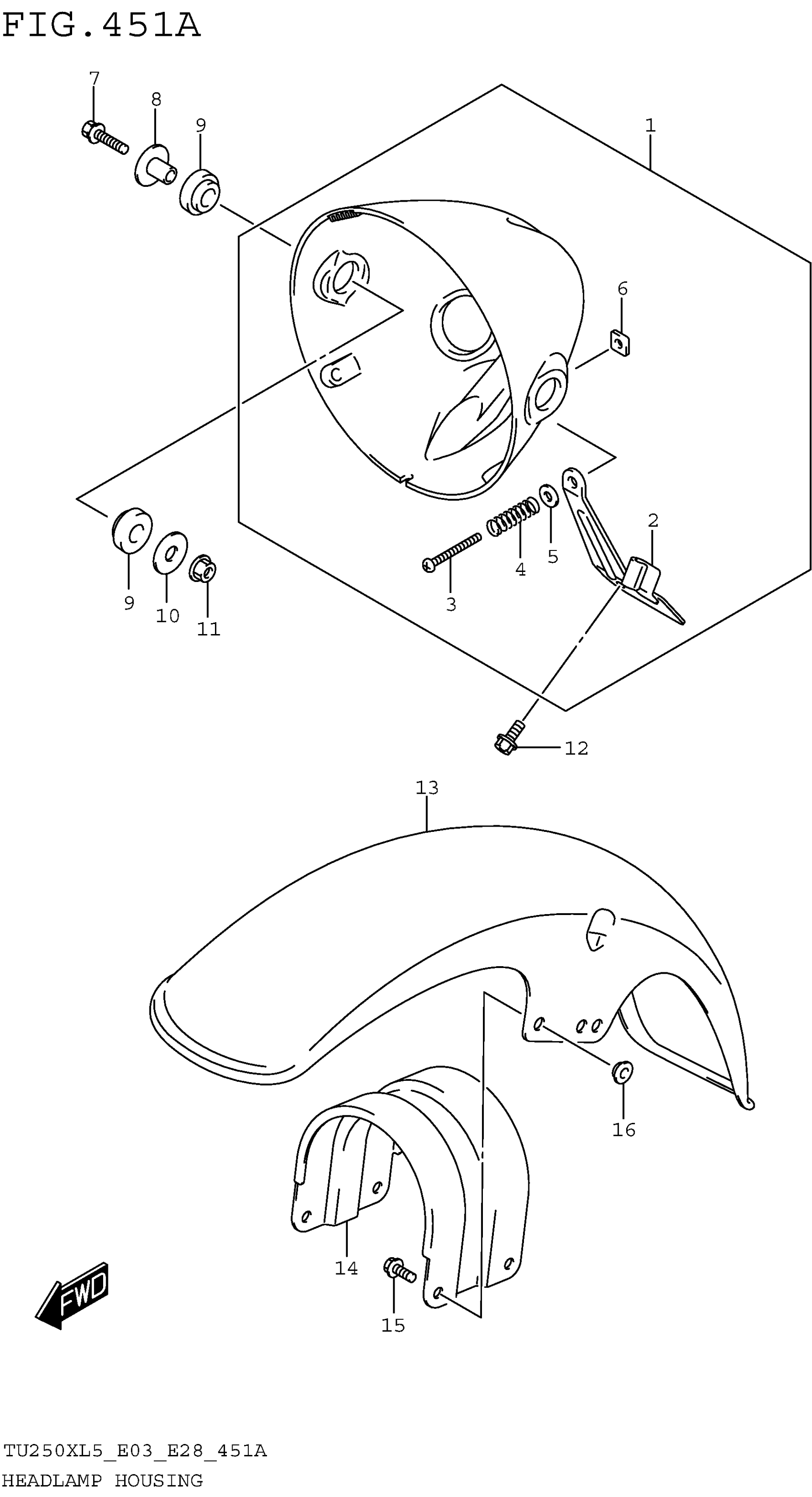

Suzuki TU250XL5 (2015) HEADLAMP HOUSING Diagram

#

Description
Price

1

HOUSING SET, HEADLAMP (BLACK)

51800-26G30-019

$108.07

2

PLATE

51840-26G00

$49.73

3

SCREW (5X45)

09125-05128

$3.05

4

SPRING

51837-25D00

$5.75

5

WASHER

08322-0105B

$2.24

6

NUT

51825-25D00

$4.62

7

BOLT

01244-08357

$3.66

8

SPACER (8.6X12X21.3)

09180-08217

$3.17

9

CUSHION This part replaces 09320-12065.

09320-12101

$2.80

10

WASHER (8.5X28X1.6)

09160-08157

$3.30

11

NUT

08316-1008B

$2.65

12

SCREW

02162-0616B

$2.06

13

FENDER, FRONT (BLACK)

53111-26G10-YAY

$292.77

14

BRACE

53112-26G00

$33.02

15

BOLT

01560-0616B

$3.38

16

WASHER

09169-06071

$2.50
