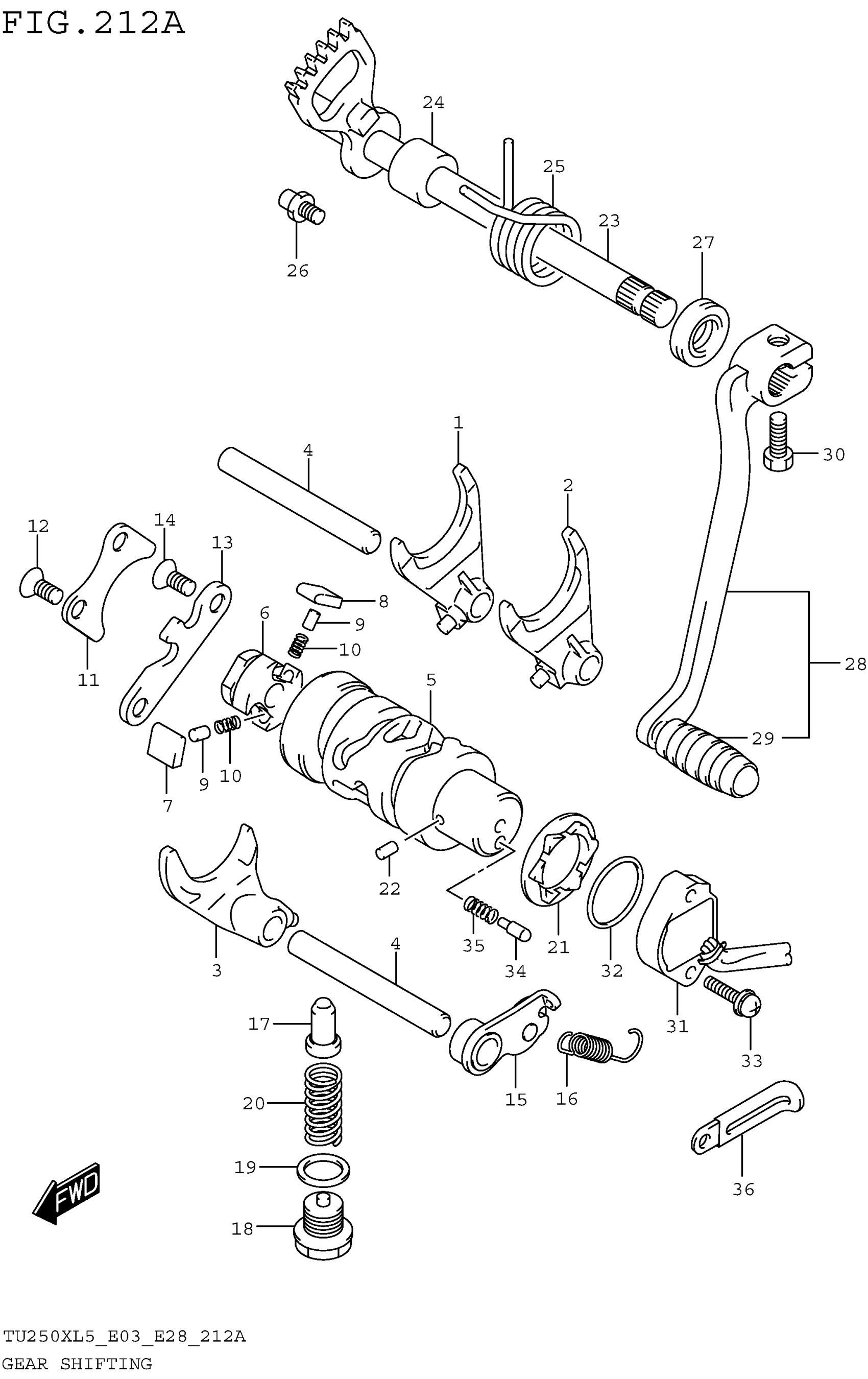

Suzuki TU250XL5 (2015) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT NO.1

25211-32402

Unavailable

2

FORK, GEAR SHIFT NO.2

25221-32403

Unavailable

3

FORK, GEAR SHIFT NO.3

25231-32402

Unavailable

4

SHAFT, GEAR SHIFT FORK

25411-14331

$23.07

5

CAM, GEAR SHIFT

25310-38210

Unavailable

6

GEAR, GEAR SHIFT CAM DRIVEN

25322-31310

$26.93

7

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

8

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

9

PIN (5X8)

09261-05003

$1.54

10

SPRING

09440-04003

$1.54

11

LIFTER, GEAR SHIFT PAWL

25331-38201

Unavailable

12

SCREW (6X12)

09126-06011

$2.03

13

GUIDE, GEAR SHIFT CAM

25341-38200

Unavailable

14

SCREW (6X12)

09126-06011

$2.03

15

STOPPER, GEAR SHIFT CAM

25350-34000

$15.42

16

SPRING

09443-08026

$2.64

17

STOPPER, GEAR SHIFT CAM NO.2

25351-30010

$11.95

18

PLUG (14X12)

09247-14026

$3.76

19

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

20

SPRING

09440-11026

$4.60

21

PLATE, GEAR SHIFT CAM STOPPER

25381-45400

$20.45

22

PIN

04221-04069

$2.12

23

SHAFT, GEAR SHIFT

25510-38200

$102.17

24

SPACER (12X20X15.3)

09180-12068

$3.16

25

SPRING

09444-26004

$4.45

26

STOPPER, GEAR SHIFT ARM

25671-01011

$4.48

27

OIL SEAL (12X22X9)

09285-12006

$6.32

28

LEVER ASSY, GEAR SHIFT

25600-053A0

$43.16

29

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

$3.74

30

BOLT

01500-0620A

$1.78

31

BASE ASSY, GEAR SHIFT TERM

37720-25D00

$117.48

32

O RING (D:2.4,ID:26.2)

09280-26005

$2.30

33

BOLT (5X16)

09106-05023

$2.92

34

PIN (5X15.5)

09209-05011

$2.20

35

SPRING

09440-04010

$1.54

36

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74
