2015 Suzuki TU250XL5 Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 2015 Suzuki TU250XL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

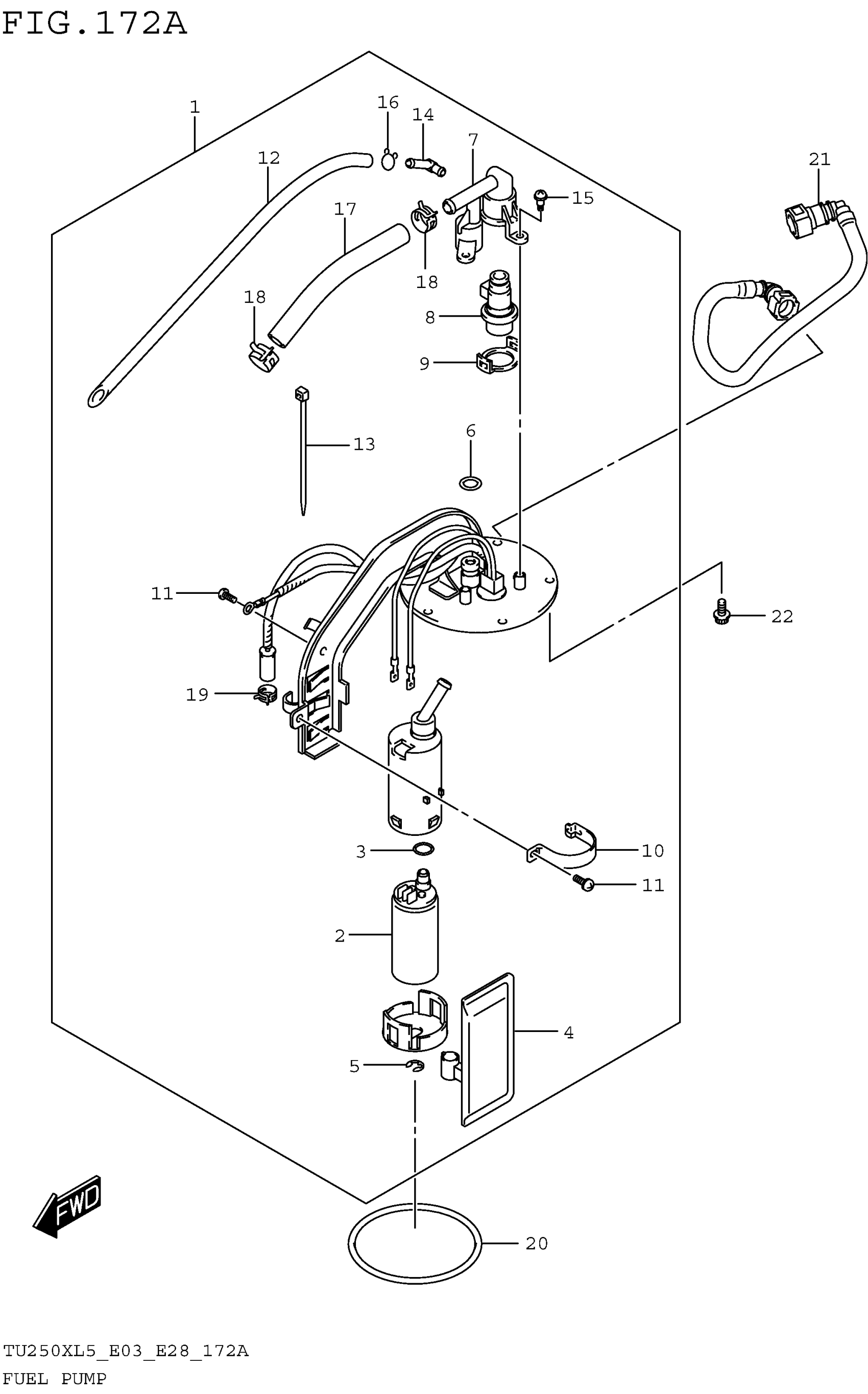

2015 Suzuki TU250XL5 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY, FUEL

15100-26GA0

1
Out of stock

2

PUMP, FUEL

15110-26GA0

1
Out of stock

3

O RING

13295-26GA0

1
Out of stock

4

FILTER

15420-26GA0

1
Out of stock

5

PLATE

15119-14G00

1
Out of stock

6

O RING

15125-48G00

1
Out of stock

7

ADAPTER

15131-26GA0

1
Out of stock

8

REGULATOR, PRESSURE

15610-48G00

1
Out of stock

9

CLIP

15613-48G00

1
Out of stock

10

BAND

15426-26GA0

1
Out of stock

11

SCREW

15116-48G00

2
Out of stock

12

HOSE

13683-26GA0

1
Out of stock

13

CLAMP

13432-14G00

1
Out of stock

14

JOINT

15614-26GA0

1
Out of stock

15

SCREW

15135-48G00

2
Out of stock

16

CLIP

13693-24F00

1
Out of stock

17

HOSE

13683-26GB0

1
Out of stock

18

CLIP

15135-14G00

2
Out of stock

19

CLAMP

15175-48G00

1
Out of stock

20

O-RING

15201-35F00

1
Out of stock

21

HOSE, FUEL

15810-26GB0

1
Out of stock

22

BOLT

07120-0612A

5
Out of stock
