Description

Price

1

HUB, FRONT WHEEL

54111-25D30

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER, FR HUB BEARING

54730-18400

$20.45

4

AXLE, FRONT

54711-45C01

$91.01

5

SPACER, FRONT AXLE RH

54740-18410

$20.45

6

BOX ASSY,SPEEDO This part replaces 54600-37301.

54600-37302

$78.56

7

DISC, FRONT BRAKE

59221-26G00

$322.02

8

BOLT (8X30)

09106-08131

$3.55

9

TIRE, FRONT (90/90-18M/C 51S)

55110-26G10

$127.81

10

TUBE, WHEEL INNER

55200-26G10

$47.90

11

PROTECTOR, WHEEL INNER TUBE

55261-26G00

$40.25

12

RIM, FR WHEEL (18X1.85)

55311-25D00

$196.78

13

SPOKE ASSY, FRONT

55320-18420

$73.55

14

BALANCER WHEEL (15G)

55411-26G00

$7.73

14

BALANCER WHEEL (30G)

55413-41F00

$7.50

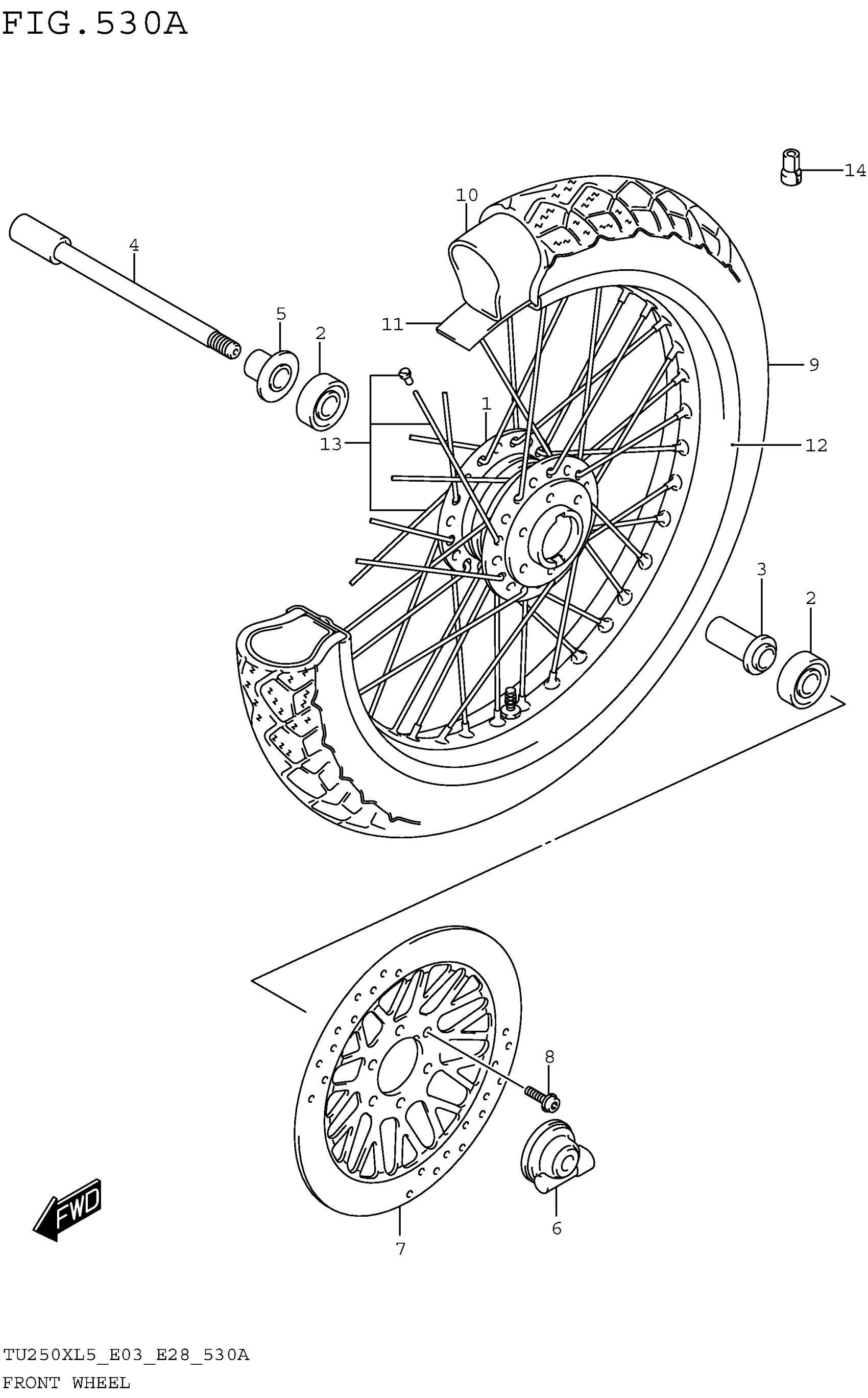

Suzuki TU250XL5 (2015) FRONT WHEEL Diagram
