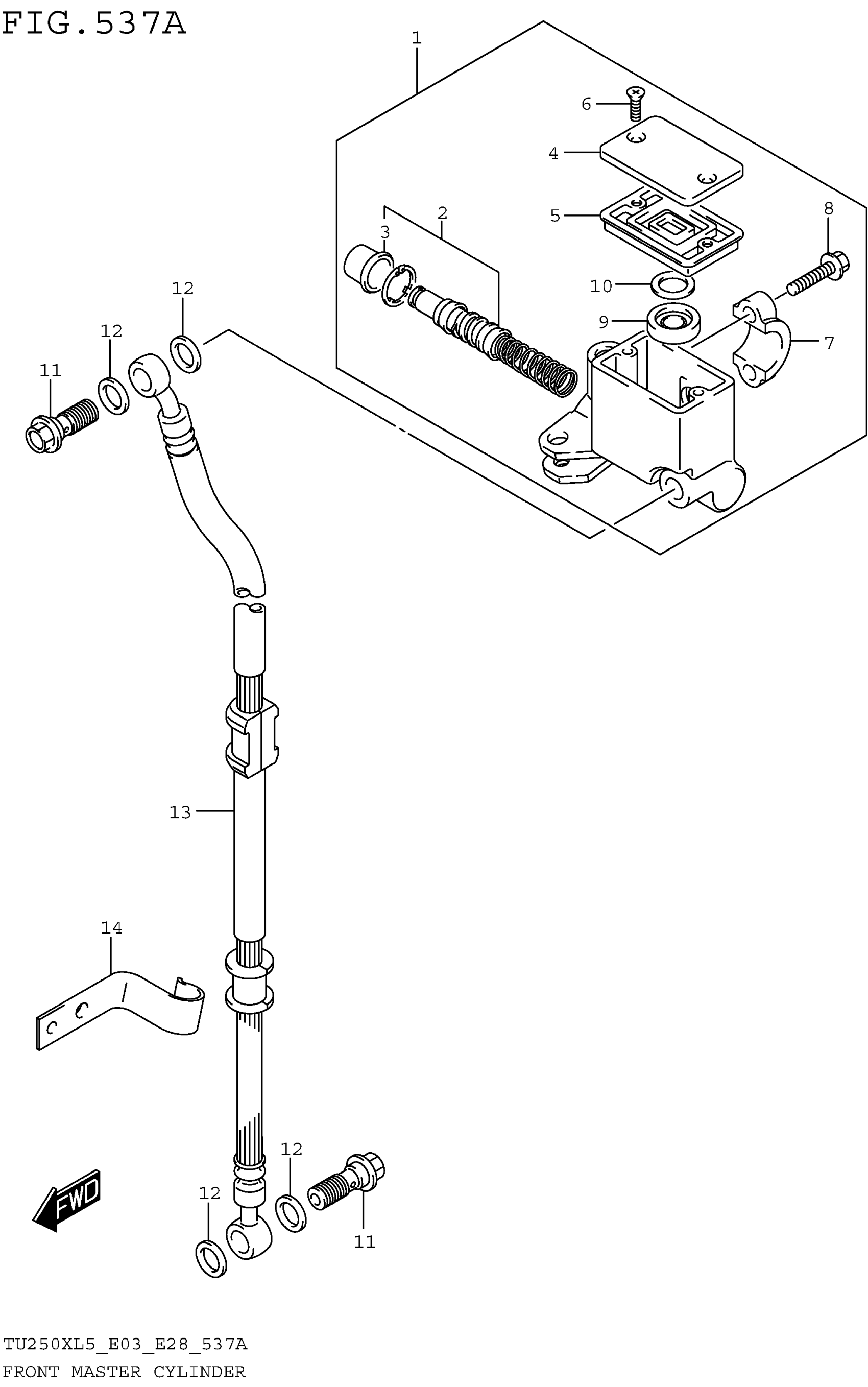

Suzuki TU250XL5 (2015) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-31D20

$337.88

2

PISTON/CUP SET

59600-04810

$43.23

3

BOOT

59666-44300

$5.54

4

CAP

69669-20C00

$21.87

5

DIAPHRAGM

59667-44B00

$9.36

6

SCREW

69689-49300

$1.81

7

.HOLDER

59671-36500

$12.01

8

BOLT HOLDER SET

59675-19C00

$4.53

9

SEPARATOR

59748-15400

$9.22

10

PLATE

59749-15400

$2.80

11

UNION

09360-10062

$5.99

12

WASHER (10X15X1.5)

09161-10009

$1.89

13

HOSE, FRONT BRAKE

59480-26G01

$138.98

14

CLAMP, FR BRAKE HOSE LOWER

59268-26G00

$10.35
