Description

Price

1

CALIPER ASSY, FRONT

59300-33D81-999

$628.42

2

PISTON SET This part replaces 59300-33831.

59301-20820

$35.39

3

SEAL SET, PISTON

59300-33841

$14.15

4

.SPRING, PAD LH

59315-33D00

$14.03

5

BOOT, AXLE

59112-44B00

$8.15

6

.INSULATOR, AXLE

59313-36500

$5.48

7

.GUIDE, PAD

59116-33D00

$7.51

8

BLEEDER

59121-18410

$7.99

9

CAP, BLEEDER PLUG

55156-66310

$4.73

10

.PIN, PAD

59141-44B01

$8.56

11

.CLIP, PAD PIN

69142-45000

$3.97

12

.CARRIER, CALIPER LH

59350-33D01

$123.97

13

PAD SET

59301-33840

$45.79

14

BOLT

01550-1025B

$4.45

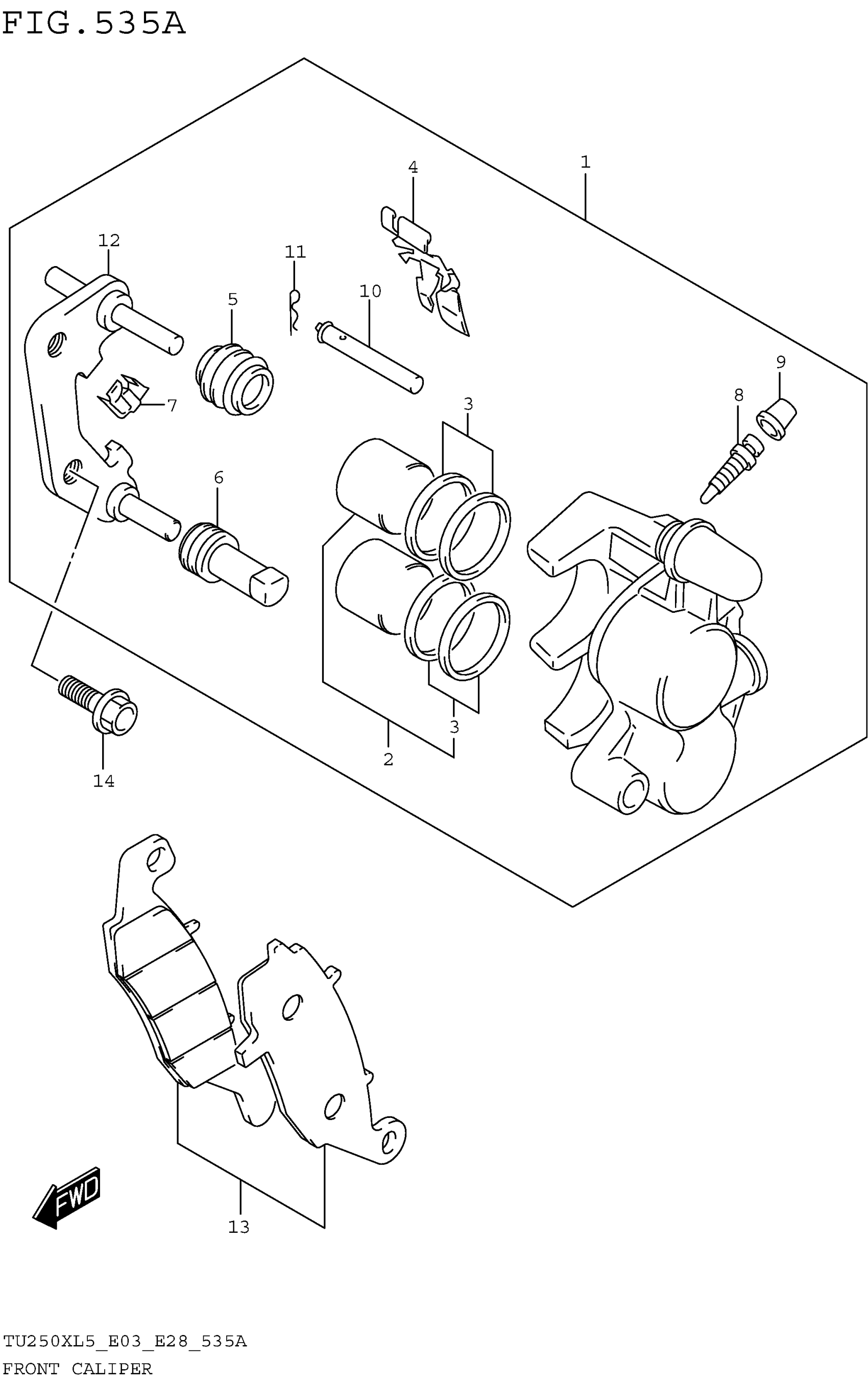

Suzuki TU250XL5 (2015) FRONT CALIPER Diagram
