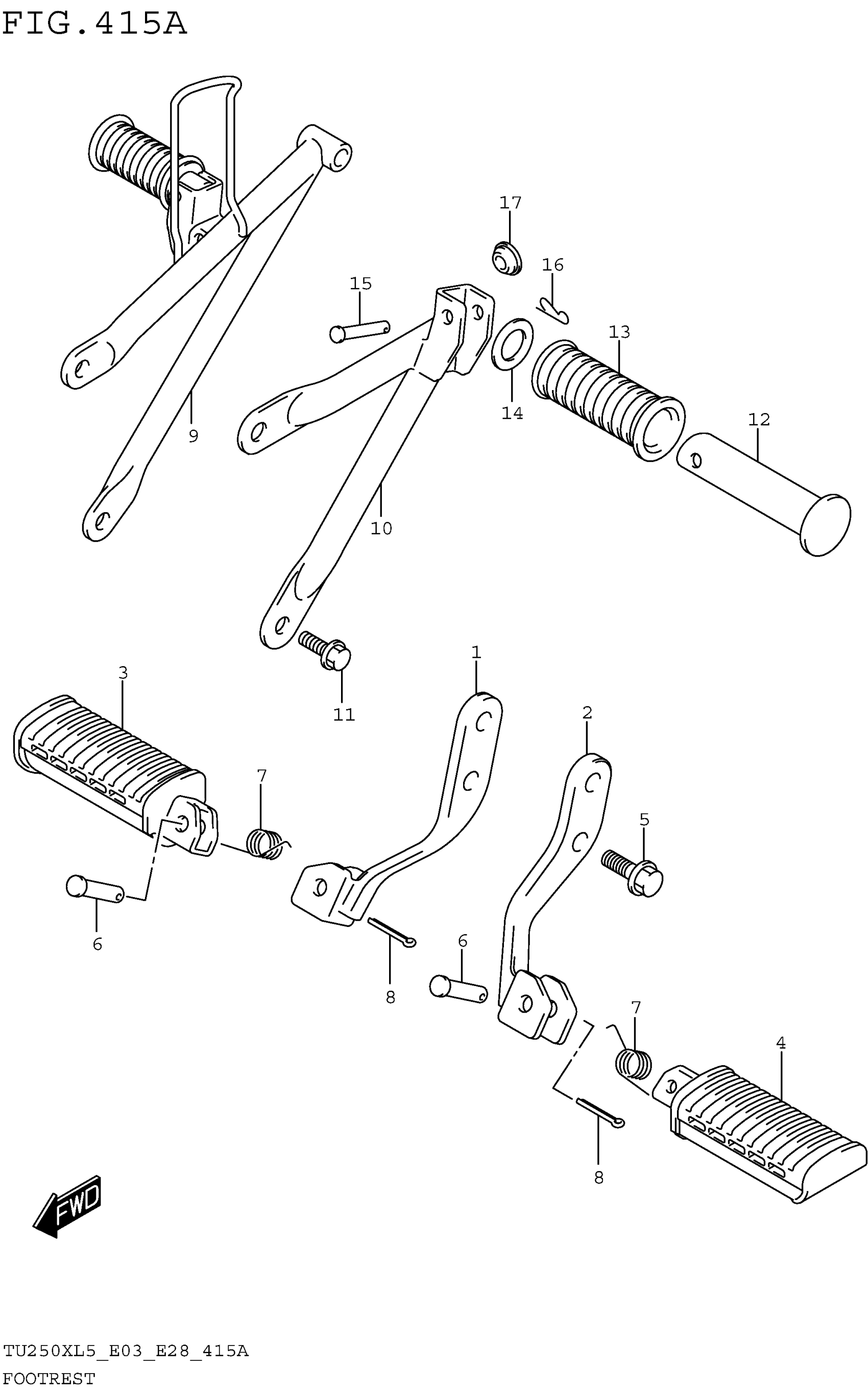

Suzuki TU250XL5 (2015) FOOTREST Diagram

#

Description
Price

1

BAR, FRONT FOOTREST RH

43510-26G00

$51.46

2

BAR, FRONT FOOTREST LH

43520-26G00

$51.46

3

RUBBER,PILLION This part replaces 43550-37301.

43550-37310

$25.06

4

FOOTREST LH This part replaces 43560-37301.

43560-37310

$31.54

5

BOLT

01550-1025B

$4.45

6

PIN

09200-08002

$2.02

7

SPRING

09448-14012

$2.82

8

COTTER PIN

04111-2020A

$1.25

9

TUBE, PILLION RH (BLACK)

43810-26G01-019

$169.10

10

TUBE, PILLION LH (BLACK)

43820-26G01-019

$124.32

11

BOLT

01550-1020B

$4.62

12

BAR, PILLION

43610-03001

$6.41

13

RUBBER, PILLION FOOTREST This part replaces 43612-33200.

43612-33210

$6.60

14

WASHER (19.5X32X2)

09160-19024

$3.22

15

PIN

09200-06033

$2.87

16

CLIP

09385-06012

$1.97

17

PLUG (OD:19) | LH

09250-15010

$2.15
