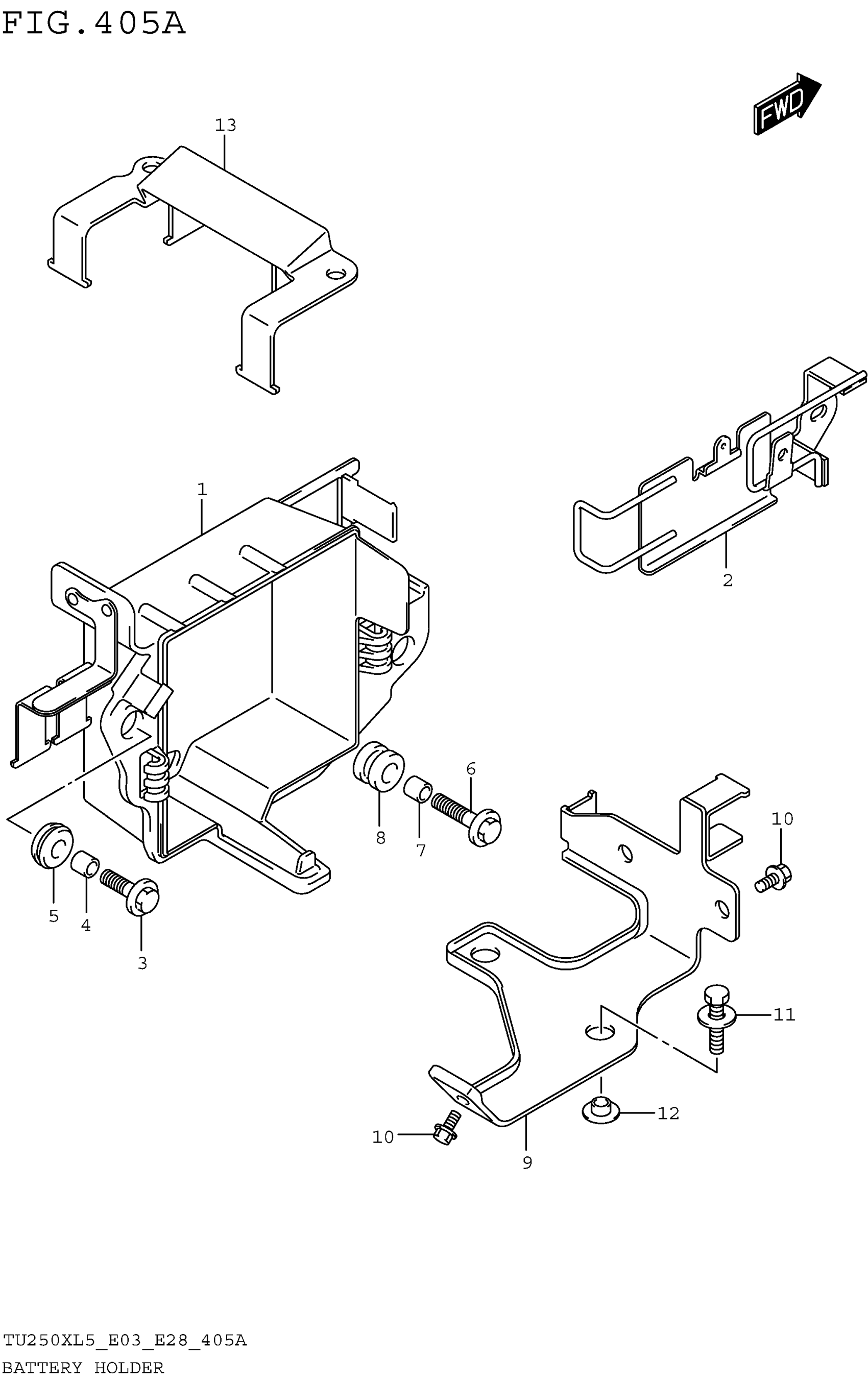

Suzuki TU250XL5 (2015) BATTERY HOLDER Diagram

#

Description

Price

1

HOLDER, BATTERY

41540-26G10

Unavailable

2

BAND, BATTERY

41560-26G10

Unavailable

3

BOLT (6X25)

09116-06150

$2.59

4

SPACER (6.5X9X9)

09180-06263

$2.03

5

CUSHION (8.5X23X9.5) This part replaces 09320-08047.

09320-08518

$2.60

6

BOLT (6X25)

09116-06150

$2.59

7

SPACER (6.5X9X9)

09180-06263

$2.03

8

CUSHION

09320-09016

$1.97

9

PLATE, PARTS NO.1

47410-26G00

Unavailable

10

BOLT

02162-0610B

Unavailable

11

BOLT

01550-0612B

$2.39

12

SPACER (6.5X10X2.5)

09180-06176

Unavailable

13

PLATE, PARTS NO.2

47420-26G00

Unavailable
