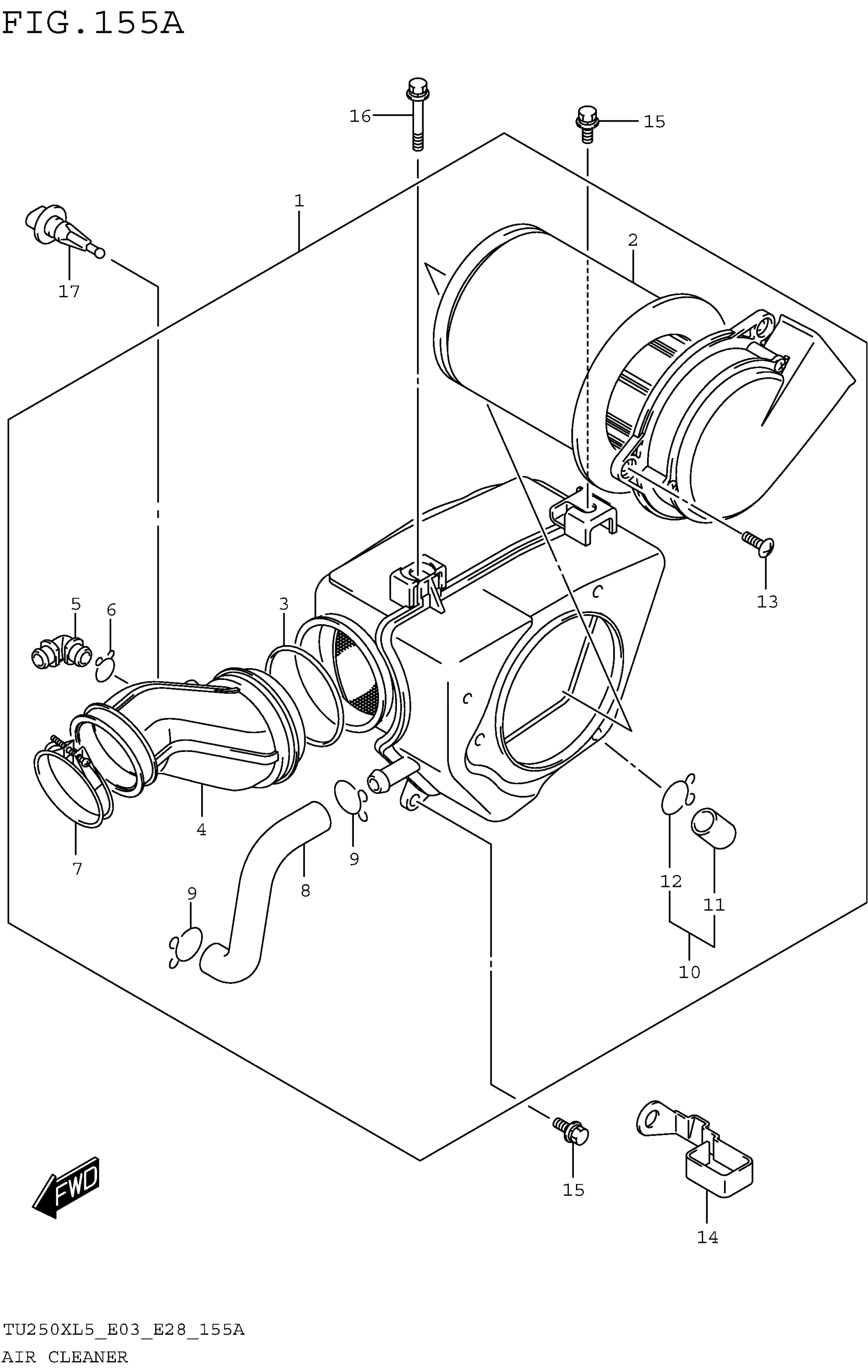

Suzuki TU250XL5 (2015) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR

13700-26GA3

Unavailable

2

FILTER

13780-25D10

$37.11

3

CLAMP, AIR CLEANER SIDE

13826-38300

$3.56

4

TUBE, OUTLET

13881-26GA0

Unavailable

5

JOINT

13858-14D20

$7.22

6

CLIP

09401-14101

$2.34

7

CLAMP

13826-26GA1

Unavailable

8

TUBE,BREATHER This part replaces 13853-38300.

13853-38301

$9.73

9

CLIP

09401-16401

$3.14

10

PLUG ASSY, DRAIN

13856-19B03

$10.95

11

.PLUG

13859-41B10

$7.38

12

CLIP

09401-14101

$2.34

13

SCREW

02142-0512A

$1.49

14

CLAMP

13827-38300

Unavailable

15

BOLT

01580-0616A

$2.42

16

BOLT

01580-0640A

Unavailable

17

SENSOR, INLET AIR TEMP

13650-52G00

$107.20
