Description

Price

1

HUB, FRONT WHEEL

54111-25D30

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$21.14

3

SPACER, FR HUB BEARING

54730-18400

$23.08

4

AXLE, FRONT

54711-45C01

Unavailable

5

SPACER, FRONT AXLE RH

54740-18410

$23.08

6

BOX ASSY,SPEEDO This part replaces 54600-37301.

54600-37302

$103.80

7

DISC, FRONT BRAKE

59221-26G00

$358.35

8

BOLT (8X30)

09106-08131

$4.53

9

TIRE, FRONT | 90/90-18M/C 51S

55110-26G10

$123.94

10

TUBE, WHEEL INNER

55200-26G10

$54.07

11

PROTECTOR, WHEEL INNER TUBE

55261-26G00

$45.43

12

RIM, FR WHEEL

55311-25D00

$218.98

13

SPOKE ASSY, FRONT

55320-18420

$83.02

14

BALANCER WHEEL (15G)

55411-26G00

$8.73

14

BALANCER WHEEL (30G)

55413-41F00

$9.95

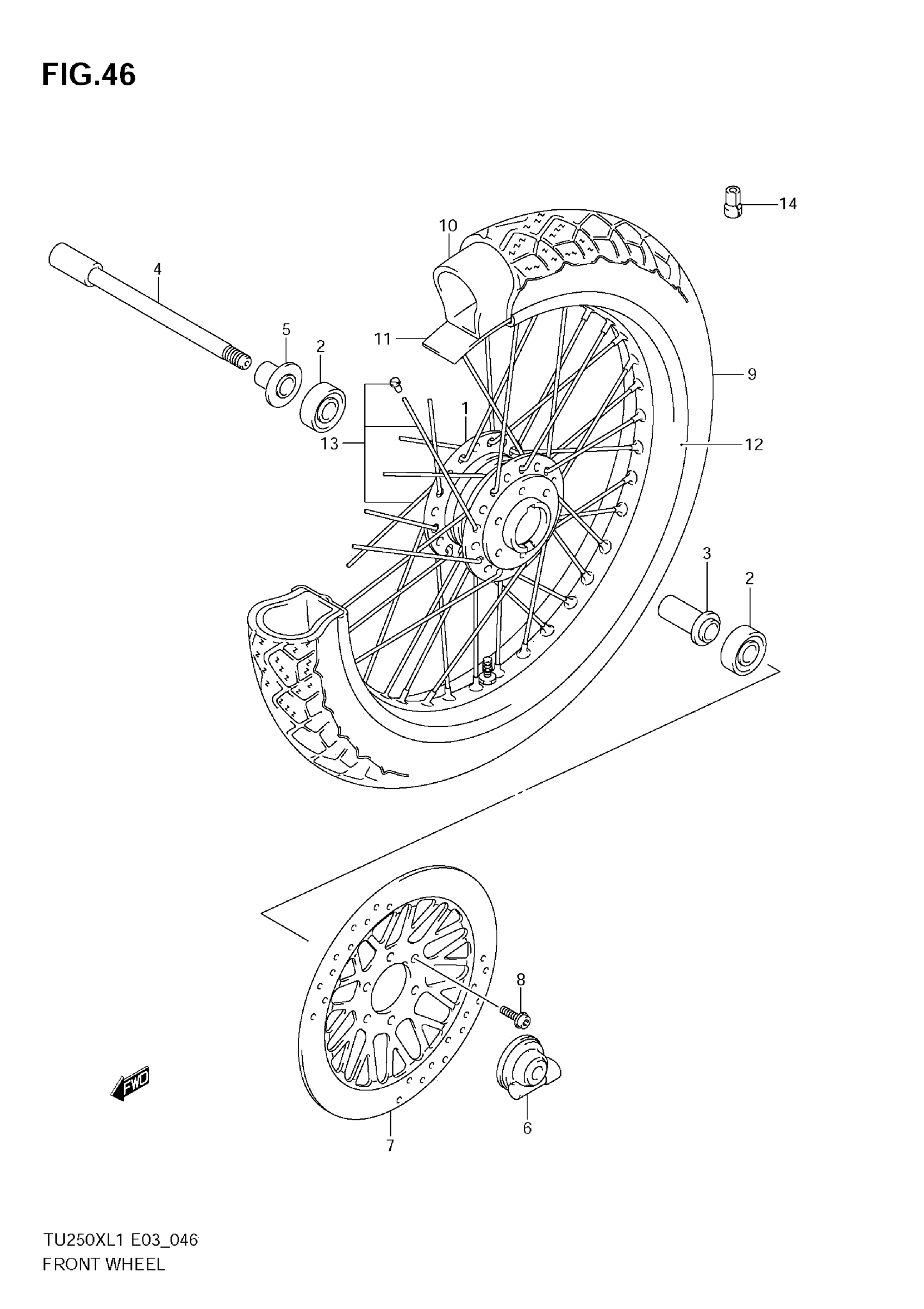

Suzuki TU250XL1 (2011) FRONT WHEEL Diagram
