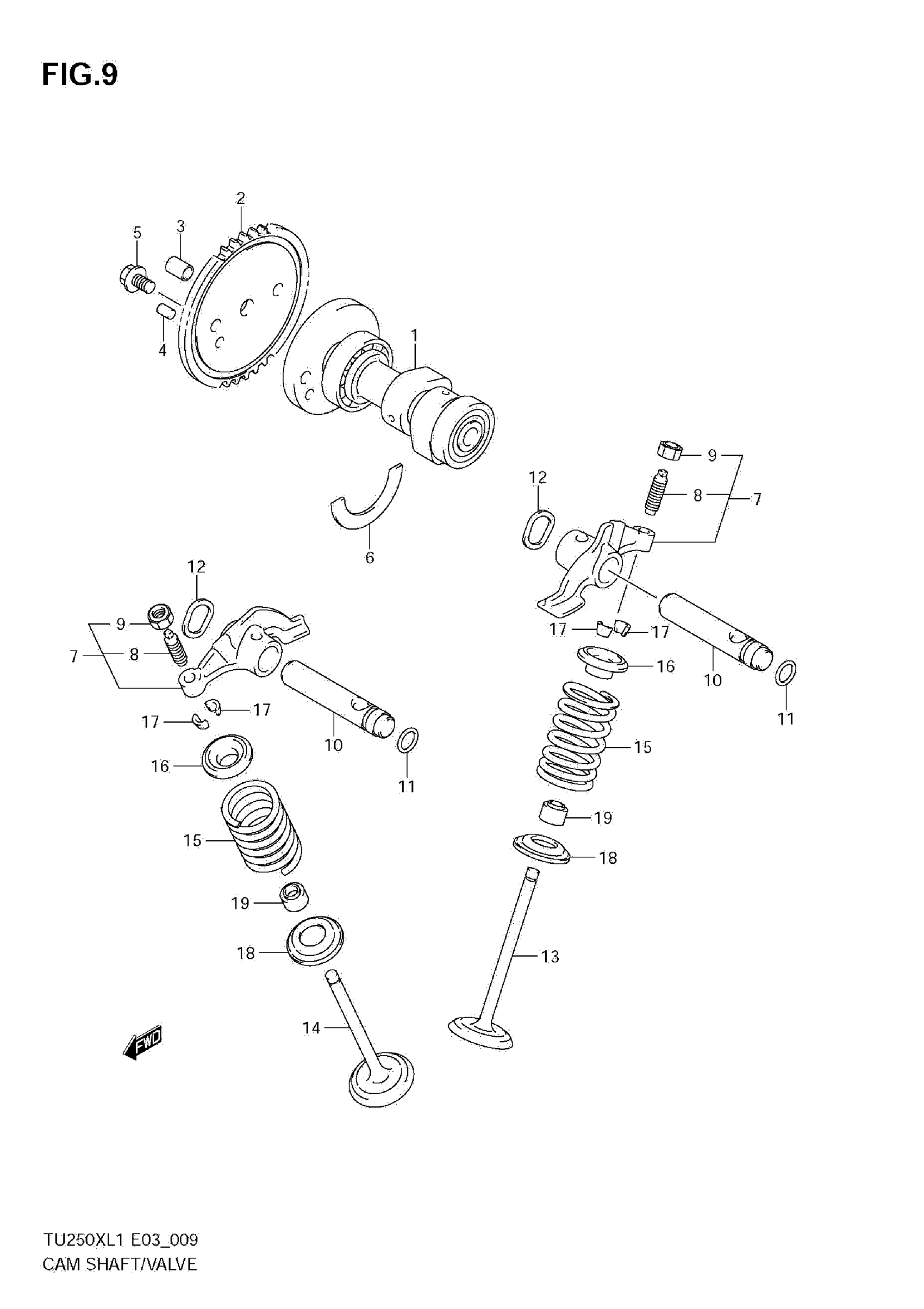

Suzuki TU250XL1 (2011) CAMSHAFT - VALVE Diagram

#

Description
Price

1

CAMSHAFT

12710-26G00

$237.83

2

SPROCKET, CAMSHAFT

12741-26G00

Unavailable

3

PIN

09206-08001

$1.77

4

PIN

09261-05005

$1.43

5

BOLT

07120-0612A

$2.50

6

C RING

09390-37001

Unavailable

7

ARM, VALVE ROCKER

12840-26G00

$61.78

8

SCREW, TAPPET ADJUSTING

12842-38A00

$6.95

9

.NUT, ADJUSTING SCREW

12843-32400

$2.80

10

SHAFT, VALVE ROCKER ARM

12861-26G01

Unavailable

11

.O RING (D:1.9,ID:8.6)

09280-09005

$3.33

12

WASHER

09164-12021

$2.01

13

VALVE, INTAKE

12911-26G00

Unavailable

14

VALVE, EXHAUST

12912-26G00

Unavailable

15

SPRING, VALVE

12922-05240

Unavailable

16

RETAINER, VALVE SPRING

12931-49201

$6.51

17

COTTER, VALVE

12932-24400

$1.98

18

SEAT, VALVE SPRING

12933-38200

$7.22

19

OIL SEAL (5.5X11X8.2)

09289-05015

$6.04
