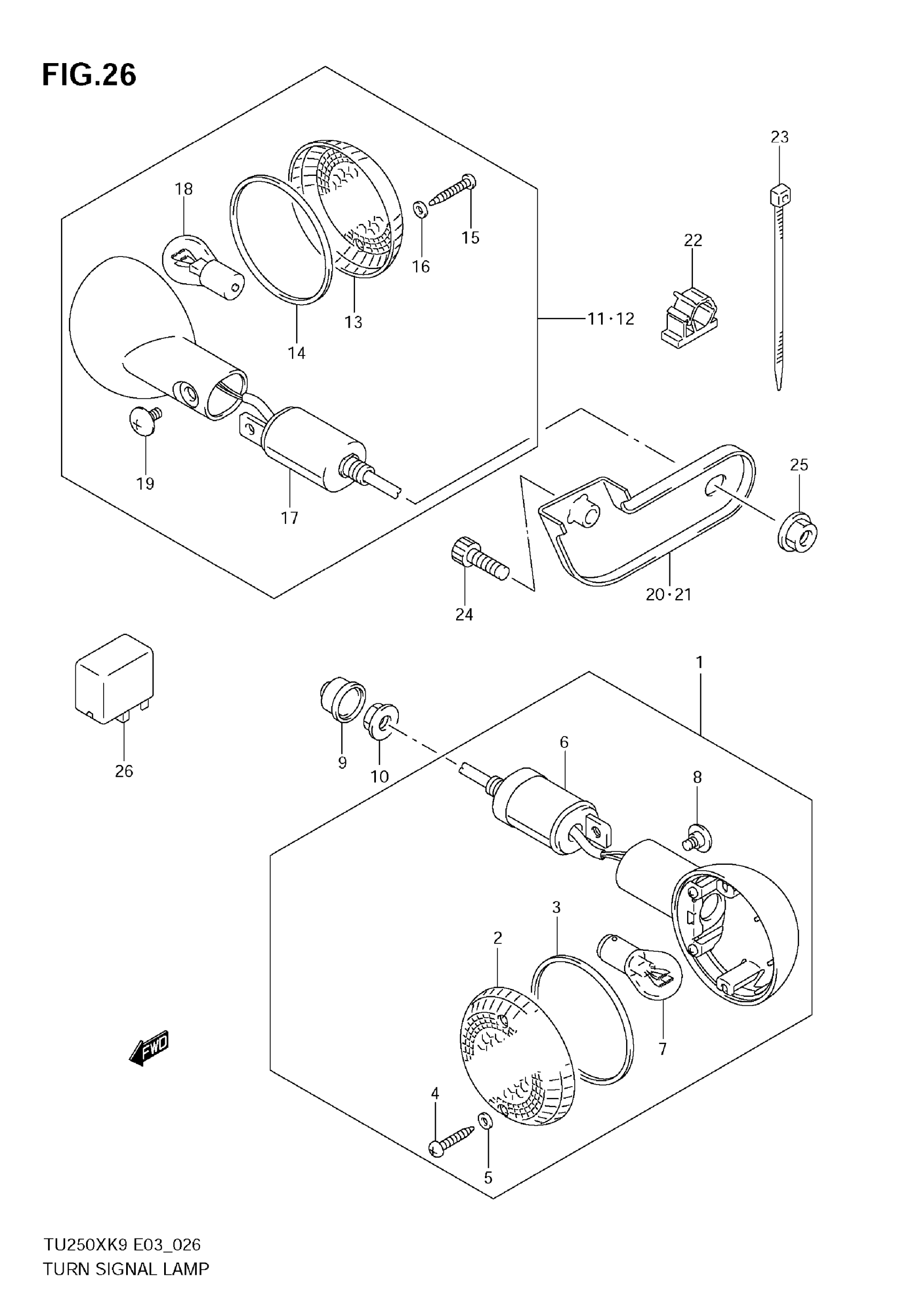

Suzuki TU250X (2009) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL | Includes Item(s) 2 - 8

35601-33D30

$142.63

2

LENS

35612-38A01

$13.81

3

GASKET

35613-38A00

$9.74

4

SCREW

03211-0425B

$2.70

5

GASKET

35627-43010

$2.28

6

STAY, TURNSIGNAL, FRONT

35619-45C10

$57.66

7

BULB (12V21W)

09471-12045

$3.27

8

SCREW

35623-38A01

$5.05

9

COVER, TURNSIGNAL LEAD

35698-01480

$5.10

10

NUT

08316-1010B

$2.66

11

LAMP ASSY, REAR TURNSIGNAL, R

35603-33D40

$330.66

12

LAMP ASSY, REAR TURNSIGNAL, L | Includes Item(s) 13 - 19

35604-33D40

$330.66

13

LENS

35652-38A21

$13.67

14

GASKET

35613-38A00

$9.74

15

SCREW

03211-0425A

Unavailable

16

GASKET

35627-43010

$2.28

17

STAY, TURNSIGNAL

35619-45C10

$57.66

18

BULB (12V21W)

09471-12045

$3.27

19

SCREW

35623-38A01

$5.05

20

BRACKET, REAR TURNSIGNAL, R

35621-26G20

$31.28

21

BRACKET, REAR TURNSIGNAL, L

35641-26G20

$31.28

22

CLAMP This part replaces 09403-07315.

09403-04310

$5.35

23

CLAMP (L:145)

09407-14407

$3.57

24

BOLT

01550-0625B

$2.42

25

NUT

08316-1010B

$2.66

26

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
