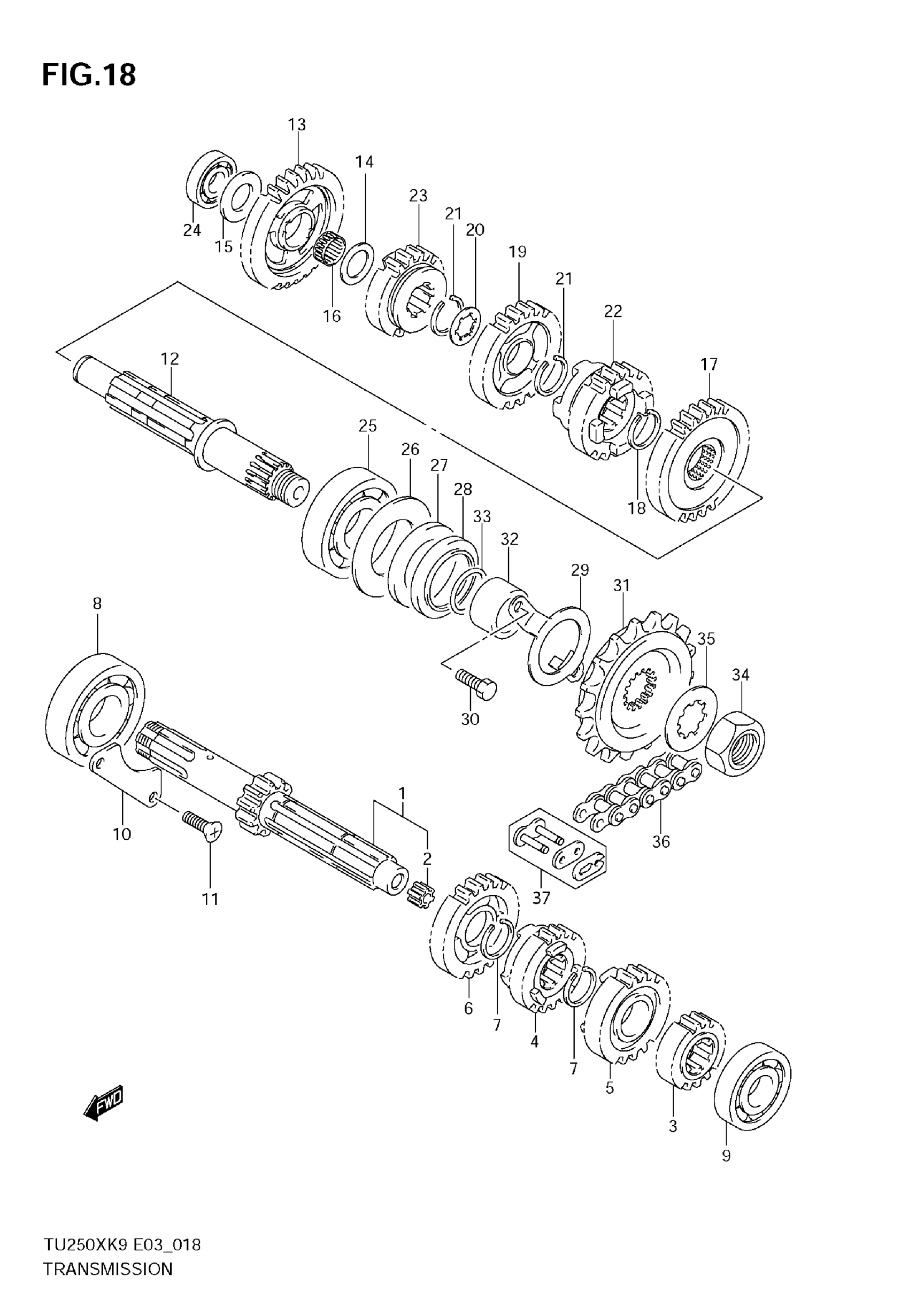

Suzuki TU250X (2009) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:11) | Includes Item(s) 2

24120-38203

Unavailable

2

BUSH

24125-38201

$6.38

3

GEAR, 2ND DRIVE (NT:16)

24221-32412

Unavailable

4

GEAR, 3RD DRIVE (NT:20)

24231-38220

Unavailable

5

GEAR, 4TH DRIVE (NT:21)

24241-32420

Unavailable

6

GEAR, 5TH DRIVE (NT:22)

24251-32420

Unavailable

7

CIRCLIP, 4TH/5TH DRIVE GEAR

09380-22006

$3.10

8

BEARING (22X56X16)

09262-22025

$57.67

9

BEARING (17X40X12)

09262-17046

$38.05

10

RETAINER, CNTR SHAFT BEARING

24741-38200

Unavailable

11

BOLT (6X12)

09125-06110

$2.12

12

SHAFT, DRIVE

24130-38301

Unavailable

13

GEAR, 1ST DRIVEN (NT:29)

24311-32401

Unavailable

14

SHIM (17X28X1)

09181-17195

$3.07

15

WASHER, 1ST DRIVEN

08211-17283

Unavailable

16

BEARING (17X21X9.8)

09263-17004

$12.03

17

GEAR, 2ND DRIVEN (NT:27)

24320-32411

Unavailable

18

CIRCLIP

09380-22006

$3.10

19

GEAR, 3RD DRIVE (NT:24)

24330-38202

Unavailable

20

WASHER, 3RD DRIVEN GEAR

09167-22011

$3.23

21

CIRCLIP

09380-22006

$3.10

22

GEAR, 4TH DRIVEN (NT:20)

24341-38220

Unavailable

23

GEAR, 5TH DRIVEN (NT:18)

24351-38201

Unavailable

24

BEARING, DRIVE SHAFT, R

08110-62030

$19.18

25

BEARING (22X56X16)

09262-22025

$57.67

26

WASHER (35X55X1)

09160-35007

$2.12

27

SEAL, DRIVE SHAFT (30X43X5)

09282-30004

$10.95

28

SEAL, DRIVE SHAFT (30X43X7)

09283-30041

$11.52

29

RETAINER, DRIVE SHAFT OIL SEAL

24751-38210

Unavailable

30

SCREW

01500-0612B

$2.47

31

SPROCKET,ENGINE This part replaces 27510-25D00.

27510-25D01

$50.85

32

SPACER, ENGINE SPROCKET

27531-38300

$35.57

33

O RING (D:2.5,ID:21)

09280-21008

$1.91

34

NUT, ENGINE SPROCKET

09140-18008

$6.00

35

WASHER, ENGINE SPROCKET

09167-22012

$1.54

36

CHAIN ASSY, DRIVE (DID520V0) This part replaces 27600-14A10-108.

27600-14A20-108

$228.37

37

.JOINT SET, CHAIN | OPT This part replaces 27620-14A10.

27620-14A20

$16.00
