Description

Price

1

BODY ASSY,THROT | Includes Item(s) 2 - 18 This part replaces 13400-26GA1.

13400-26GA4

$631.67

2

SCREW

13279-26GA0

Unavailable

3

O RING

13295-14G00

$3.37

4

SPRING

13271-26GA0

Unavailable

5

SCREW

13601-14G00

$3.03

6

SENSOR, MAP

15620-05H00

$273.45

7

.O RING This part replaces 15621-05H00.

15621-05H01

$9.05

8

PLATE, MAP SENSOR

15622-33H00

Unavailable

9

SCREW

02112-14087

$2.38

10

INJECTOR ASSY

15710-26GA0

$263.01

11

.O-RING

15721-21H00

$9.09

12

.RING,SEAL

15722-21H00

$11.25

13

PIPE, FUEL

13471-26GA0

$35.45

14

SCREW

13601-35F00

$7.50

15

SENSOR, THROTTLE This part replaces 13580-33H00.

13580-33H01

$259.07

16

SENSOR ASSY, THROTTLE SUB This part replaces 13580-40F30.

13580-40F31

$212.03

17

O RING

13575-40F00

$4.09

18

SCREW

13605-40F00

$3.71

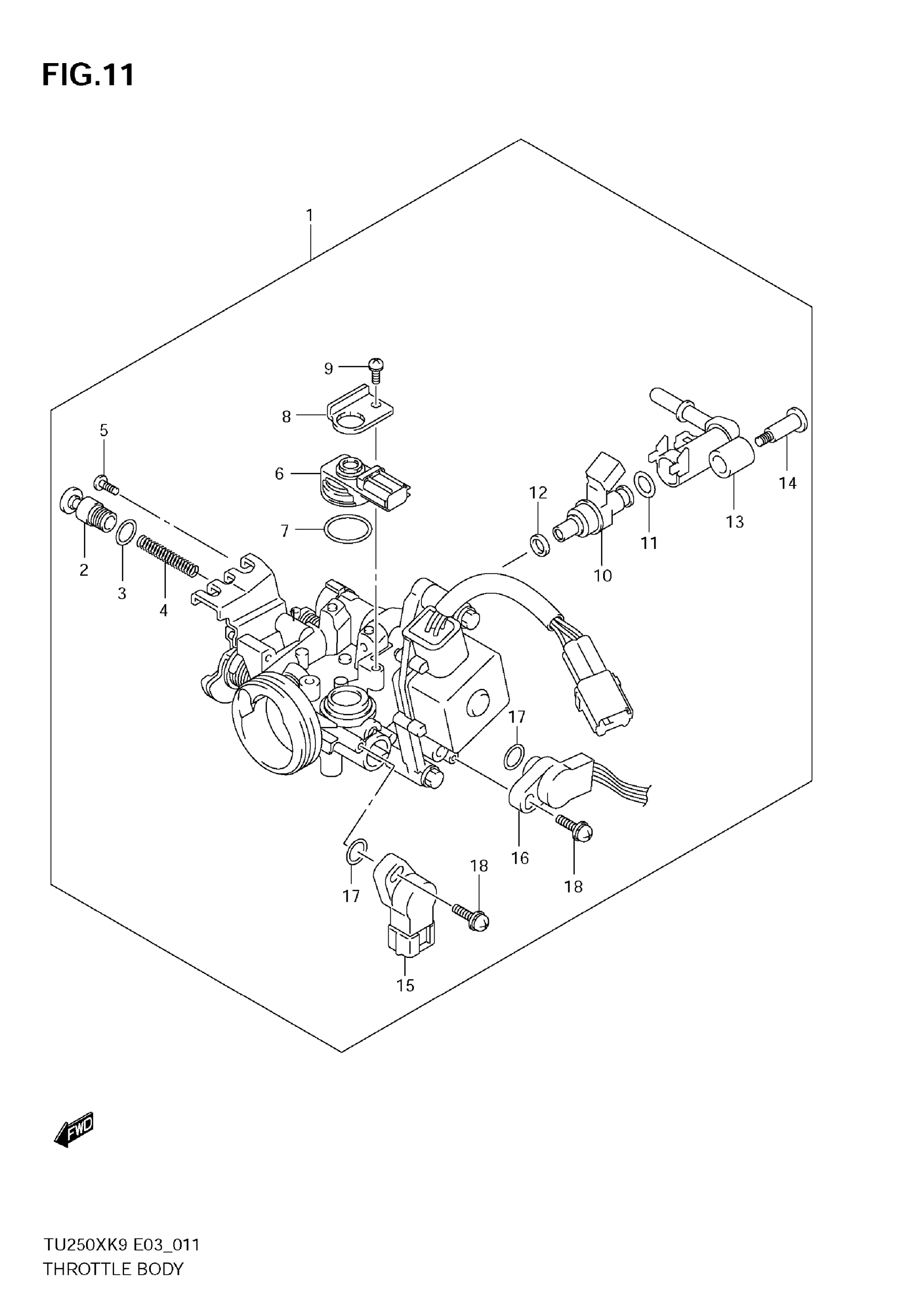

Suzuki TU250X (2009) THROTTLE BODY Diagram

BODY ASSY,THROT | Includes Item(s) 2 - 18 This part replaces 13400-26GA1.

SCREW

O RING

SPRING

SCREW

SENSOR, MAP

.O RING This part replaces 15621-05H00.

PLATE, MAP SENSOR

SCREW

INJECTOR ASSY

.O-RING

.RING,SEAL

PIPE, FUEL

SCREW

SENSOR, THROTTLE This part replaces 13580-33H00.

SENSOR ASSY, THROTTLE SUB This part replaces 13580-40F30.

O RING

SCREW
