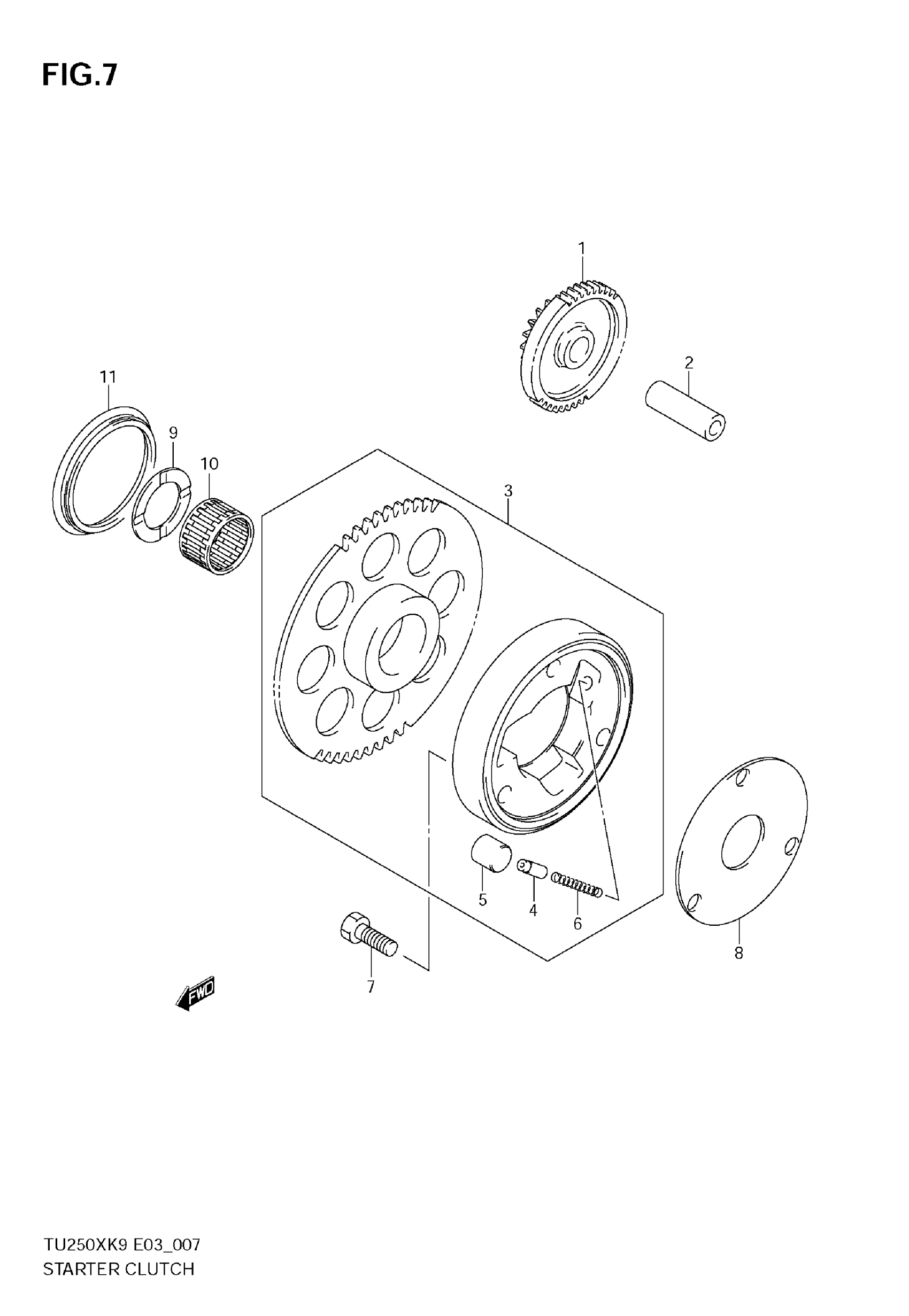

Suzuki TU250X (2009) STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, STARTER IDLE

12611-38301

$83.57

2

PIN

09206-13007

$16.00

3

CLUTCH SET, STARTER | Includes Item(s) 4 - 6 This part replaces 12600-38814.

12600-38815

$260.68

4

PUSH PIECE

12633-31000

$8.77

5

ROLLER

09261-14001

$3.91

6

SPRING

09440-04015

$2.22

7

BOLT (8X20)

09100-08299

$4.17

8

SHIM

12649-49300

$18.02

9

WASHER

09160-27005

$12.93

10

BEARING

09263-27004

$33.15

11

SEAL

09289-52002

$31.36
