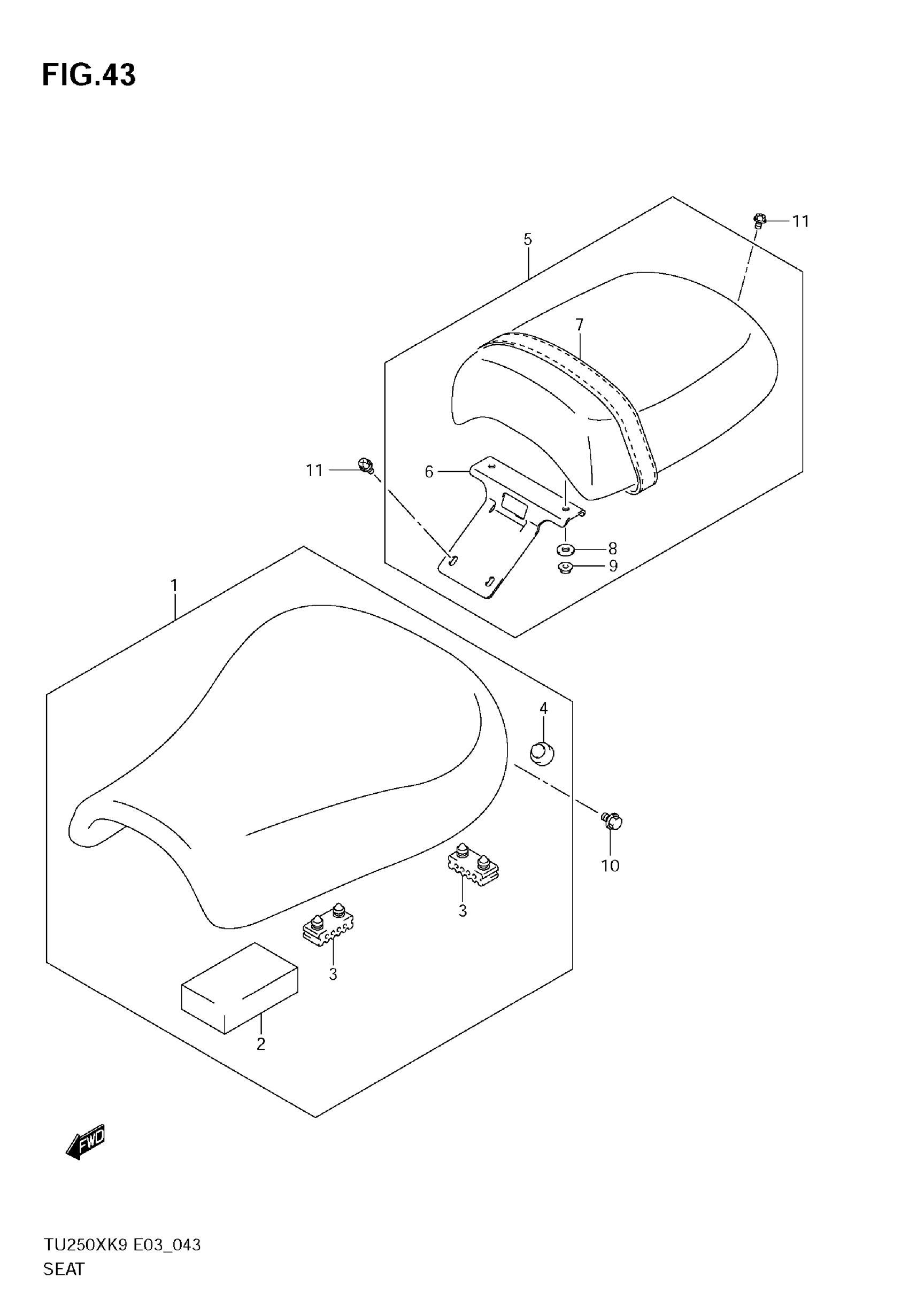

Suzuki TU250X (2009) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK) | Includes Item(s) 2 - 4

45100-26G10-58P

$331.25

2

CUSHION, TOOL

45149-26G00

Unavailable

3

CUSHION, FRONT

45149-31300

$3.56

4

CUSHION

09321-10012

$2.92

5

SEAT ASSY, PILLION | Includes Item(s) 6 - 9

45300-26G00-9MG

$283.88

6

PLATE, FRONT

45316-26G00

Unavailable

7

BAND, SEAT GRIP

45381-26G00

$12.65

8

WASHER

09160-06084

$1.78

9

NUT

08316-1006B

$2.50

10

BOLT

01550-0812B

$2.73

11

BOLT

02162-0612B

$2.19
