2009 Suzuki TU250X Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 2009 Suzuki TU250X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

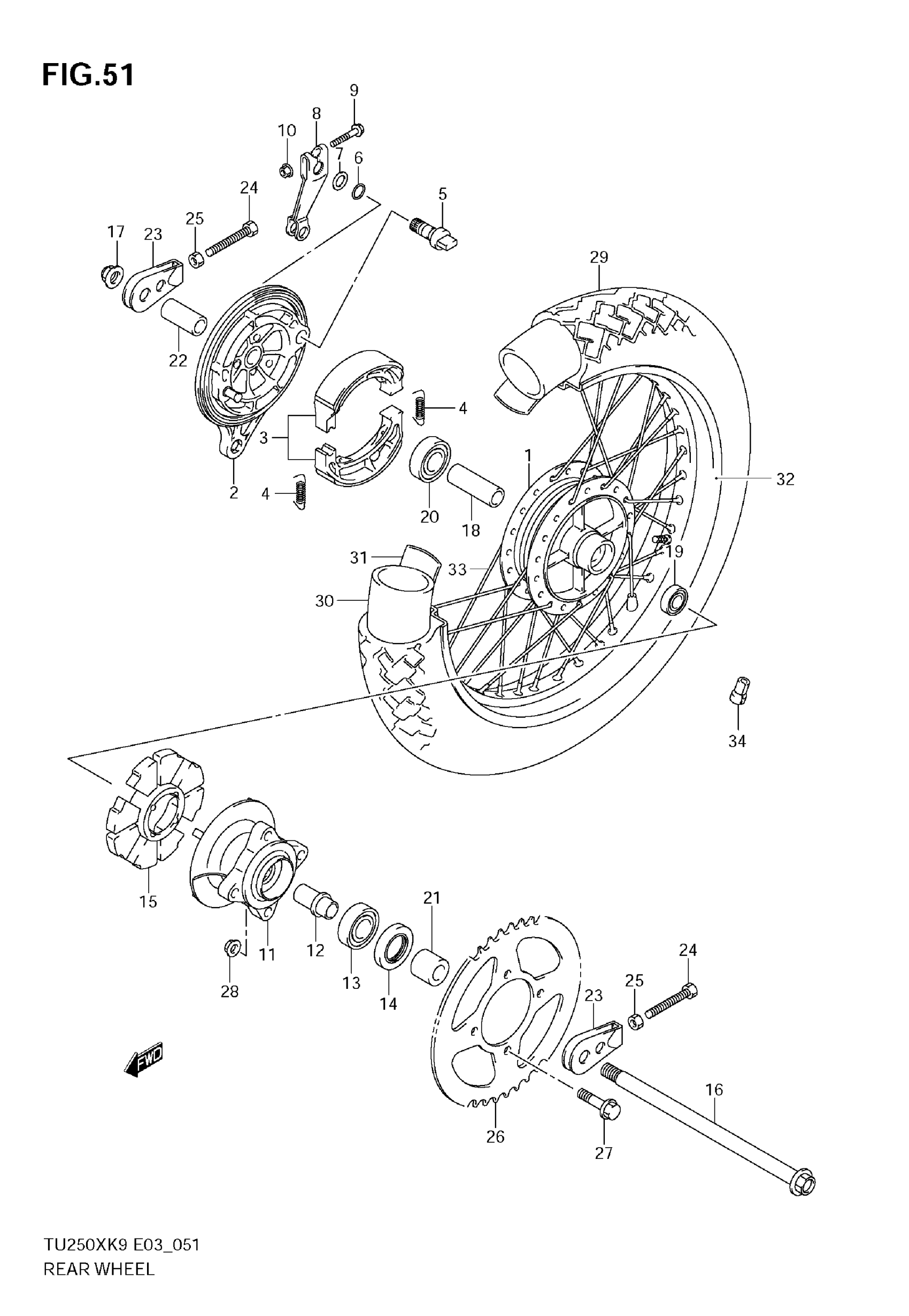

2009 Suzuki TU250X Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR WHEEL

64110-07005

1
Out of stock

2

PANEL, REAR BRAKE ANCHOR

64210-39115

1
Out of stock

3

SHOE, REAR BRAKE

54402-07810

1
Out of stock

4

SPRING This part replaces 09443-07001.

09443-07025

2
Out of stock

5

CAM, REAR BRAKE

54441-29305

1
Out of stock

6

O RING (D:2.5,ID:13.8)

09280-14011

1
Out of stock

7

WASHER (14.5X22X1.6)

09160-14055

1
Out of stock

8

LEVER, REAR BRAKE CAM

64451-38210

1
Out of stock

9

BOLT

01550-0635B

1
Out of stock

10

NUT

08316-1006B

1
Out of stock

11

DRUM, REAR SPROCKET MOUNTING

64610-38300

1
Out of stock

12

RETAINER, REAR SPROCKET DRUM

64733-38300

1
Out of stock

13

BEARING (20X47X14)

09262-20069

1
Out of stock

14

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

1
Out of stock

15

ABSORBER, REAR HUB SHOCK

64651-07001

1
Out of stock

16

AXLE, REAR

64711-08320

1
Out of stock

17

NUT

08319-3114A

1
Out of stock

18

SPACER (15.3X21.7X63)

09180-15011

1
Out of stock

19

BEARING

08143-62027

1
Out of stock

20

BEARING

08153-63027

1

$27.55

In stock

21

SPACER (15X28X24.80)

09180-15061

1
Out of stock

22

SPACER (15X22X46.80)

09180-15060

1
Out of stock

23

ADJUSTER, CHAIN

61410-38310

2
Out of stock

24

BOLT (8X50)

09100-08303

2
Out of stock

25

NUT

08310-0008B

2
Out of stock

26

SPROCKET, REAR (NT:43-520)

64511-25D00

1
Out of stock

27

BOLT (10X40)

09103-10044

4
Out of stock

28

NUT

08319-3110A

4
Out of stock

29

1

$222.10

In stock

30

1

$53.93

In stock

31

PROTECTOR, WHEEL INNER TUBE

55261-26G00

1
Out of stock

32

RIM, REAR WHEEL (18M/CXMT2.50)

65311-26G00

1
Out of stock

33

SPOKE SET, REAR WHEEL

65320-26G00

1
Out of stock

34

BALANCER WHEEL (15G)

55411-26G00

1
Out of stock

34

BALANCER WHEEL (30G)

55413-41F00

1
Out of stock
