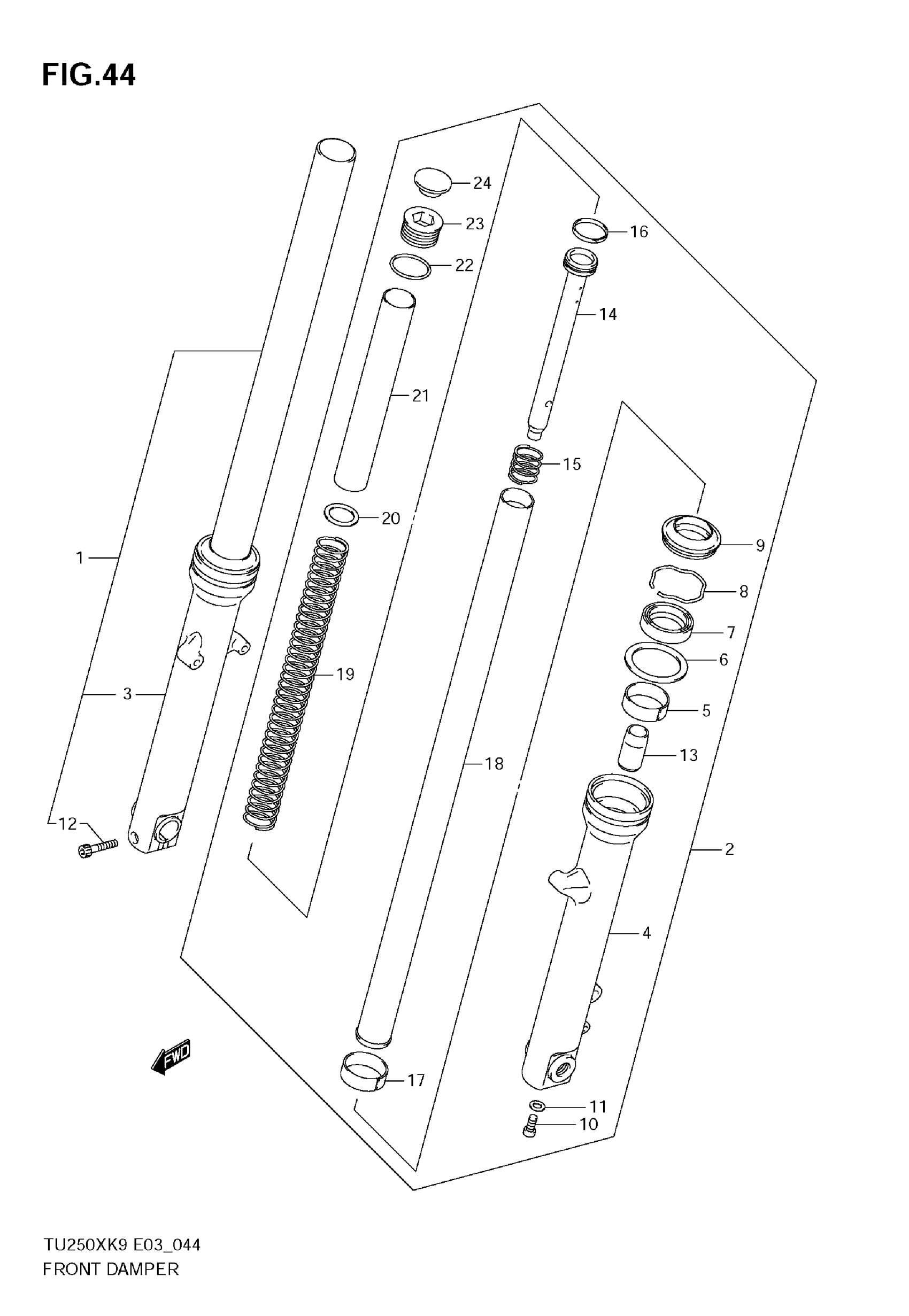

Suzuki TU250X (2009) FRONT DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-26G10

$995.95

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 24

51104-26G10

Unavailable

3

TUBE, OUTER RH

51130-26G10

Unavailable

4

TUBE, OUTER LH

51140-26G10

Unavailable

5

BUSH, GUIDE

51152-25D00

$16.59

6

SPACER, SEAL This part replaces 51158-03B30.

51168-38A00

$6.32

7

SEAL, OIL

51153-03B30

$16.95

8

RING, STOPPER

51156-03B30

$6.95

9

SEAL, DUST

51173-25D00

$17.70

10

BOLT

51147-48130

$3.97

11

GASKET

51148-36011

$3.26

12

BOLT | RH

07130-08357

$2.92

13

PIECE, OIL LOCK

51195-25D00

$26.50

14

CYLINDER

51146-25D00

Unavailable

15

SPRING, REBOUND

51177-25D00

$9.23

16

RING, PISTON

51196-25D00

$10.35

17

BUSH, SLIDE

51121-03B30

$16.65

18

TUBE, INNER

51110-25D00

$467.95

19

SPRING, MAIN

51171-26G00

$19.03

20

JOINT, SPRING

51192-25D00

Unavailable

21

SPACER, SPRING

51176-25D00

$13.15

22

O RING

51117-25D00

$4.20

23

BOLT, FORK

51189-25D00

Unavailable

24

CAP, FORK

51351-03D00

$9.25
