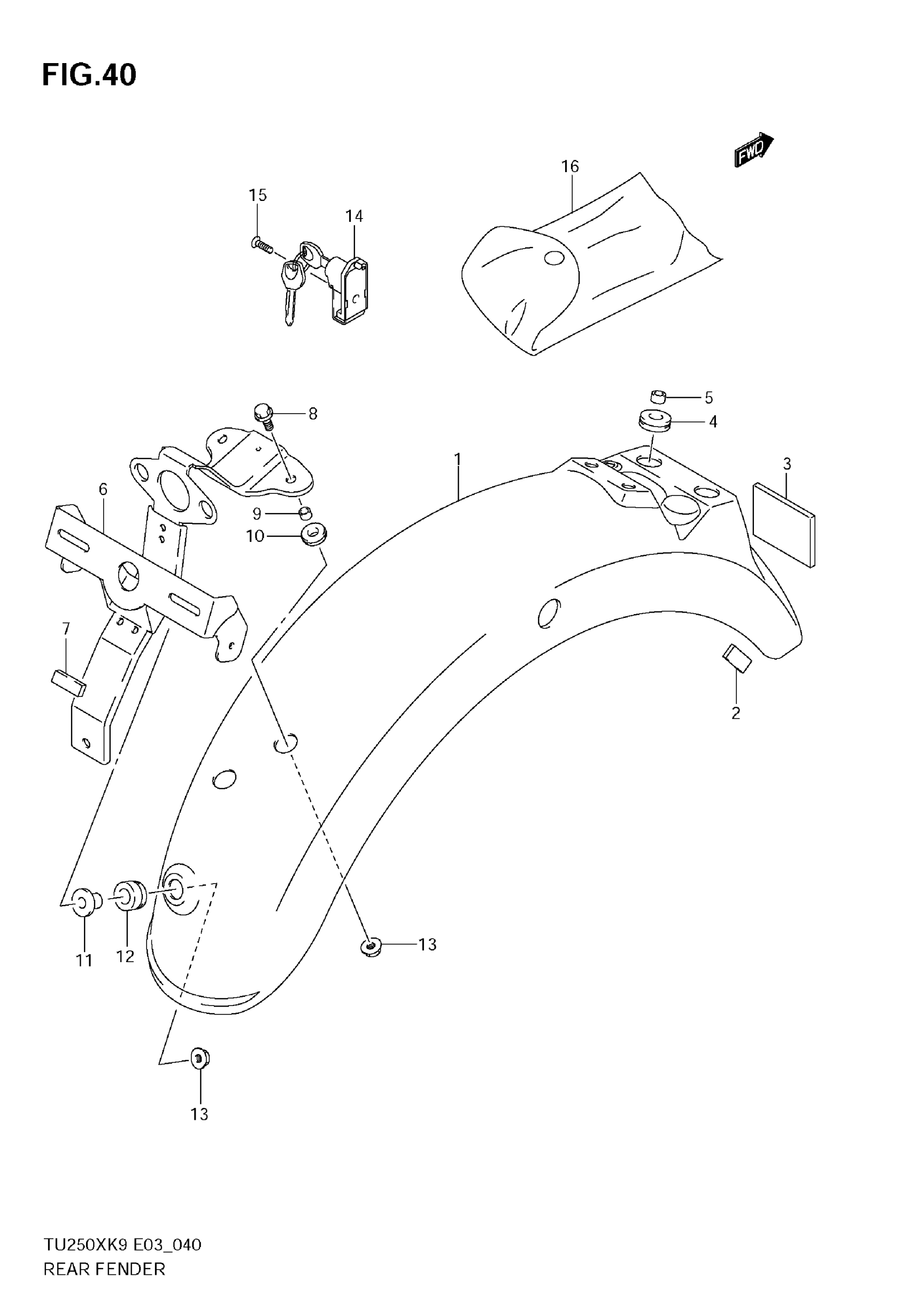

Suzuki TU250X (2009) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR (RED)

63111-26G30-YHL

Unavailable

2

CUSHION

63191-26G00

Unavailable

3

CUSHION, REAR

63192-26G00

$9.75

4

CUSHION This part replaces 09320-13005.

09320-13025

$2.72

5

SPACER

09180-08199

$2.12

6

BRACE, TAIL LAMP (BLACK)

63210-26G10-291

$139.45

7

CUSHION

63211-26G00

$9.75

8

BOLT

01550-0625B

$2.42

9

SPACER, UPPER

09180-06079

$2.42

10

CUSHION, UPPER

09320-10053

Unavailable

11

SPACER, LOWER

09180-06319

$3.85

12

CUSHION

09320-10501

$6.23

13

NUT

08316-1006B

$2.50

14

LOCK SET, HELMET

95700-42820

Unavailable

15

SCREW

02122-0620B

$1.93

16

TOOL SET

09800-26820

$72.00
