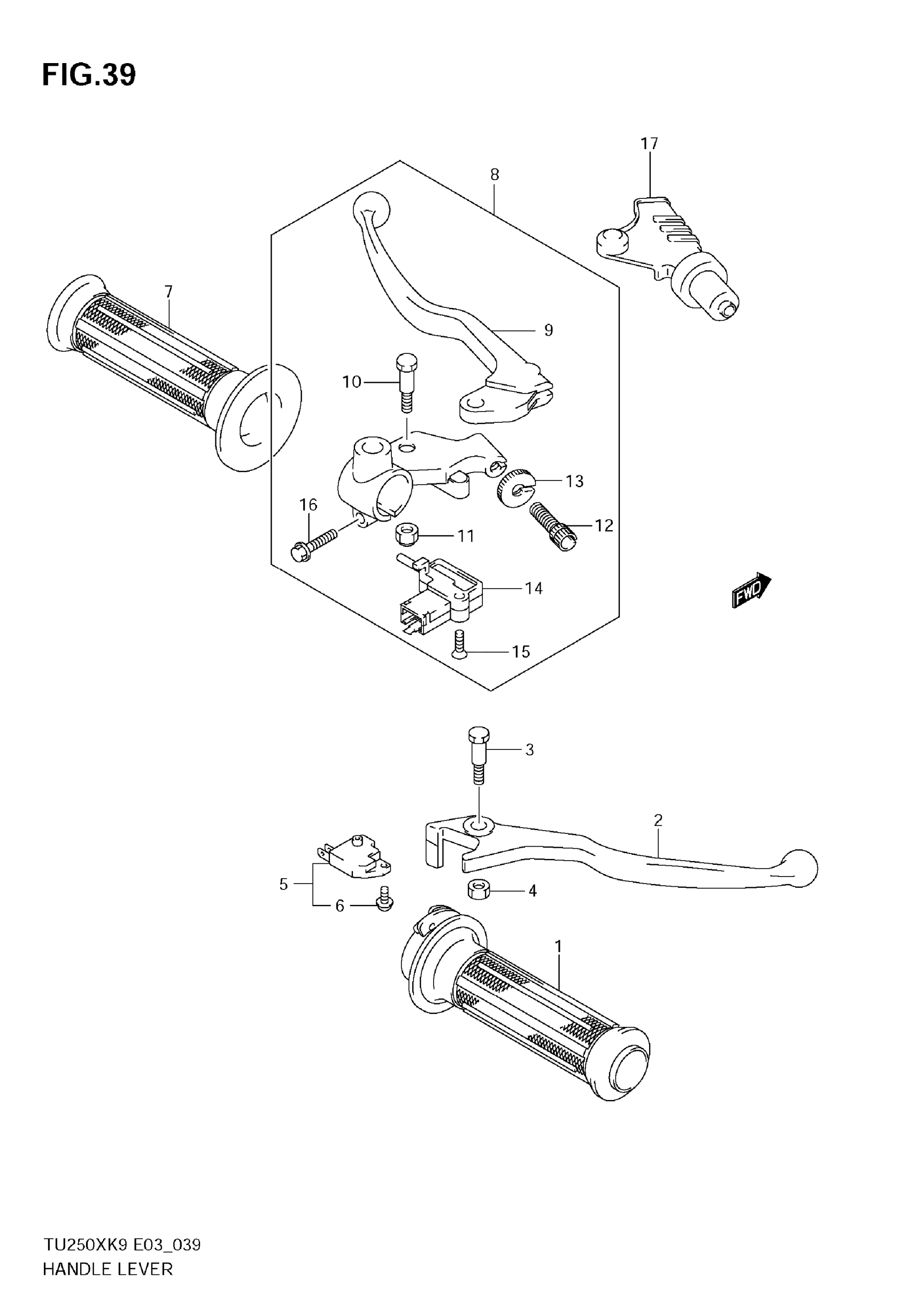

Suzuki TU250X (2009) HANDLE LEVER Diagram

#

Description
Price

1

GRIP, THROTTLE (BLACK) This part replaces 57110-29G01-291.

57110-29G02-291

$29.93

2

LEVER, FRONT BRAKE

57421-14F00

$19.53

3

BOLT,BRAKE LEVER PIVOT

57431-04F00

$6.28

4

NUT,LEVER PIVOT

57433-09F00

$3.56

5

SWITCH ASSY,FR BRAKE | Includes Item(s) 6 This part replaces 57460-17C11.

57460-14J02

$38.46

6

SCREW

57465-17C00

$2.19

7

GRIP, LH (BLACK) This part replaces 57211-22D01-291.

57211-22D02-291

$14.55

8

LEVER ASSY, CLUTCH | Includes Item(s) 9 - 16 This part replaces 57500-25D00.

57500-25D04

$38.08

9

LEVER ASSY, CLUTCH This part replaces 57621-33E01.

57621-40F00

$18.77

10

..BOLT,LEVER PIVOT This part replaces 57431-45C01.

57431-21D11

$9.76

11

NUT, PIVOT

08319-2106B

$2.32

12

.ADJUSTER, WIRE This part replaces 57441-45C00.

57441-45C01

$9.05

13

.NUT, LOCK This part replaces 57442-45C00.

57442-45C01

$8.41

14

.SWITCH,CLUTCH

57560-05A00

$12.15

15

SCREW

02122-0320A

$2.14

16

..BOLT

01547-0620B

$2.45

17

COVER,CLUTCH LEVER This part replaces 57661-33E00.

57661-33E01

$8.24
