Description

Price

1

GASKET SET | OPT; Includes Item(s) 2 - 12

11401-26812

$115.77

2

GASKET, CYLINDER HEAD | NOT SHOWN

11141-26G00

$19.20

3

GASKET, CYLINDER | NOT SHOWN

11241-26G00

$10.30

4

GASKET, CLUTCH COVER | NOT SHOWN

11482-38212

$27.42

5

GASKET, MAGNETO COVER | NOT SHOWN

11483-37D11

$25.42

6

.GASKET, TENSIONER ADJUSTER | NOT SHOWN

12837-32410

$2.74

7

.GASKET,EXHAUST PIPE | NOT SHOWN

14181-22D01

$10.11

8

O-RING (D:2.4,ID:15.8) | NOT SHOWN

09280-15007

$1.70

9

.O RING (D:3,ID:29.5) | NOT SHOWN

09280-30001

$1.72

10

O-RING (D:2.4,ID:39.7) | NOT SHOWN This part replaces 09280-40010.

09280-40020

$2.91

11

.O RING (D:2.4,ID:73) | NOT SHOWN

09280-72001

$4.94

12

O RING (D:2.4,ID:85.0) | NOT SHOWN

09280-82001

$5.18

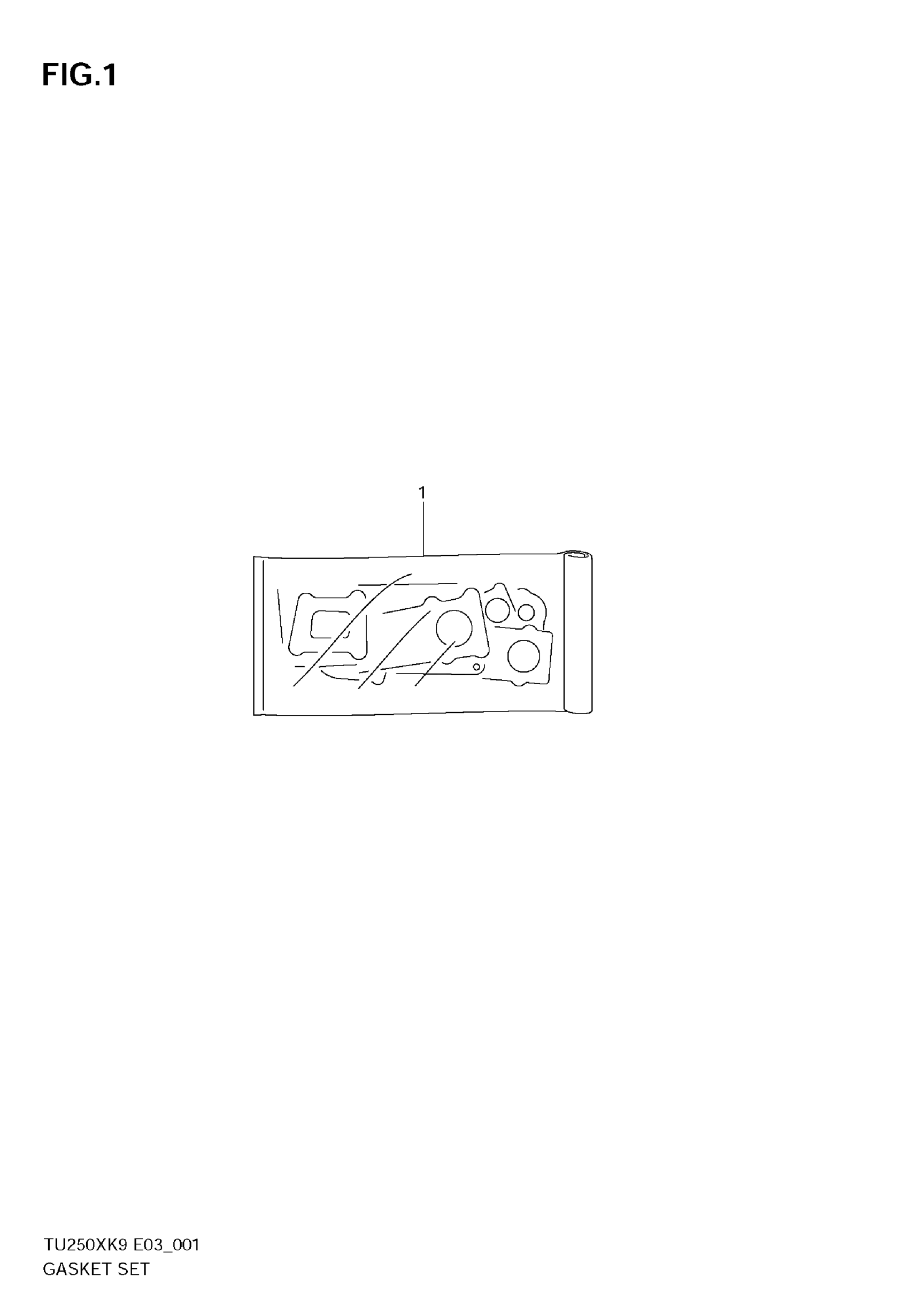

Suzuki TU250X (2009) GASKET SET Diagram
