2009 Suzuki TU250X Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2009 Suzuki TU250X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

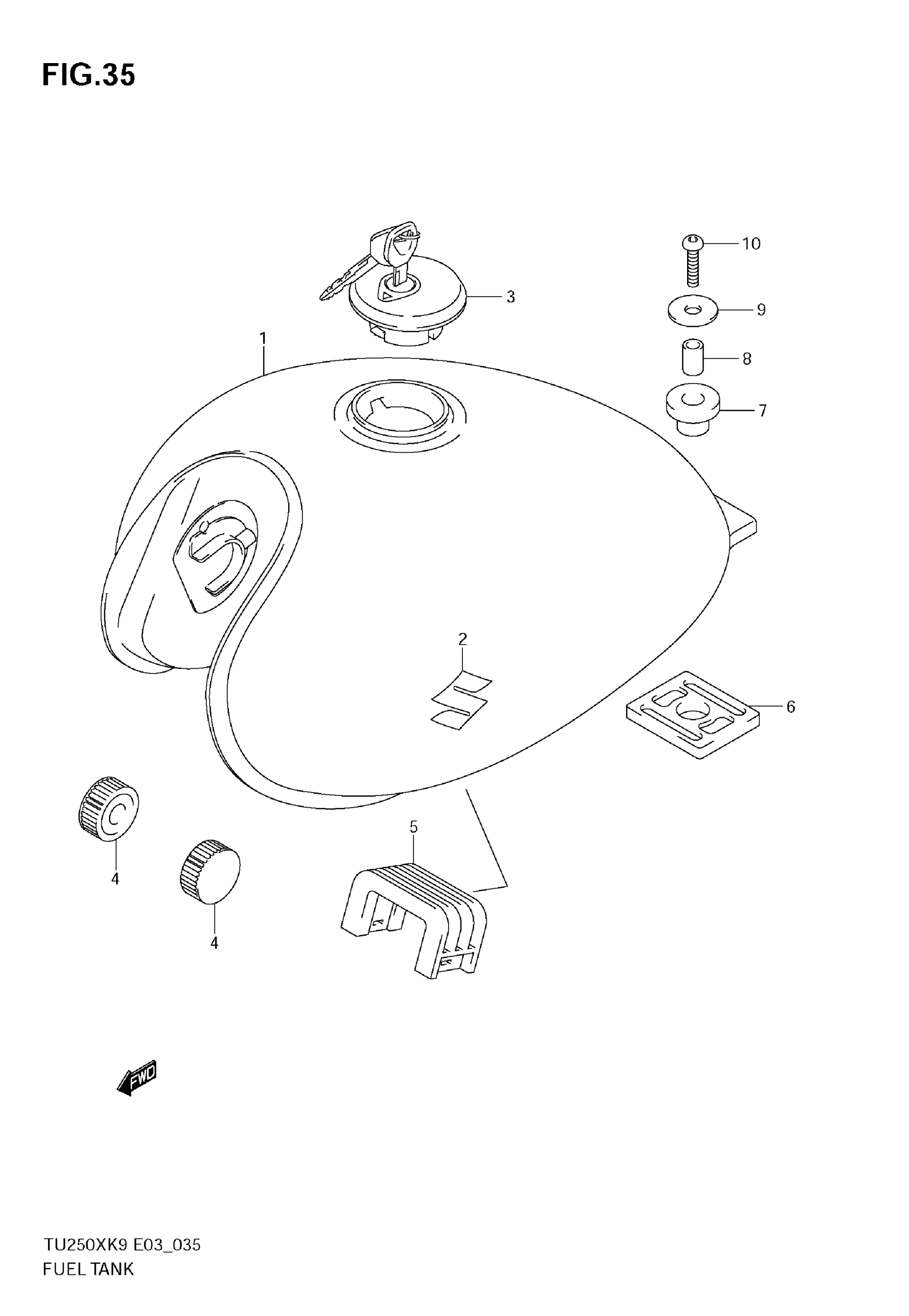

2009 Suzuki TU250X Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK ASSY,FUEL( This part replaces 44100-26G40-YHL.

44100-26G41-YHL

1
Out of stock

2

EMBLEM

68111-18G20

2
Out of stock

3

CAP SET,FUEL TA This part replaces 44200-24840.

44200-24842

1
Out of stock

4

CUSHION, FRONT

09329-10016

2

$3.00

In stock

5

CUSHION, CENTER

44541-38200

1
Out of stock

6

CUSHION,FUEL TANK RR LWR This part replaces 44542-41F00.

44542-41F01

1
Out of stock

7

CUSHION,FUEL TANK RR UPR This part replaces 44541-41F01.

44541-41F02

1
Out of stock

8

SPACER (8.2X12.5X23.5) This part replaces 09180-08057.

09180-08227

1
Out of stock

9

WASHER

09160-08146

1

$2.80

In stock

10

BOLT

07120-0835B

1
Out of stock
