2009 Suzuki TU250X AIR Cleaner Diagram

← All diagrams

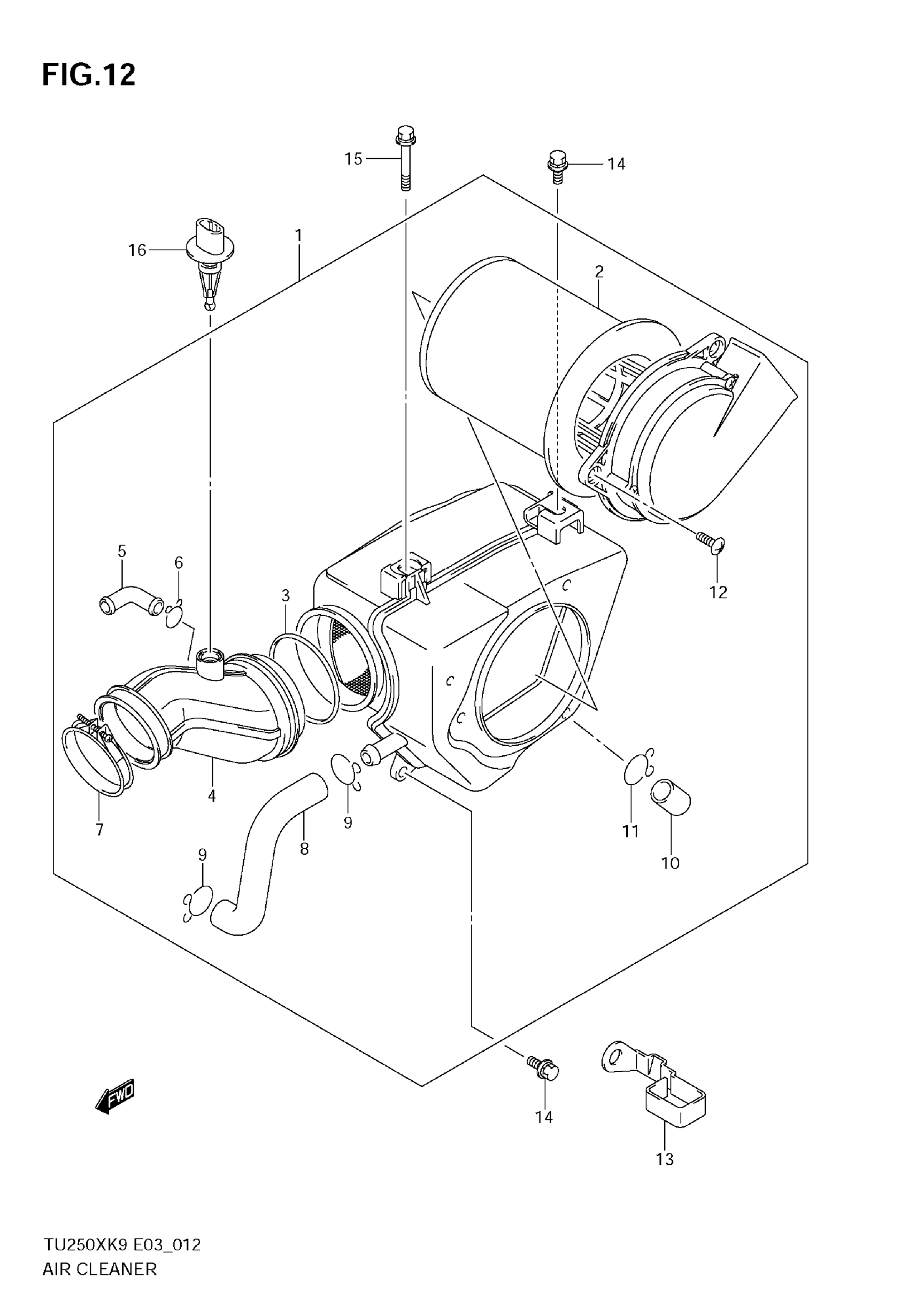

Find the part on the AIR Cleaner diagram for your 2009 Suzuki TU250X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki TU250X AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 12

13700-26GA1

1
Out of stock

2

FILTER

13780-38301

1
Out of stock

3

CLAMP

13826-38300

1
Out of stock

4

TUBE, OUTLET

13881-26GA0

1
Out of stock

5

JOINT

13858-14D20

1

$7.41

In stock

6

CLIP

09401-14101

1
Out of stock

7

CLAMP

13826-26GA0

1
Out of stock

8

TUBE,BREATHER This part replaces 13853-38300.

13853-38301

1
Out of stock

9

CLIP

09401-16401

2
Out of stock

10

.PLUG

13859-41B10

1
Out of stock

11

CLIP

09401-14101

1
Out of stock

12

SCREW

02142-0512A

3
Out of stock

13

CLAMP

13827-38300

1
Out of stock

14

BOLT

01580-0616A

2
Out of stock

15

BOLT

01580-0640A

—
Out of stock

16

SENSOR, INLET AIR TEMP

13650-52G00

1
Out of stock
