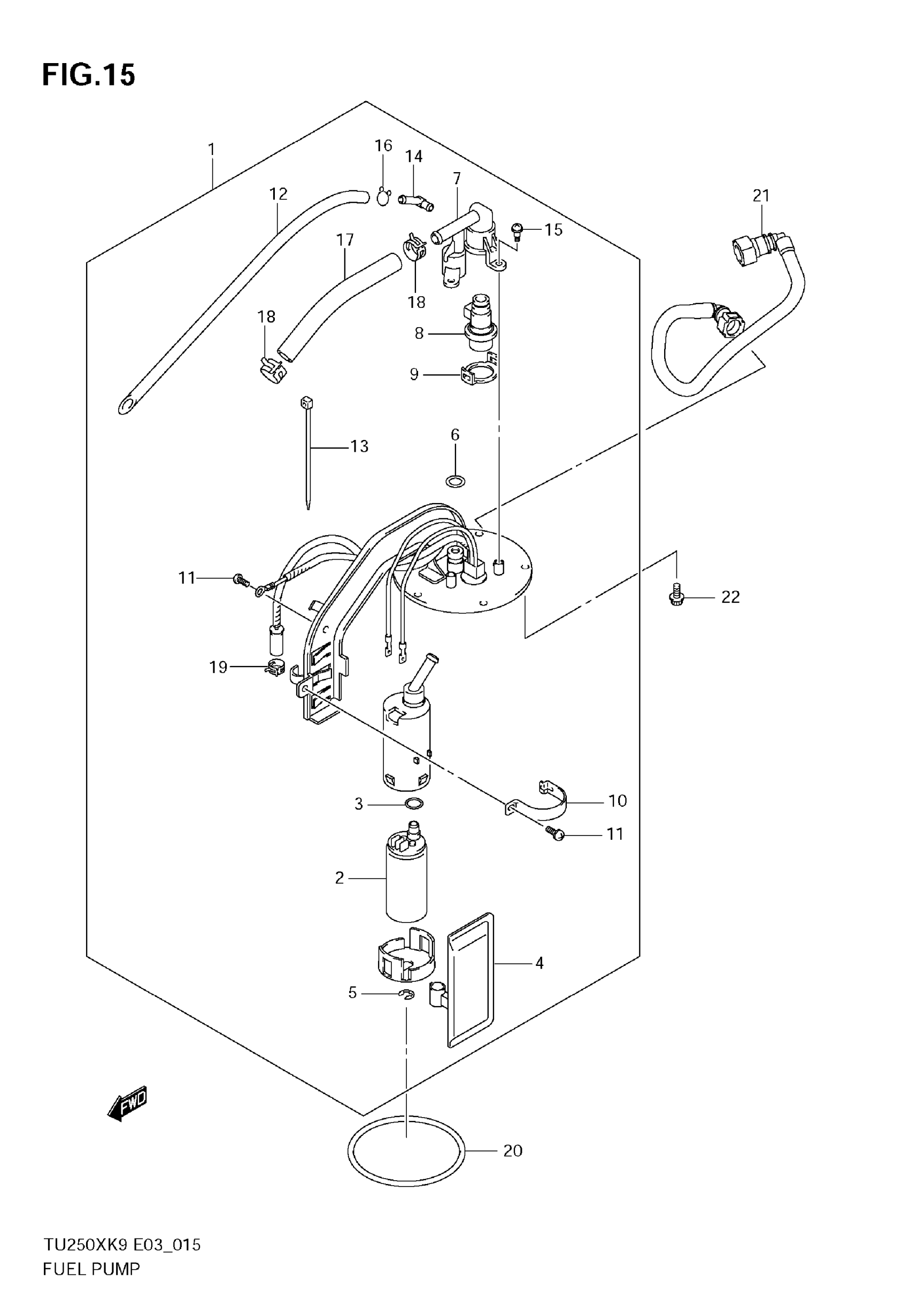

Suzuki TU250X (2009) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY, FUEL | Includes Item(s) 2 - 19

15100-26GA0

$807.93

2

PUMP, FUEL

15110-26GA0

$458.10

3

O RING

13295-26GA0

$4.68

4

FILTER

15420-26GA0

$46.32

5

PLATE

15119-14G00

$5.38

6

O RING

15125-48G00

$14.27

7

ADAPTER

15131-26GA0

$76.63

8

REGULATOR, PRESSURE

15610-48G00

$201.52

9

CLIP

15613-48G00

Unavailable

10

BAND

15426-26GA0

Unavailable

11

SCREW

15116-48G00

$5.58

12

HOSE

13683-26GA0

$11.60

13

CLAMP

13432-14G00

Unavailable

14

JOINT

15614-26GA0

Unavailable

15

SCREW

15135-48G00

Unavailable

16

CLIP

13693-24F00

$3.22

17

HOSE

13683-26GB0

Unavailable

18

CLIP

15135-14G00

Unavailable

19

CLAMP

15175-48G00

Unavailable

20

O-RING

15201-35F00

$27.60

21

HOSE, FUEL This part replaces 15810-26GA0.

15810-26GB0

$103.45

22

BOLT

07120-0612A

$2.50
