Description

Price

1

CALIPER ASSY, FRONT | Includes Item(s) 2 - 12 This part replaces 59300-33D90-999.

59300-33D81-999

$570.20

2

PISTON SET This part replaces 59300-33831.

59301-20820

$37.59

3

SEAL SET, PISTON

59300-33841

$15.45

4

.SPRING, PAD LH

59315-33D00

$14.90

5

BOOT, AXLE

59112-44B00

$8.91

6

.INSULATOR, AXLE

59313-36500

$5.99

7

.GUIDE, PAD

59116-33D00

$7.97

8

BLEEDER

59121-18410

$8.73

9

CAP, BLEEDER PLUG

55156-66310

$5.17

10

.PIN, PAD

59141-44B01

$9.09

11

.CLIP, PAD PIN

69142-45000

$4.34

12

.CARRIER, CALIPER LH

59350-33D01

$109.85

13

PAD SET

59301-33840

$50.03

14

BOLT

01550-1025B

$4.10

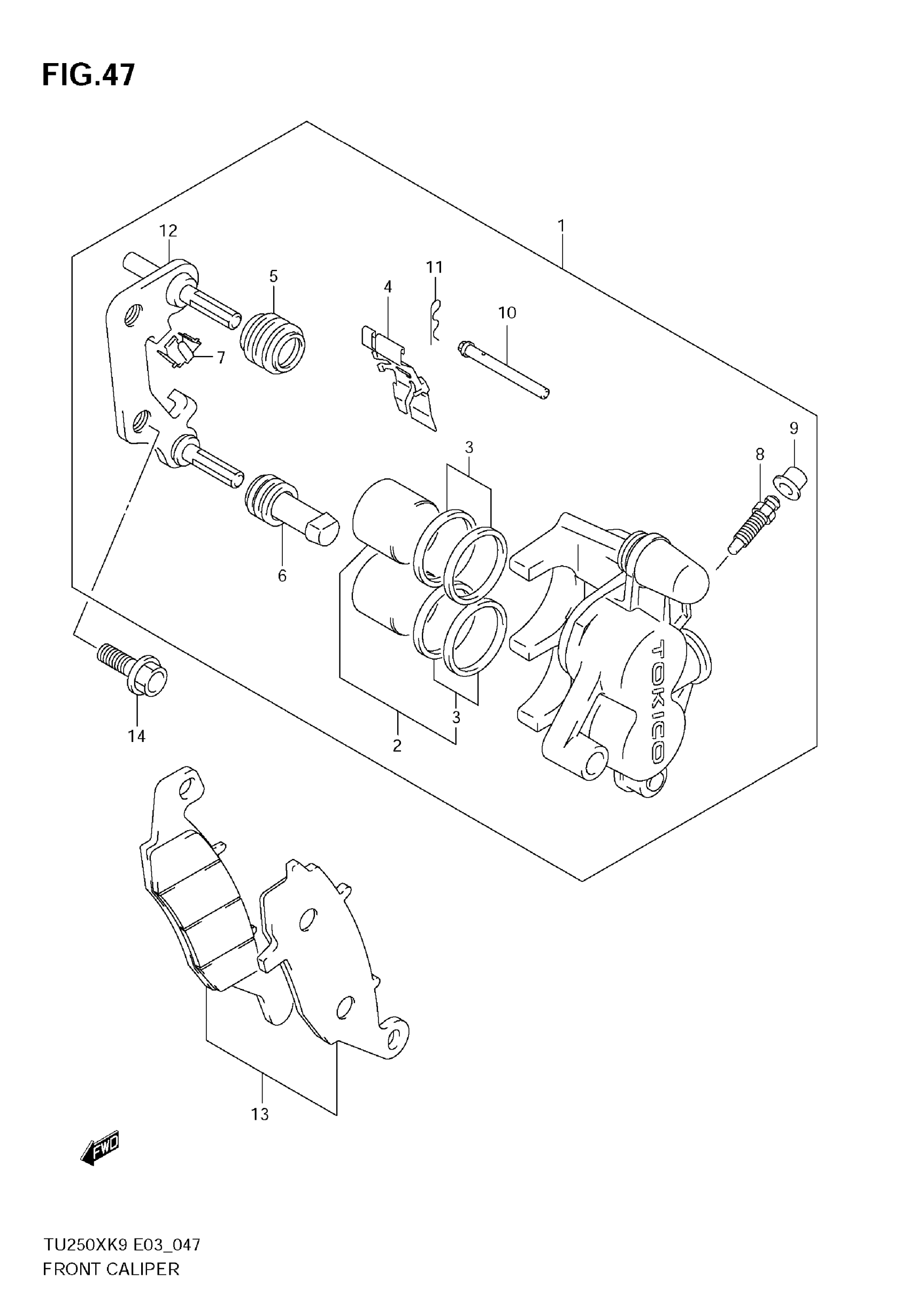

Suzuki TU250X (2009) FRONT CALIPER Diagram
