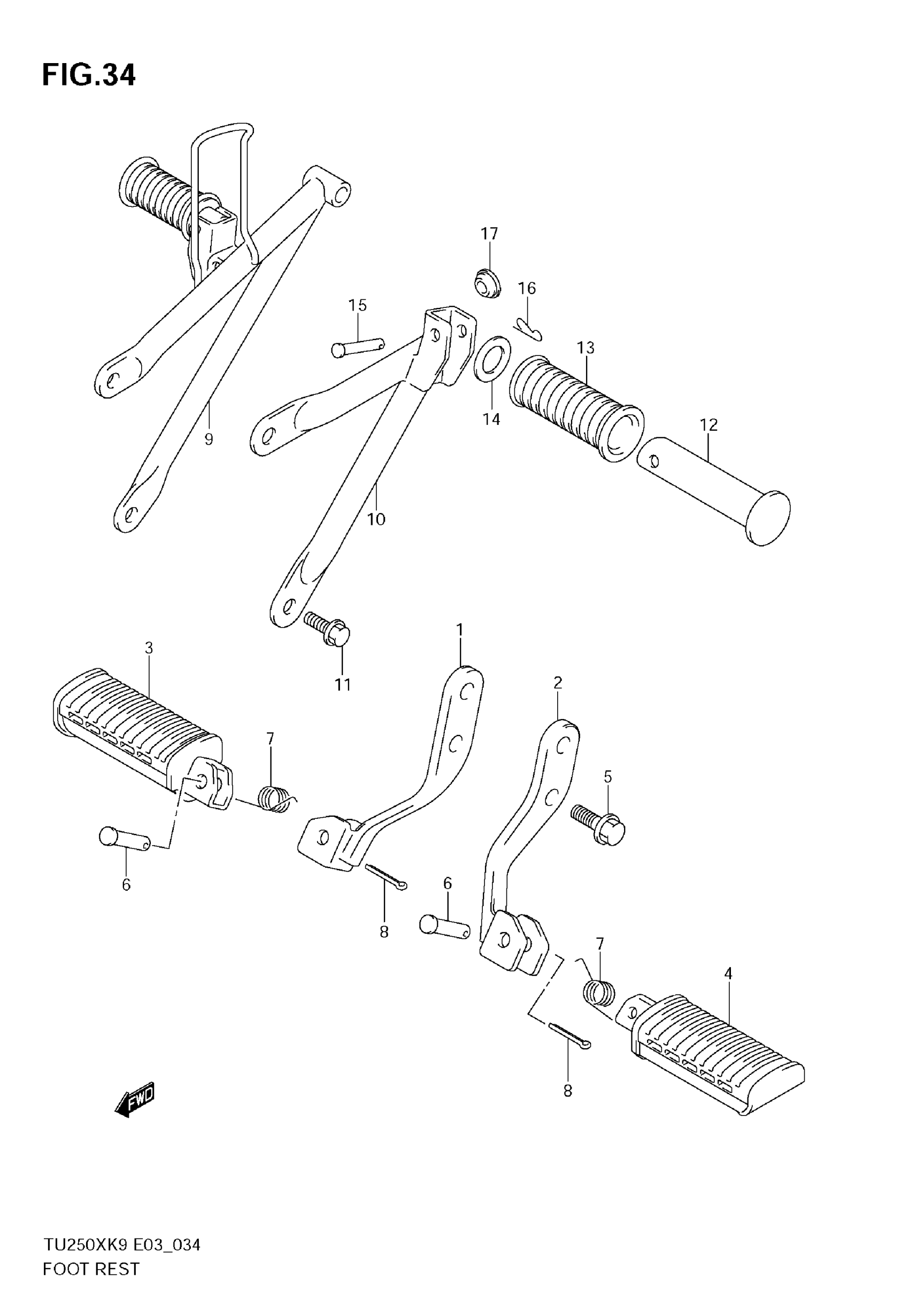

Suzuki TU250X (2009) FOOTREST Diagram

#

Description
Price

1

BAR, FRONT FOOTREST RH

43510-26G00

$54.06

2

BAR, FRONT FOOTREST LH

43520-26G00

$54.06

3

RUBBER,PILLION This part replaces 43550-37301.

43550-37310

$25.47

4

FOOTREST LH This part replaces 43560-37301.

43560-37310

$32.98

5

BOLT

01550-1025B

$4.10

6

PIN

09200-08002

$2.05

7

SPRING

09448-14012

$3.04

8

COTTER PIN

04111-2020A

$1.49

9

TUBE, PILLION RH (SILVER)

43810-26G01-YD8

Unavailable

10

TUBE, PILLION LH (SILVER)

43820-26G01-YD8

Unavailable

11

BOLT

01550-1020B

$4.25

12

BAR, PILLION

43610-03001

$6.52

13

RUBBER, PILLION FOOTREST This part replaces 43612-33200.

43612-33210

$5.83

14

WASHER

09160-19024

$2.65

15

PIN

09200-06033

$2.63

16

CLIP

09385-06012

$1.89

17

PLUG, LH

09250-15010

$2.08
