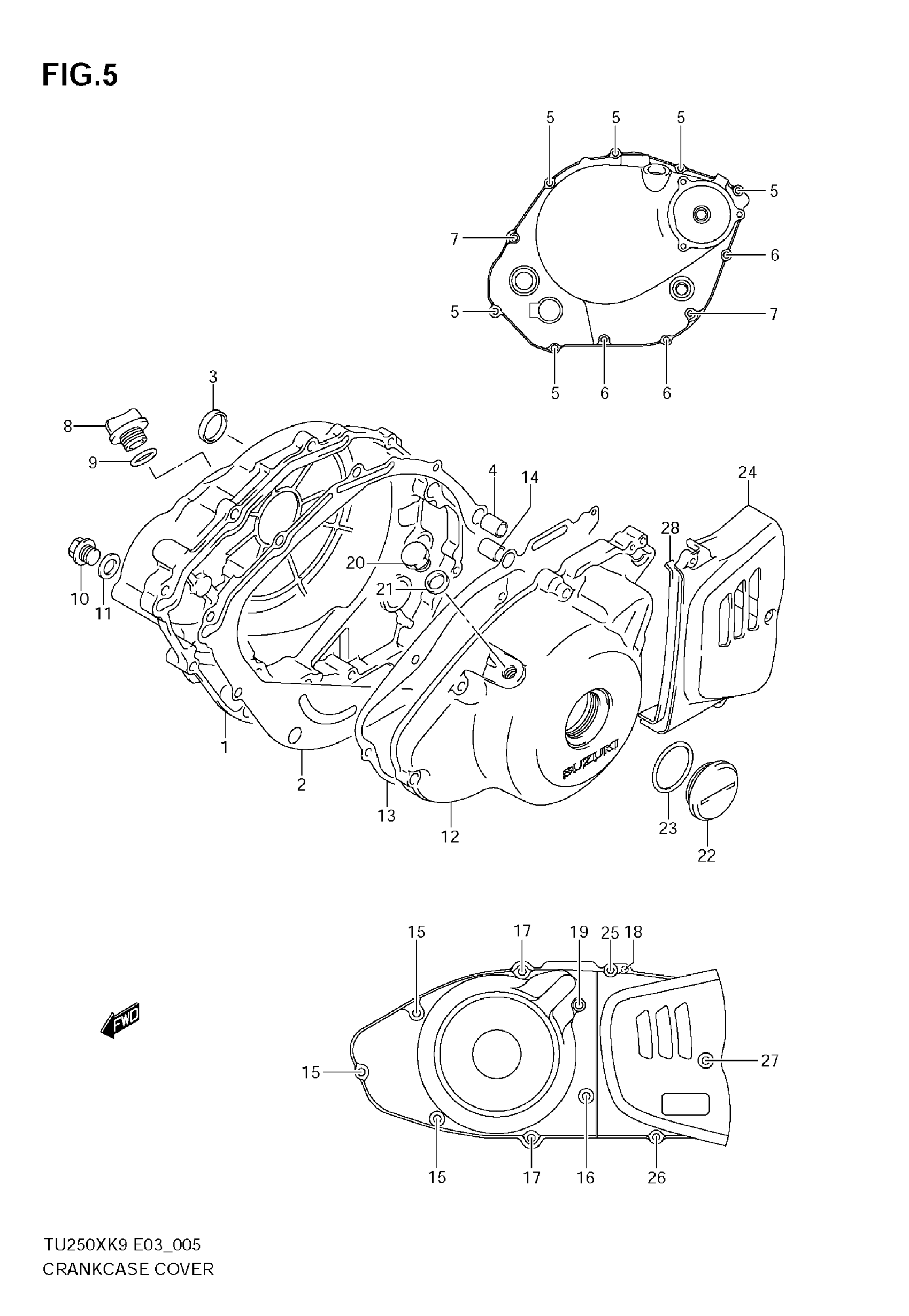

Suzuki TU250X (2009) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-28D01

Unavailable

2

GASKET, CLUTCH COVER

11482-38212

$27.42

3

PLUG

11342-15D00

$10.07

4

PIN

04211-13189

$2.19

5

BOLT (6X25)

09103-06212

$2.47

6

BOLT (6X35)

09103-06214

$2.48

7

BOLT (6X45)

09103-06224

$2.70

8

PLUG, ENGINE OIL FILLER

09259-20007

$7.53

9

O RING

09280-17003

$1.65

10

PLUG This part replaces 09247-14012.

09247-14026

$3.76

11

GASKET

09168-14002

$2.26

12

COVER, MAGNETO

11351-26G01

Unavailable

13

GASKET, MAGNETO COVER

11483-37D11

$25.42

14

PIN

04211-13189

$2.19

15

BOLT (6X25)

09103-06212

$2.47

16

BOLT (6X35)

09103-06214

$2.48

17

BOLT (6X50)

09103-06238

$2.66

18

BOLT

01547-05257

$2.19

19

BOLT (6X60)

09103-06261

$3.16

20

PLUG, TDC

09247-12104

$2.73

21

GASKET

09168-12002

$1.59

22

PLUG, CRANKSHAFT HOLE

09259-36011

$20.46

23

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

24

COVER, ENGINE SPROCKET

11361-38300

$116.47

25

BOLT (5X20)

09103-05019

Unavailable

26

BOLT (5X30)

09103-05015

$2.72

27

BOLT (5X45)

09103-05021

$2.72

28

DAMPER, ENGINE SPROCKET

11362-38300

Unavailable
