Description

Price

1

CAMSHAFT

12710-26G00

$213.72

2

SPROCKET, CAMSHAFT

12741-26G00

Unavailable

3

PIN

09206-08001

$1.78

4

PIN

09261-05005

$1.49

5

BOLT

07120-0612B

$3.04

6

C RING

09390-37001

Unavailable

7

ARM, VALVE ROCKER | Includes Item(s) 8 - 9

12840-26G00

$54.75

8

SCREW, TAPPET ADJUSTING

12842-38A00

$6.17

9

.NUT, ADJUSTING SCREW

12843-32400

$2.79

10

SHAFT, VALVE ROCKER ARM

12861-26G01

Unavailable

11

.O RING (D:1.9,ID:8.6)

09280-09005

$3.70

12

WASHER

09164-12021

$2.03

13

VALVE, INTAKE

12911-26G00

$42.82

14

VALVE, EXHAUST

12912-26G00

$69.90

15

SPRING, VALVE

12922-05240

Unavailable

16

RETAINER, VALVE SPRING

12931-49201

$6.91

17

COTTER, VALVE

12932-24400

$1.94

18

SEAT, VALVE SPRING

12933-38200

$6.38

19

SEAL, VALVE STEM OIL

09289-05015

$6.70

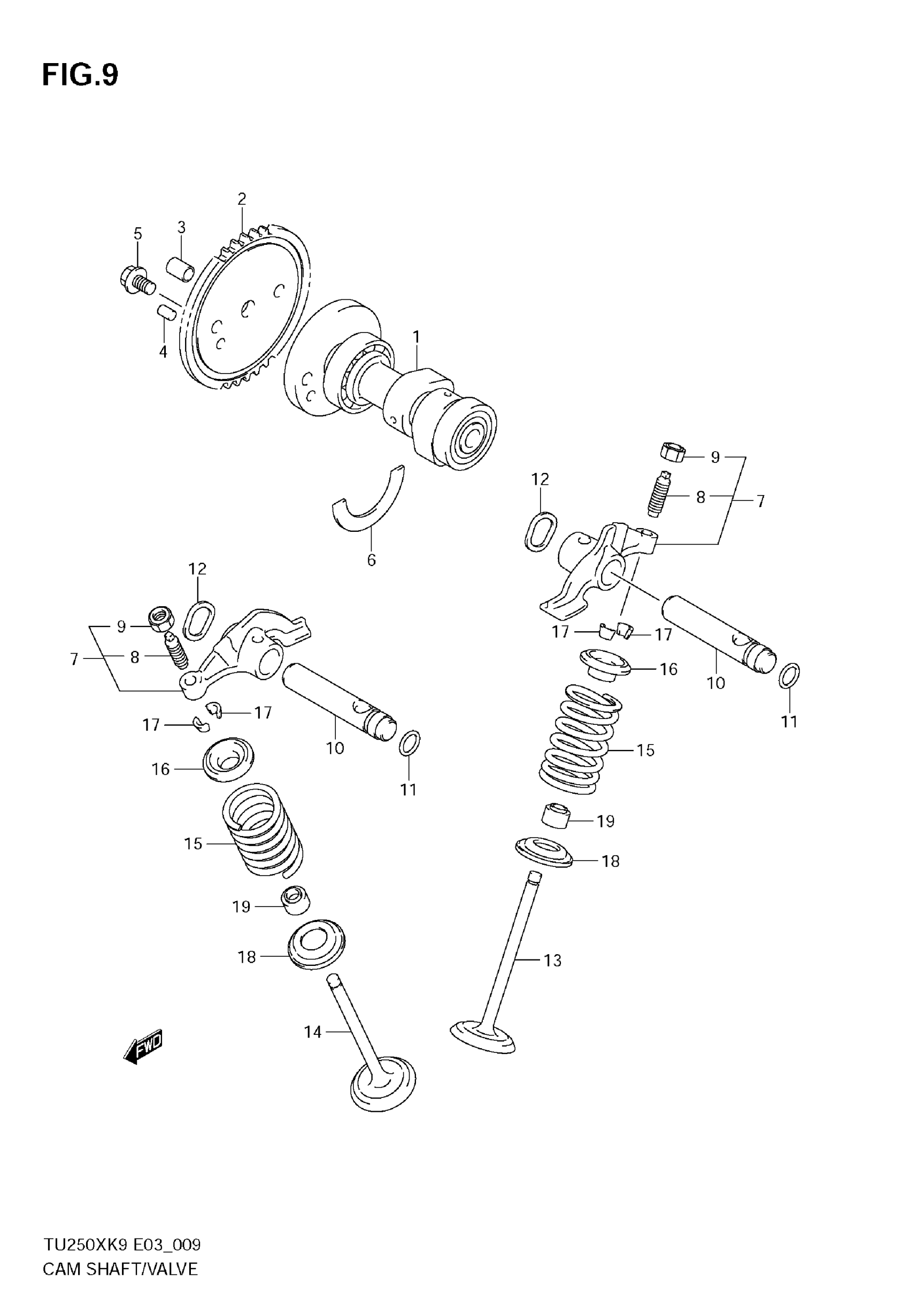

Suzuki TU250X (2009) CAMSHAFT - VALVE Diagram

CAMSHAFT

SPROCKET, CAMSHAFT

PIN

PIN

BOLT

C RING

ARM, VALVE ROCKER | Includes Item(s) 8 - 9

SCREW, TAPPET ADJUSTING

.NUT, ADJUSTING SCREW

SHAFT, VALVE ROCKER ARM

.O RING (D:1.9,ID:8.6)

WASHER

VALVE, INTAKE

VALVE, EXHAUST

SPRING, VALVE

RETAINER, VALVE SPRING

COTTER, VALVE

SEAT, VALVE SPRING

SEAL, VALVE STEM OIL
