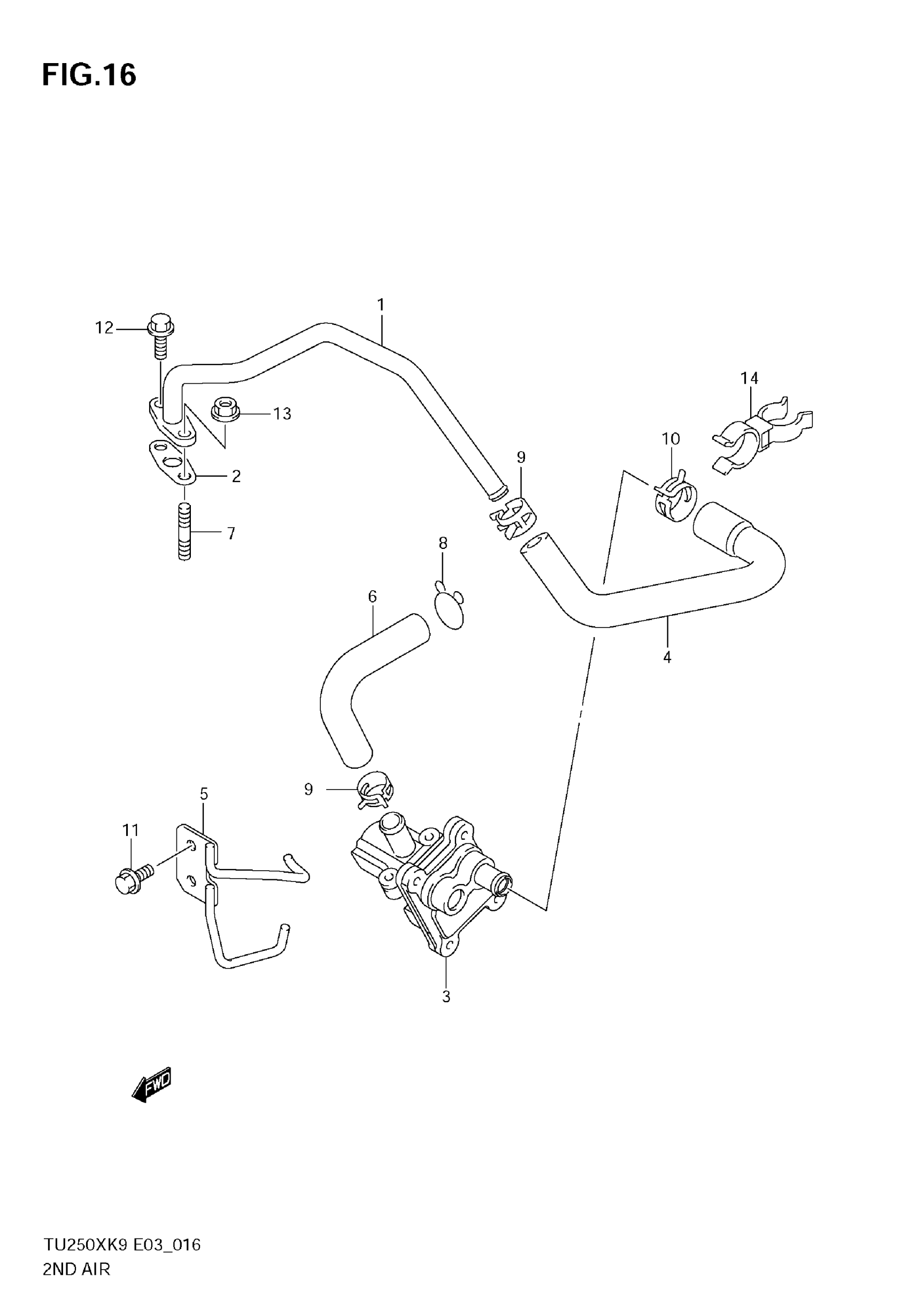

Suzuki TU250X (2009) 2ND AIR Diagram

#

Description
Price

1

PIPE, 2ND AIR

18410-26G10

Unavailable

2

GASKET 2ND AIR PIPE

18441-45C01

$7.05

3

VALVE ASSY, 2ND AIR

18450-26G10

Unavailable

4

HOSE, 2ND AIR VALVE

18461-26G11

Unavailable

5

BRACKET, 2ND AIR VALVE

18610-26G00

Unavailable

6

HOSE, 2ND AIR CLEANER

18711-26G20

Unavailable

7

BOLT, STUD

09108-06102

$4.08

8

CLIP

09401-15101

$2.26

9

CLIP

09401-17401

$3.08

10

CLIP

09401-20408

Unavailable

11

BOLT

01547-0612A

$2.03

12

BOLT

01550-0616A

$1.97

13

NUT

08316-1006A

$2.19

14

CLAMP

09408-00262

Unavailable
