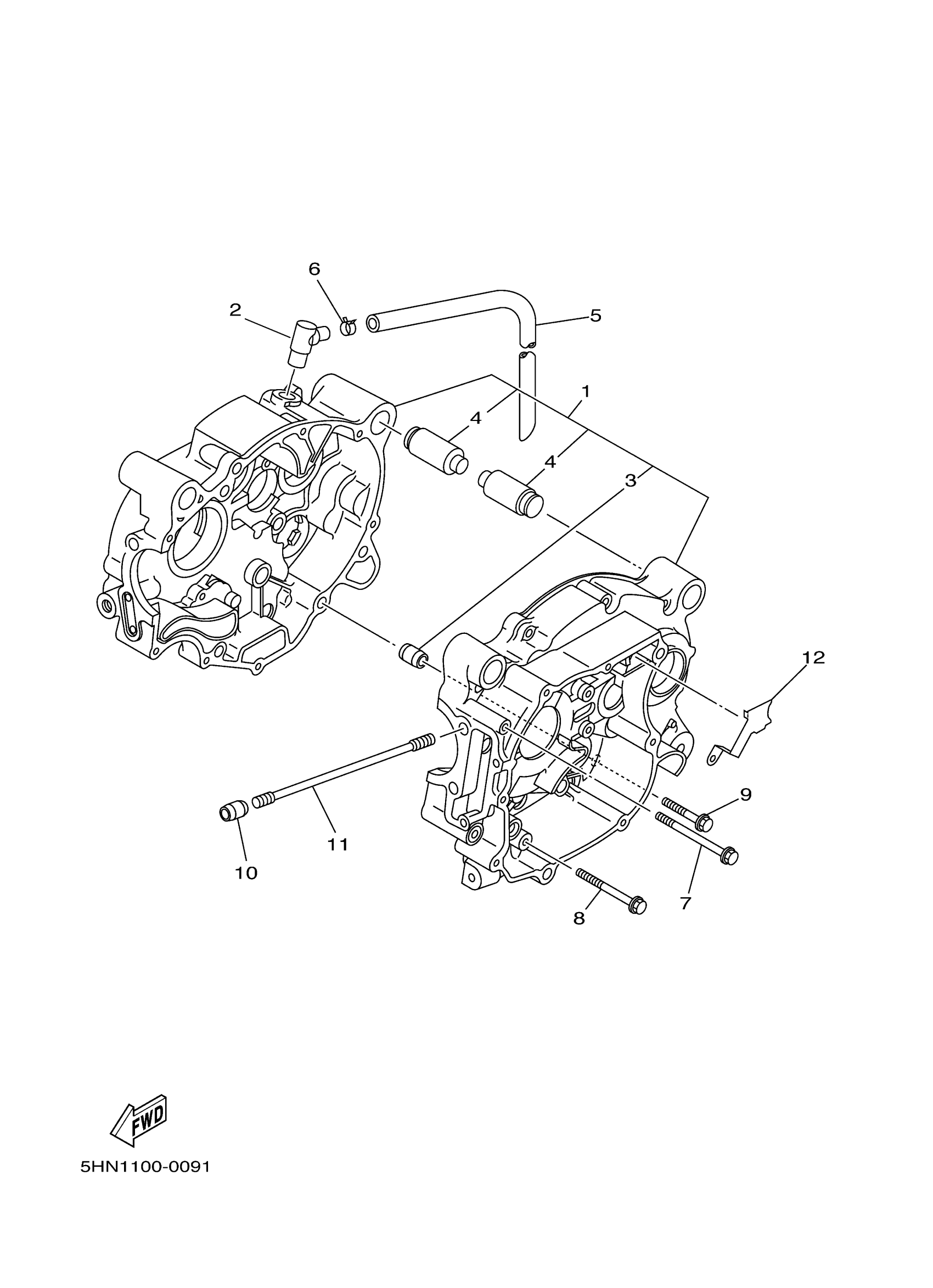

Yamaha TTR90S (TT-R90S) 5HNH 2004 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

5HN-15100-00-00

Unavailable

2

BREATHER

4GL-15371-01-00

Unavailable

3

PIN, DOWEL(3VD)

99530-10114-00

$2.13

4

DAMPER, ENGINE MOUNT 1

4S9-E5316-00-00

Unavailable

5

HOSE (L300)

90445-12002-00

Unavailable

6

CLIP(3YX)

90467-13133-00

$4.92

7

BOLT, WASHER BASED

90105-064A6-00

$6.40

8

BOLT, SMALL FLANGE

95027-06060-00

$1.91

9

BOLT, SMALL FLANGE

95027-06040-00

$2.31

10

PIN, DOWEL(3VD)

99530-10114-00

$2.13

11

BOLT, STUD

90116-08573-00

$7.52

12

PLATE

5HN-15191-00-00

Unavailable
