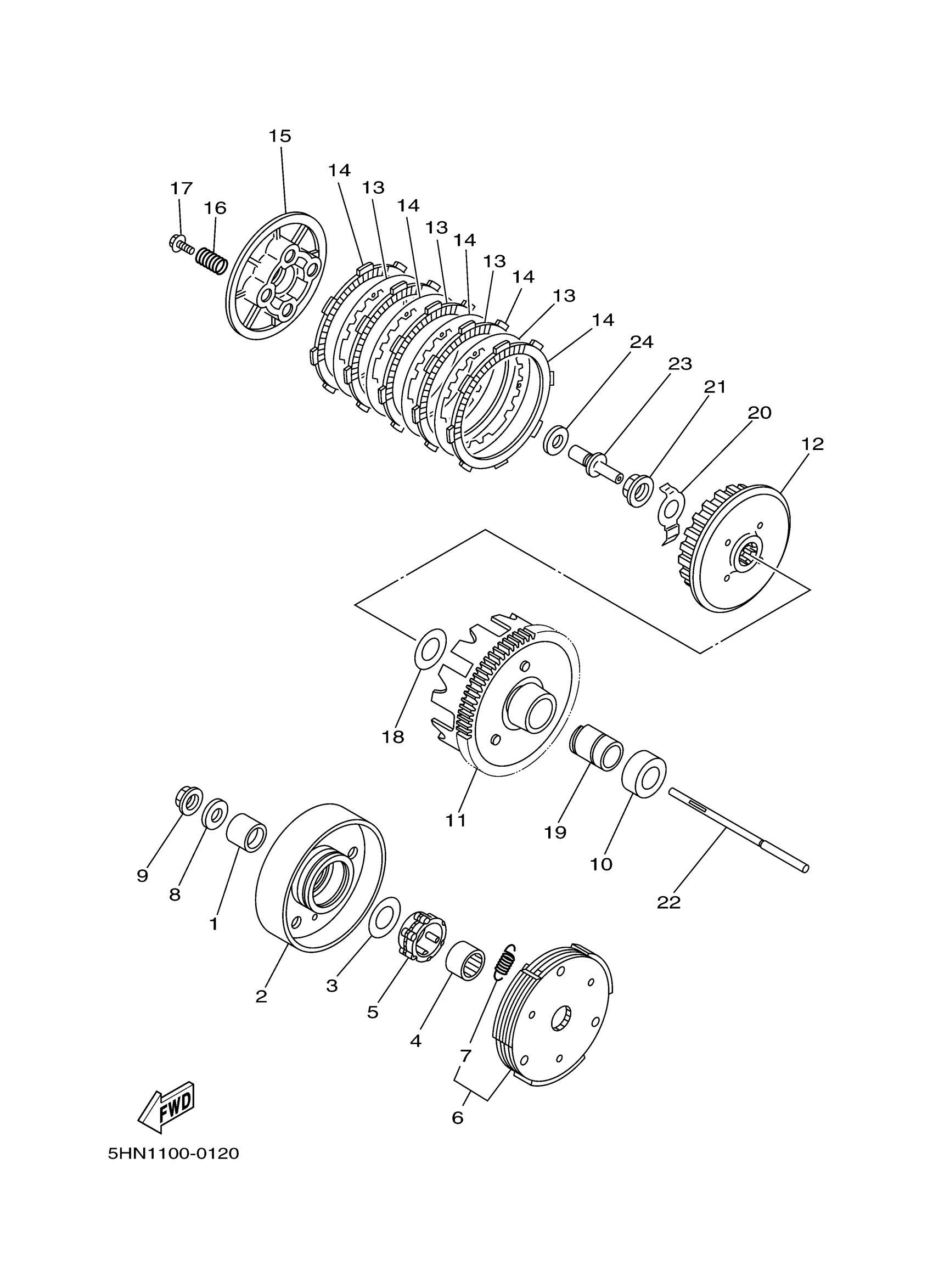

Yamaha TTR90S (TT-R90S) 5HNH 2004 CLUTCH Diagram

#

Description
Price

1

COLLAR

90387-16001-00

Unavailable

2

CLUTCH HOUSING COMP.

5HN-16611-00-00

Unavailable

3

WASHER, PLATE(4GL)

90201-167P7-00

$9.49

4

BOSS, CLUTCH HOUSING

4GL-16512-01-00

$60.99

5

BEARING, ONE WAY

5HN-16664-00-00

Unavailable

6

CLUTCH CARRIER ASSY

5HN-16620-01-00

Unavailable

7

. SPRING, CLUTCH WEIGHT 1

5HN-16626-00-00

Unavailable

8

WASHER, PLATE (35T)

90201-122H1-00

$9.49

9

NUT(1EE)

90179-12659-00

$8.49

10

SPACER(4GL)

90560-17384-00

Unavailable

11

PRIMARY DRIVEN GEAR COMP.

4ST-16150-01-00

Unavailable

12

BOSS, CLUTCH

4GL-16371-00-00

Unavailable

13

PLATE, CLUTCH 1 (F1ZR)

4WH-E6324-00-00

$7.99

14

PLATE, FRICTION

3YR-16321-00-00

Unavailable

15

PLATE, PRESSURE 1

2JG-16351-02-00

Unavailable

16

SPRING, COMPRESSION

90501-20002-00

Unavailable

17

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

Unavailable

18

WASHER, PLATE(2JG)

90201-174L9-00

Unavailable

19

SPACER(2JG)

90560-17328-00

Unavailable

20

WASHER, LOCK

4GL-16135-00-00

Unavailable

21

NUT

90179-14001-00

Unavailable

22

ROD, PUSH 2

4GL-16357-00-00

Unavailable

23

ROD, PUSH 1

4S9-E6356-00-00

Unavailable

24

WASHER, PLATE (3L6)

90201-10774-00

Unavailable
