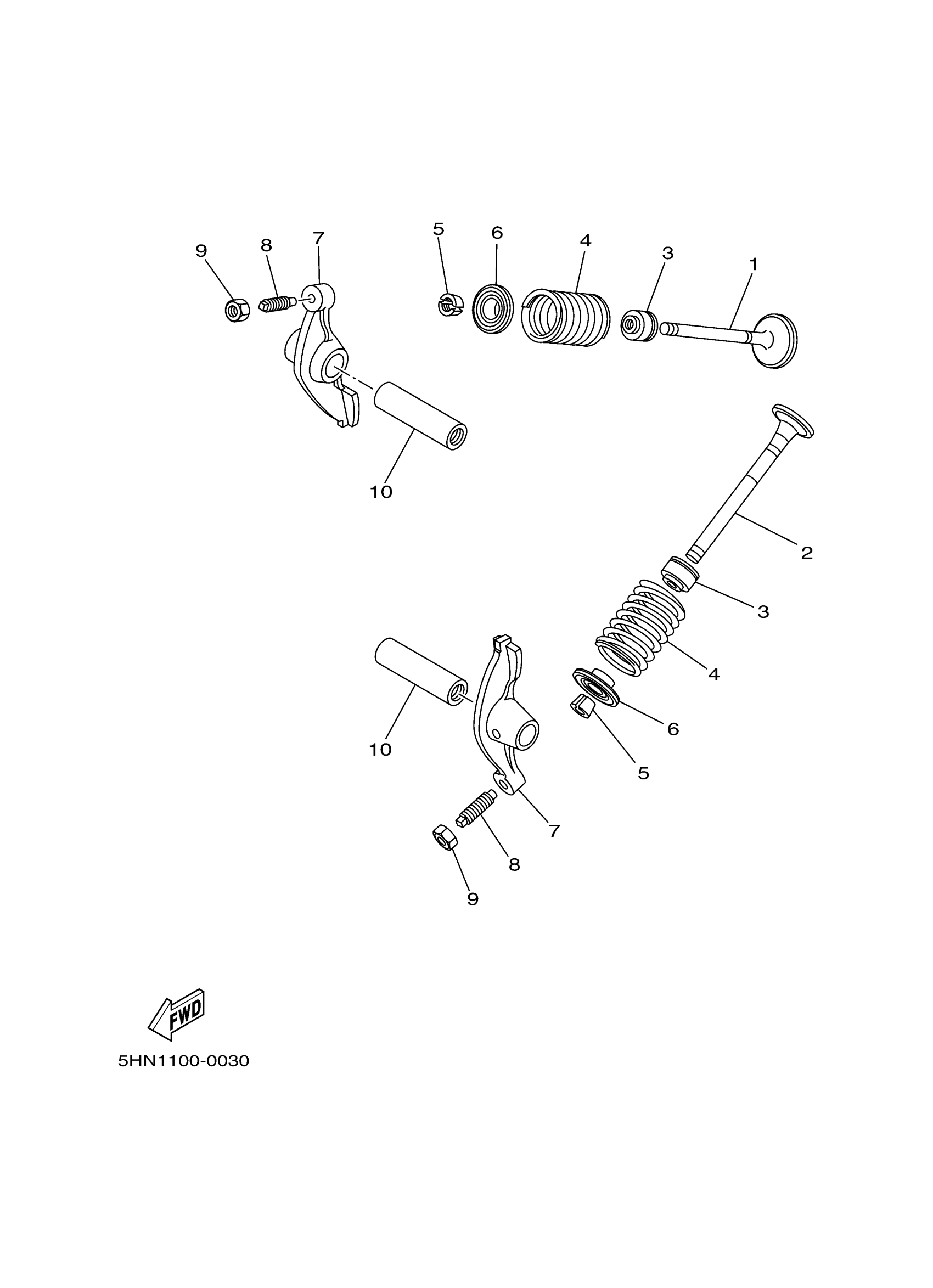

Yamaha TTR90R (TTR90) 5HNB 2003 VALVE Diagram

#

Description
Price

1

VALVE, INTAKE

4GL-12111-11-00

Unavailable

2

VALVE, EXHAUST

4GL-12121-01-00

$62.06

3

SEAL, VALVE STEM

4SV-12119-00-00

$18.53

4

SPRING, VALVE OUTER

5DV-12114-01-00

$10.24

5

COTTER, VALVE

1WG-12118-00-00

$5.50

6

RETAINER, VALVE SPRING

3UH-12117-00-00

$7.14

7

ARM, VALVE ROCKER

22F-12151-10-00

$26.39

8

SCREW, VALVE ADJUSTING

22F-12159-00-00

$8.56

9

NUT (22F)

90170-05302-00

$0.70

10

SHAFT, ROCKER 2

22F-12156-00-00

$17.82
