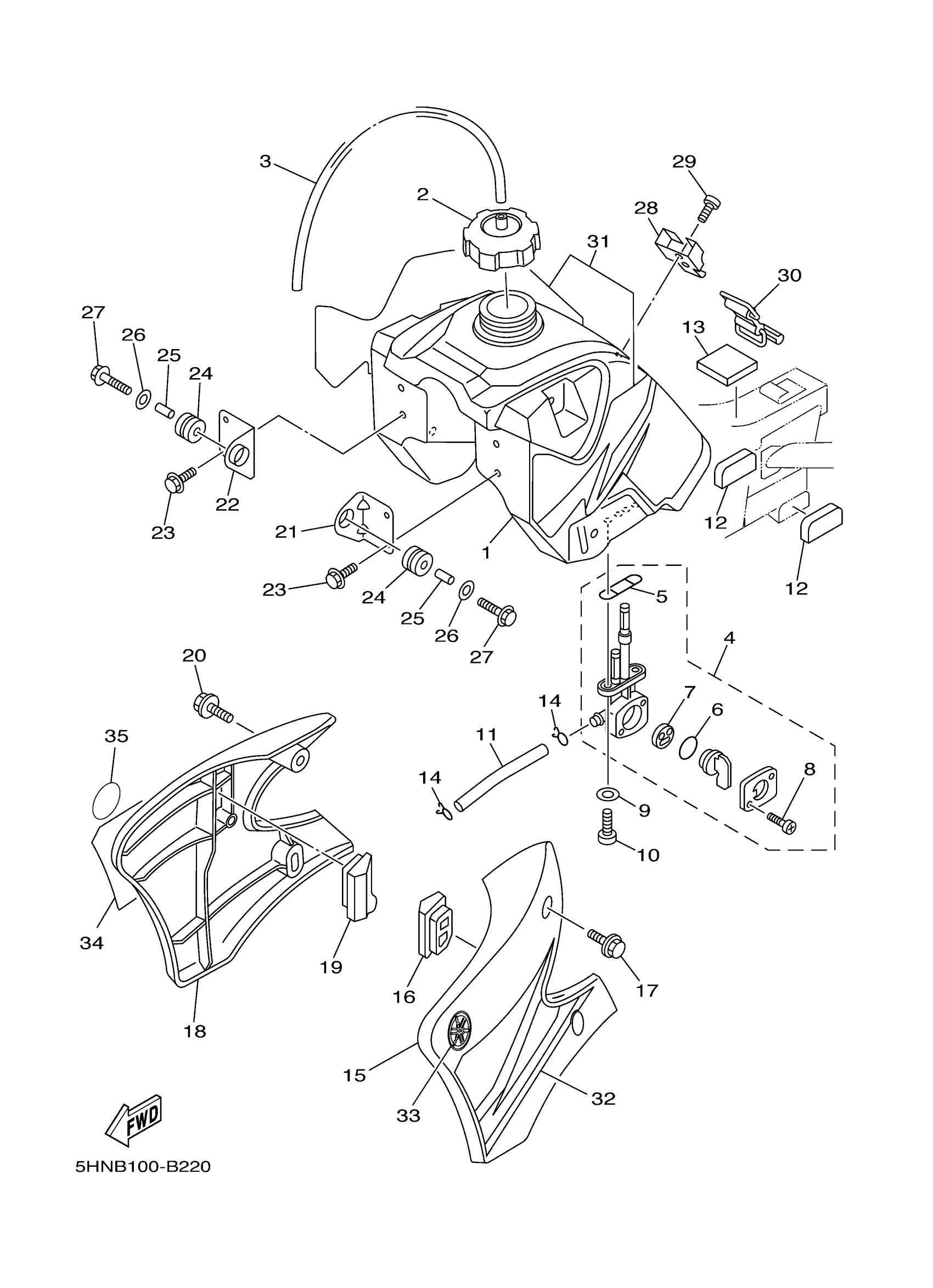

Yamaha TTR90R (TTR90) 5HNB 2003 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

5HN-24110-30-00

$515.58

2

CAP ASSY

2FJ-24610-20-00

$57.70

3

HOSE (L1500)

90445-084J0-00

$15.31

4

FUEL COCK ASSY 1

5HN-24500-01-00

$30.25

5

O-RING

4X8-24512-00-00

$6.25

6

SEAL, COCK

3AJ-24534-01-00

$8.69

7

VALVE PACKING

3AC-24523-00-00

$10.82

8

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.56

9

WASHER, PLATE(3MB)

90202-05187-00

$1.01

10

SCREW 256241430000

90149-06011-00

$1.56

11

HOSE (L200)

90445-10752-00

$3.62

12

DAMPER, LOCATING 1

21W-24181-00-00

Unavailable

13

DAMPER, LOCATING

2X6-24183-00-00

$1.68

14

CLIP

90467-090A2-00

$2.47

15

SCOOP, AIR 1

5HN-2137W-00-00

$37.57

16

DAMPER, PLATE 1

5HN-2414H-00-00

Unavailable

17

BOLT, WITH WASHER(4ES)

90119-06217-00

Unavailable

18

SCOOP, AIR 2

5HN-2137X-00-00

Unavailable

19

DAMPER, PLATE 2

5HN-2414J-00-00

Unavailable

20

BOLT, WITH WASHER(4ES)

90119-06217-00

Unavailable

21

STAY, FUEL TANK 1

5HN-24157-00-00

Unavailable

22

STAY, FUEL TANK 2

5HN-24158-00-00

Unavailable

23

BOLT, FLANGE

95817-06010-00

Unavailable

24

GROMMET (4V1)

90480-18290-00

Unavailable

25

COLLAR (1T2)

90387-07598-00

Unavailable

26

WASHER PLATE 137241870000

90201-06072-00

Unavailable

27

BOLT, FLANGE

95817-06030-00

Unavailable

28

STAY, FUEL TANK 2

5HN-24116-00-00

Unavailable

29

SCREW, BINDING

98907-06010-00

Unavailable

30

BAND, TANK FITTING 1

5HN-24173-00-00

Unavailable

31

GRAPHIC SET

5HN-24240-30-00

Unavailable

32

GRAPHIC 1

5HN-2173E-30-00

Unavailable

33

TUNING FORK MARK

5HN-2175C-00-00

Unavailable

34

GRAPHIC 2

5HN-2173F-30-00

Unavailable

35

TUNING FORK MARK

5HN-2175C-00-00

Unavailable
