Description

Price

1

COVER, CRANKCASE 1

4GL-15411-12-00

Unavailable

2

GASKET, CRANKCASE COVER 1

4GL-15451-01-00

$16.49

3

PIN, DOWEL(3VD)

99530-10114-00

$2.55

4

SCREW, PAN

98507-06040-00

$3.22

5

SCREW, PAN

98507-06050-00

$3.28

6

SCREW, PAN

98507-06060-00

$7.99

7

PLUG, STRAIGHT SCREW (5H0)

90340-14068-00

$18.99

8

O-RING (2H9)

93210-14369-00

$7.49

9

PLUG, STRAIGHT SCREW (5H0)

90340-32069-00

$31.99

10

O-RING (341)

93210-32172-00

$7.49

11

PLATE

4NM-15113-00-00

$3.17

12

COVER, CHAIN CASE

5HN-15418-00-00

$43.99

13

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

14

COVER, CRANKCASE 2

4GL-15421-00-00

Unavailable

15

GASKET, CRANKCASE COVER 2

5HN-15461-00-00

$19.99

16

PIN, DOWEL(3VD)

99530-10114-00

$2.55

17

SCREW, PAN

98507-06040-00

$3.22

18

SCREW, PAN

98507-06050-00

$3.28

19

PLUG, OIL LEVEL

55X-15362-10-00

Unavailable

20

O-RING (646)

93210-19123-00

Unavailable

21

OIL SEAL(2FJ)

93101-10142-00

Unavailable

22

COVER, STARTING MOTOR

4GL-15436-01-00

Unavailable

23

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

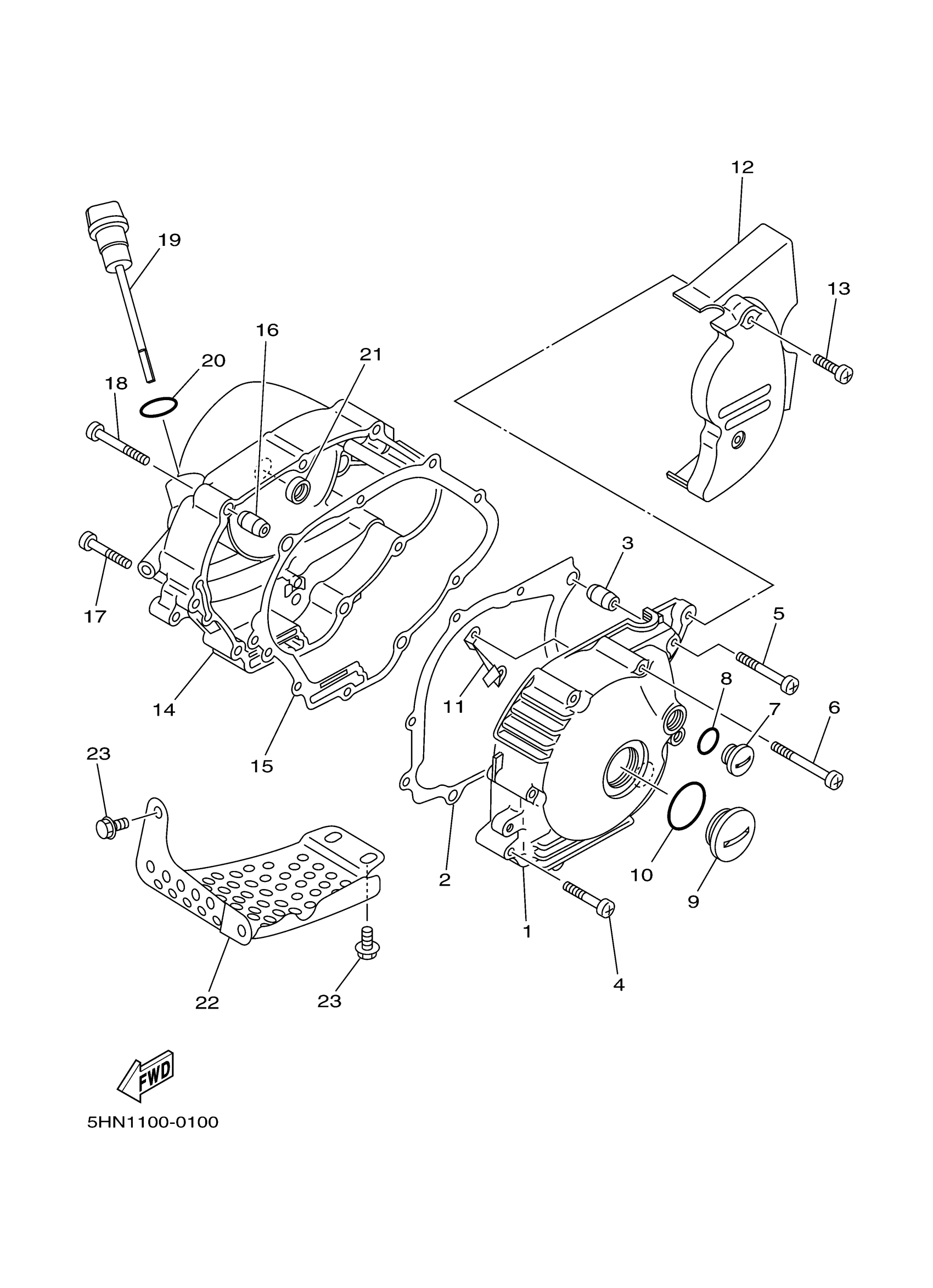

Yamaha TTR90R (TTR90) 5HNB 2003 CRANKCASE COVER 1 Diagram

COVER, CRANKCASE 1

GASKET, CRANKCASE COVER 1

PIN, DOWEL(3VD)

SCREW, PAN

SCREW, PAN

SCREW, PAN

PLUG, STRAIGHT SCREW (5H0)

O-RING (2H9)

PLUG, STRAIGHT SCREW (5H0)

O-RING (341)

PLATE

COVER, CHAIN CASE

SCREW, PAN HEAD (76T)

COVER, CRANKCASE 2

GASKET, CRANKCASE COVER 2

PIN, DOWEL(3VD)

SCREW, PAN

SCREW, PAN

PLUG, OIL LEVEL

O-RING (646)

OIL SEAL(2FJ)

COVER, STARTING MOTOR

BOLT, FLANGE(JN5)
