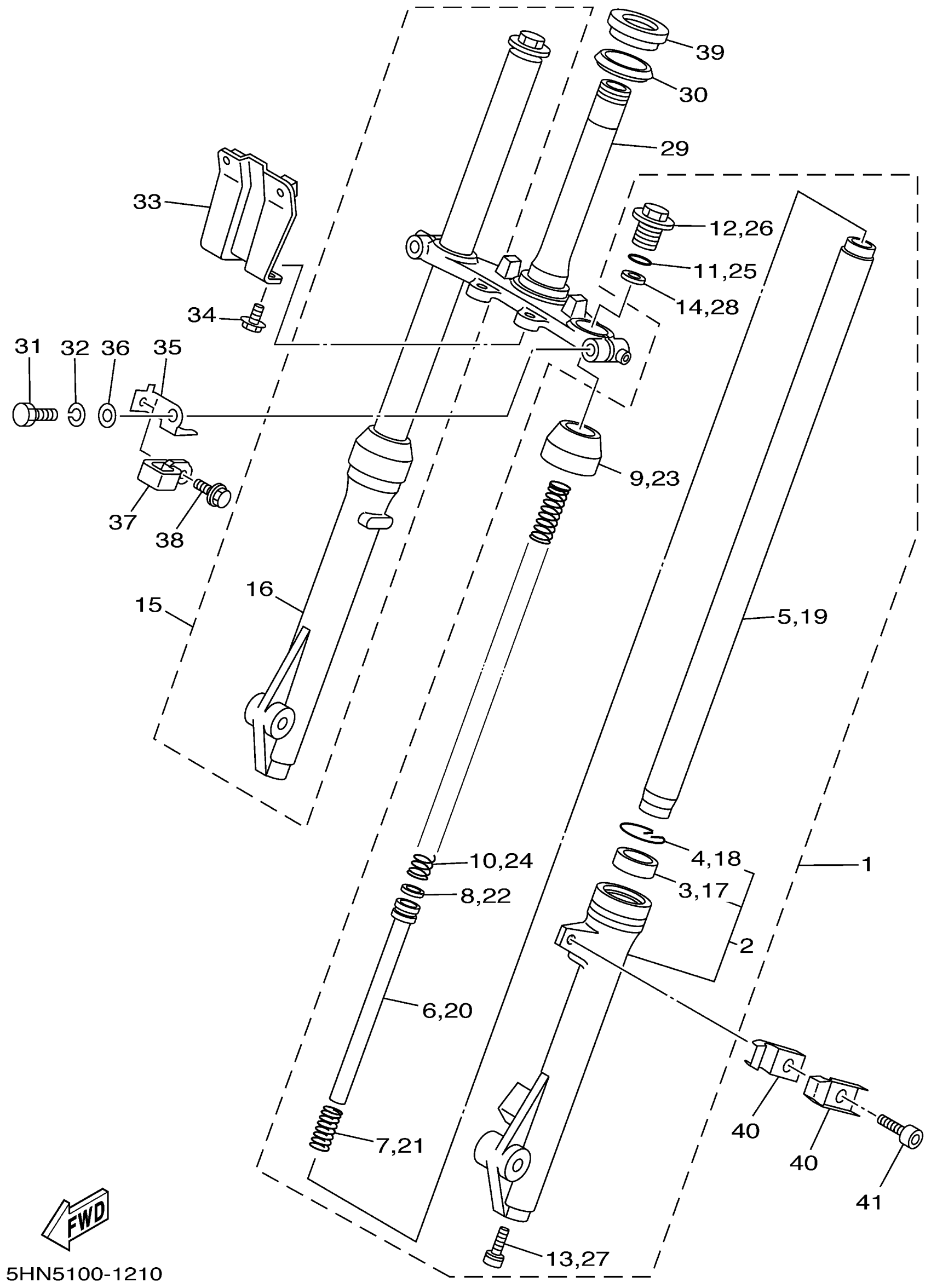

Yamaha TTR90P (TTR90) 5HN8 2002 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

5HN-23102-01-00

Unavailable

2

TUBE, OUTER (LEFT)

3RV-23126-01-00

Unavailable

3

OIL SEAL

1RY-23145-00-00

$24.62

4

CLIP, OIL SEAL

3M7-23156-00-00

$6.42

5

INNER TUBE COMP. 1

21W-23110-00-00

Unavailable

6

. CYLINDER COMP, FRONT FORK

5HN-23170-00-00

Unavailable

7

SPRING, REBOUND

2J5-23151-00-00

$6.92

8

RING, PISTON

2J5-23157-00-00

$7.17

9

SEAL, DUST

3M7-23144-00-00

$16.13

10

SPRING, FRONT FORK

21W-23141-00-00

$25.39

11

O-RING(36Y)

93210-17570-00

$5.47

12

BOLT, CAP

3M7-23111-01-00

$29.36

13

BOLT

3M7-23181-00-00

$7.24

14

BOLT, INNER TUBE

3M7-23142-00-00

$13.77

15

FRONT FORK ASSY (R.H)

5HN-23103-01-00

Unavailable

16

TUBE, OUTER (RIGHT)

3RV-23136-01-00

Unavailable

17

OIL SEAL

1RY-23145-00-00

$24.62

18

CLIP, OIL SEAL

3M7-23156-00-00

$6.42

19

INNER TUBE COMP. 1

21W-23110-00-00

Unavailable

20

. CYLINDER COMP, FRONT FORK

5HN-23170-00-00

Unavailable

21

SPRING, REBOUND

2J5-23151-00-00

$6.92

22

RING, PISTON

2J5-23157-00-00

$7.17

23

SEAL, DUST

3M7-23144-00-00

$16.13

24

SPRING, FRONT FORK

21W-23141-00-00

$25.39

25

O-RING(36Y)

93210-17570-00

$5.47

26

BOLT, CAP

3M7-23111-01-00

$29.36

27

BOLT

3M7-23181-00-00

$7.24

28

BOLT, INNER TUBE

3M7-23142-00-00

$13.77

29

UNDER BRACKET COMP.

5HN-23340-00-00

Unavailable

30

SEAL, DUST

164-23462-00-00

Unavailable

31

BOLT

451-23346-01-00

Unavailable

32

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

33

STAY, PLATE

5HN-23486-00-00

Unavailable

34

BOLT

5HN-23492-00-00

Unavailable

35

BRACKET 1

5HN-2334G-00-00

Unavailable

36

WASHER, PLATE

92990-10600-00

$2.57

37

HOLDER

5HN-23857-00-00

Unavailable

38

BOLT, WASHER BASED

90105-05002-00

Unavailable

39

BEARING(4HC)

93399-99942-00

Unavailable

40

CLAMP (3R0)

90462-14055-00

Unavailable

41

BOLT,SOCKET

91317-06012-00

Unavailable
