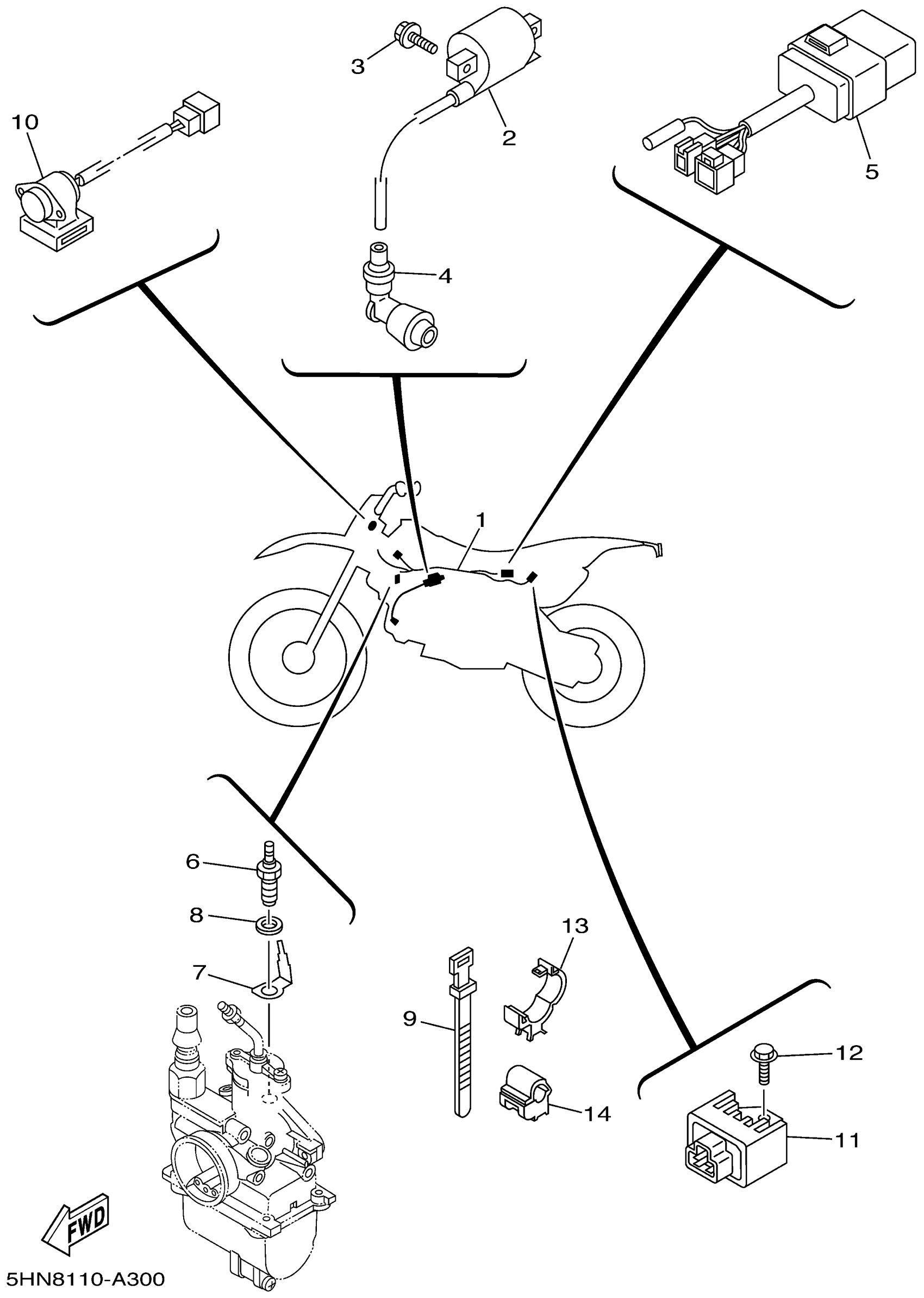

Yamaha TTR90P (TTR90) 5HN8 2002 ELECTRICAL 1 Diagram

#

Description
Price

1

WIRE HARNESS ASSY

5HN-82590-00-00

Unavailable

2

IGNITION COIL ASSY

3KJ-82310-13-00

$47.99

3

. BOLT, FLANGE

95027-06020-00

Unavailable

4

PLUG CAP ASSY

4BP-82370-01-00

$35.99

5

C.D.I. UNIT ASSY

4GL-85540-20-00

Unavailable

6

HEATER ASSY

5FU-83790-20-00

$49.99

7

TERMINAL 1

5FU-82103-00-00

$7.99

8

WASHER, PLATE

90201-08016-00

$8.49

9

CLAMP

5Y9-12491-00-00

$6.99

10

THERMO SWITCH ASSY

4TR-82560-00-00

Unavailable

11

RECTIFIER & REGULATOR ASSY

4CK-81960-01-00

$200.99

12

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

13

CLAMP(4HM)

90464-15192-00

$8.49

14

CLAMP(4GY)

90464-05188-00

$4.72
