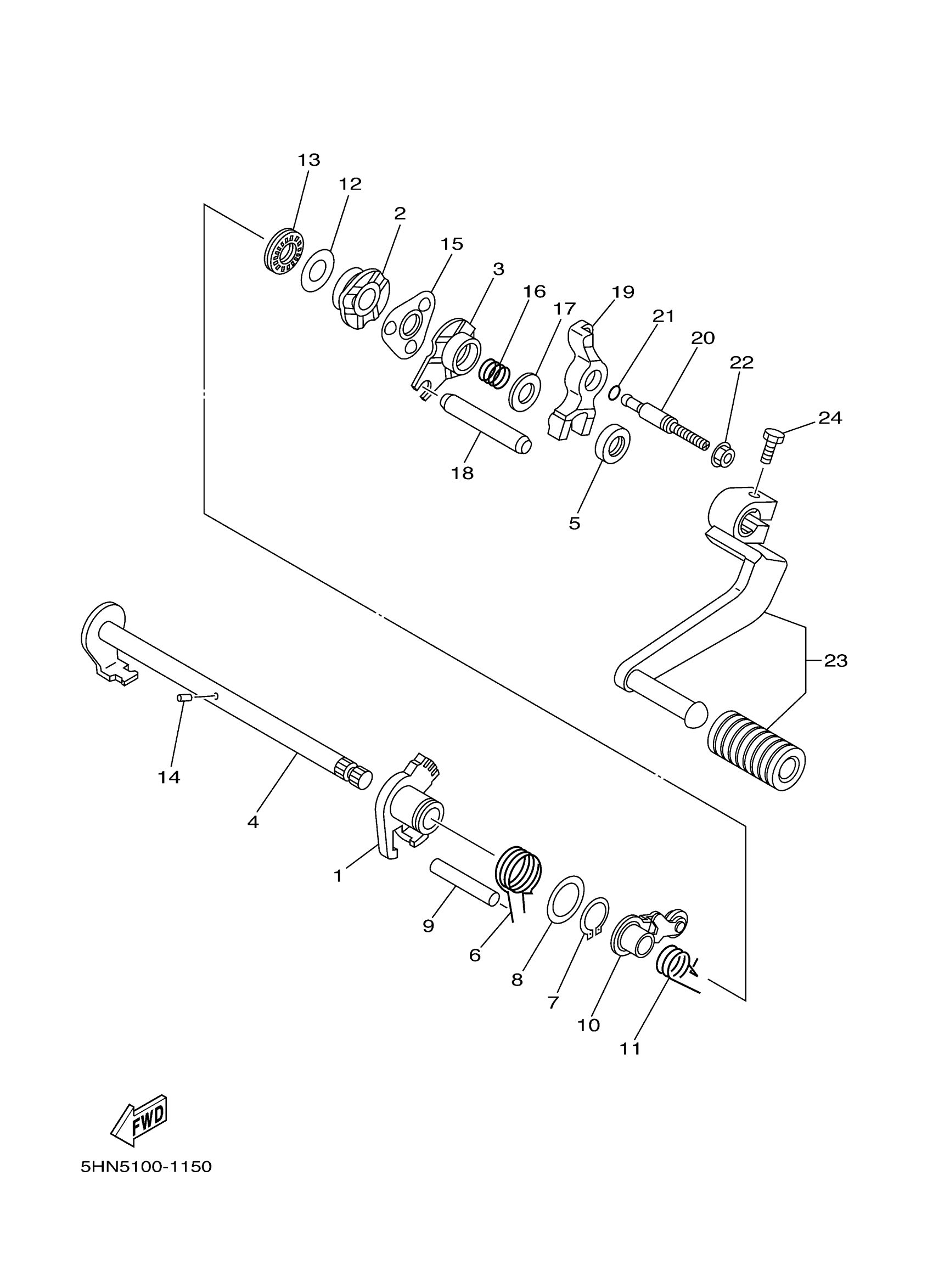

Yamaha TTR90N (TTR90) 5HN5 2001 SHIFT SHAFT Diagram

#

Description
Price

1

LEVER, SHIFT 4

4GL-18152-00-00

Unavailable

2

GUIDE

5KY-18179-00-00

Unavailable

3

GUIDE, SHIFT

5KY-18172-00-00

Unavailable

4

SHIFT SHAFT ASSY

4GL-18101-01-00

Unavailable

5

OIL SEAL (12X22X5-371)

93102-12106-00

$11.49

6

SPRING, TORSION

90508-29007-00

$11.49

7

CIRCLIP(1AR)

99009-20400-00

$8.49

8

WASHER PLATE 328171160000

90201-20276-00

$8.49

9

PIN, DOWEL (722)

93608-50149-00

$8.49

10

STOPPER LEVER ASSY

5HN-18140-00-00

$43.99

11

SPRING, TORSION

90508-20012-00

Unavailable

12

WASHER, PLATE(2JG)

90201-126L0-00

$5.60

13

BEARING, THRUST(2FL)

93340-21209-00

$16.99

14

PIN,DOWEL (603)

93604-10011-00

$8.49

15

HOLDER, PAWL

4GL-18181-00-00

$9.99

16

SPRING, COMPRESSION(2JG)

90501-125E9-00

Unavailable

17

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

18

BAR, SHIFT FORK GUIDE 1

55K-18531-00-00

Unavailable

19

ARM, SHIFT 3

5HN-1817A-00-00

Unavailable

20

SCREW, ADJUSTING

4GL-18186-00-00

Unavailable

21

O-RING (26H)

93210-06632-00

Unavailable

22

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

23

SHIFT PEDAL ASSY

5HN-18110-00-00

Unavailable

24

BOLT, HEXAGON

97017-06020-00

Unavailable
