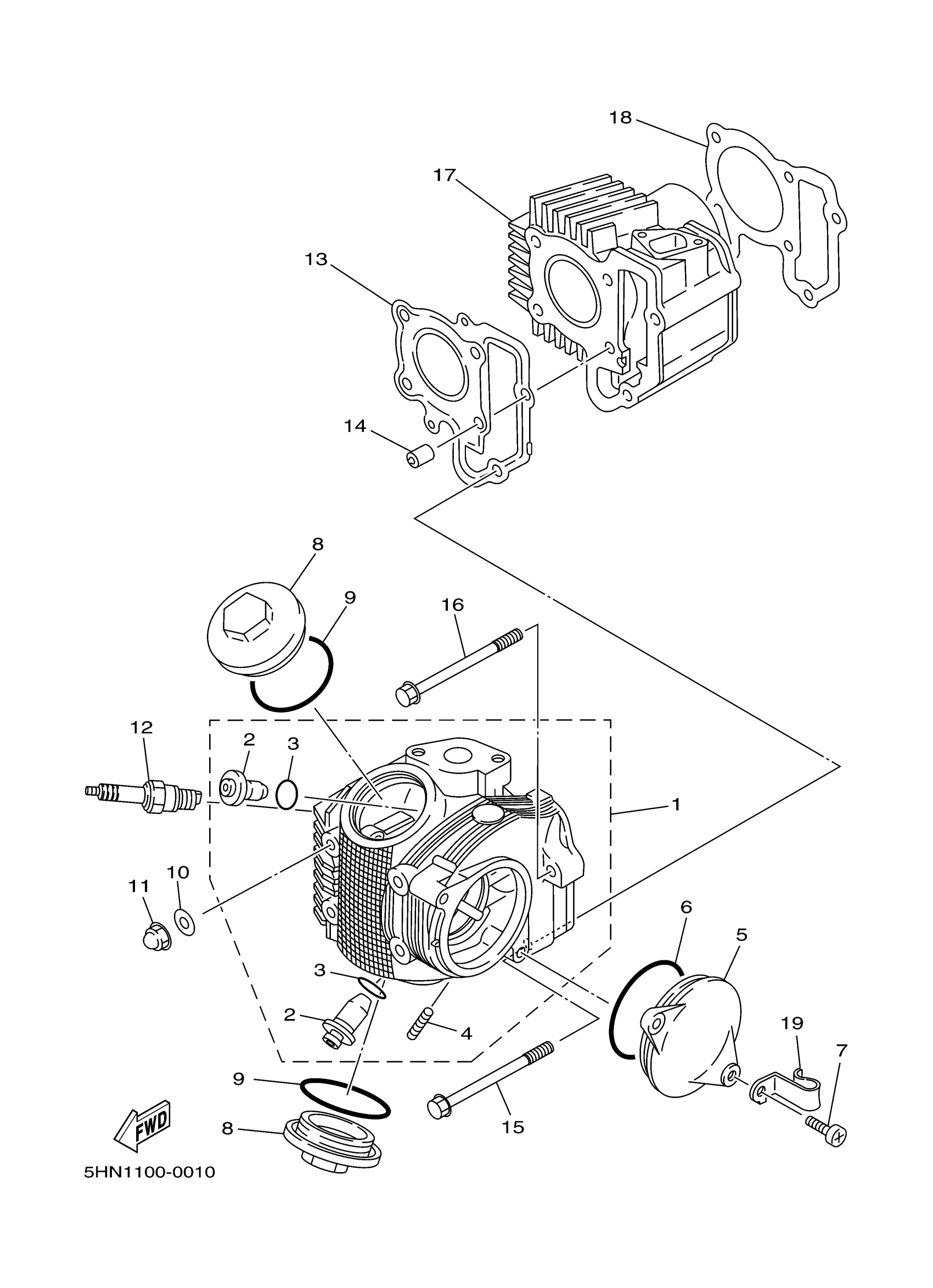

Yamaha TTR90N (TTR90) 5HN5 2001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

4GL-11110-11-00

Unavailable

2

GUIDE, EXHAUST VALVE

4GL-11134-10-00

$151.53

3

O-RING (4A0)

93210-09418-00

Unavailable

4

BOLT

22F-14651-00-00

$5.70

5

COVER, CYLINDER HEAD SIDE 1

50M-11185-10-00

Unavailable

6

O-RING (22F)

93210-63556-00

$6.49

7

SCREW, PAN HEAD(3TJ)

98507-06016-00

$2.27

8

COVER, CYLINDER HEAD SIDE 2

22F-11186-10-00

$17.22

9

O-RING(55X)

93210-44704-00

$5.34

10

WASHER, PLATE

90201-080L7-00

$3.19

11

NUT, CROWN (4G0)

90176-08026-00

$10.85

12

CR6HS-A NGK SPLUG 4PK

CR6-HSA00-00-00

$5.02

13

GASKET, CYLINDER HEAD 1

4GL-11181-00-00

$25.00

14

PIN, DOWEL(3VD)

99530-10114-00

$2.13

15

BOLT, FLANGE(4NM)

95027-06085-00

$6.39

16

BOLT, FLANGE(4NM)

95027-06085-00

$6.39

17

CYLINDER 1

4GL-11311-01-00

Unavailable

18

GASKET, CYLINDER

5HN-11351-00-00

Unavailable

19

CLAMP (22K)

90465-08230-00

Unavailable
