Description

Price

1

CRANKSHAFT ASSY

5HN-11400-01-00

Unavailable

2

. CRANK 1

5HN-W1141-00-00

Unavailable

3

PIN, CRANK 1

4GL-11681-10-00

$41.99

4

BEARING, NEEDLE(4CW)

93310-326M9-00

Unavailable

5

ROD, CONNECTING

4GL-11651-01-00

Unavailable

6

CRANK 2

5HN-11422-00-00

Unavailable

7

SPACER

5DV-11445-00-00

Unavailable

8

. BEARING

93306-20590-00

Unavailable

9

KEY WOODRUFF 146115450000

90280-03017-00

$7.49

10

SPACER

4GL-11445-00-00

$27.99

11

PISTON (STD)

4GL-11631-01-00

$79.99

11

PISTON (0.50MM O/S)

4GL-11636-01-00

$72.99

11

PISTON (1.00MM O/S)

4GL-11638-01-00

$72.99

12

PIN, PISTON

22K-11633-01-00

$28.99

13

CIRCLIP (22F)

93450-14088-00

$4.08

14

PISTON RING SET (STD)

55X-11610-00-00

Unavailable

14

PISTON RING SET (2ND O/S)

55X-11610-20-00

Unavailable

14

PISTON RING SET (4TH O/S)

55X-11610-40-00

Unavailable

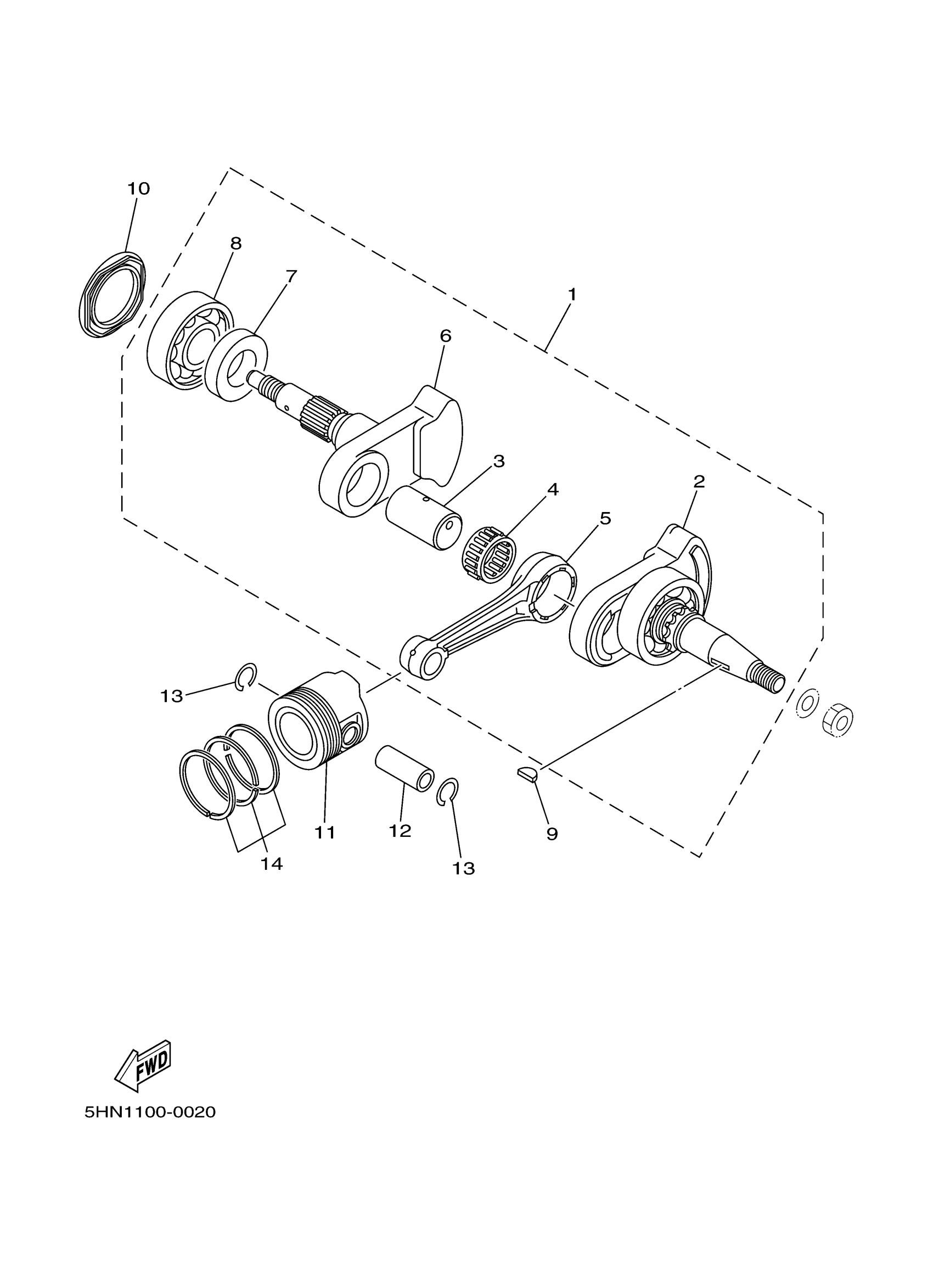

Yamaha TTR90N (TTR90) 5HN5 2001 CRANKSHAFT PISTON Diagram

CRANKSHAFT ASSY

. CRANK 1

PIN, CRANK 1

BEARING, NEEDLE(4CW)

ROD, CONNECTING

CRANK 2

SPACER

. BEARING

KEY WOODRUFF 146115450000

SPACER

PISTON (STD)

PISTON (0.50MM O/S)

PISTON (1.00MM O/S)

PIN, PISTON

CIRCLIP (22F)

PISTON RING SET (STD)

PISTON RING SET (2ND O/S)

PISTON RING SET (4TH O/S)
