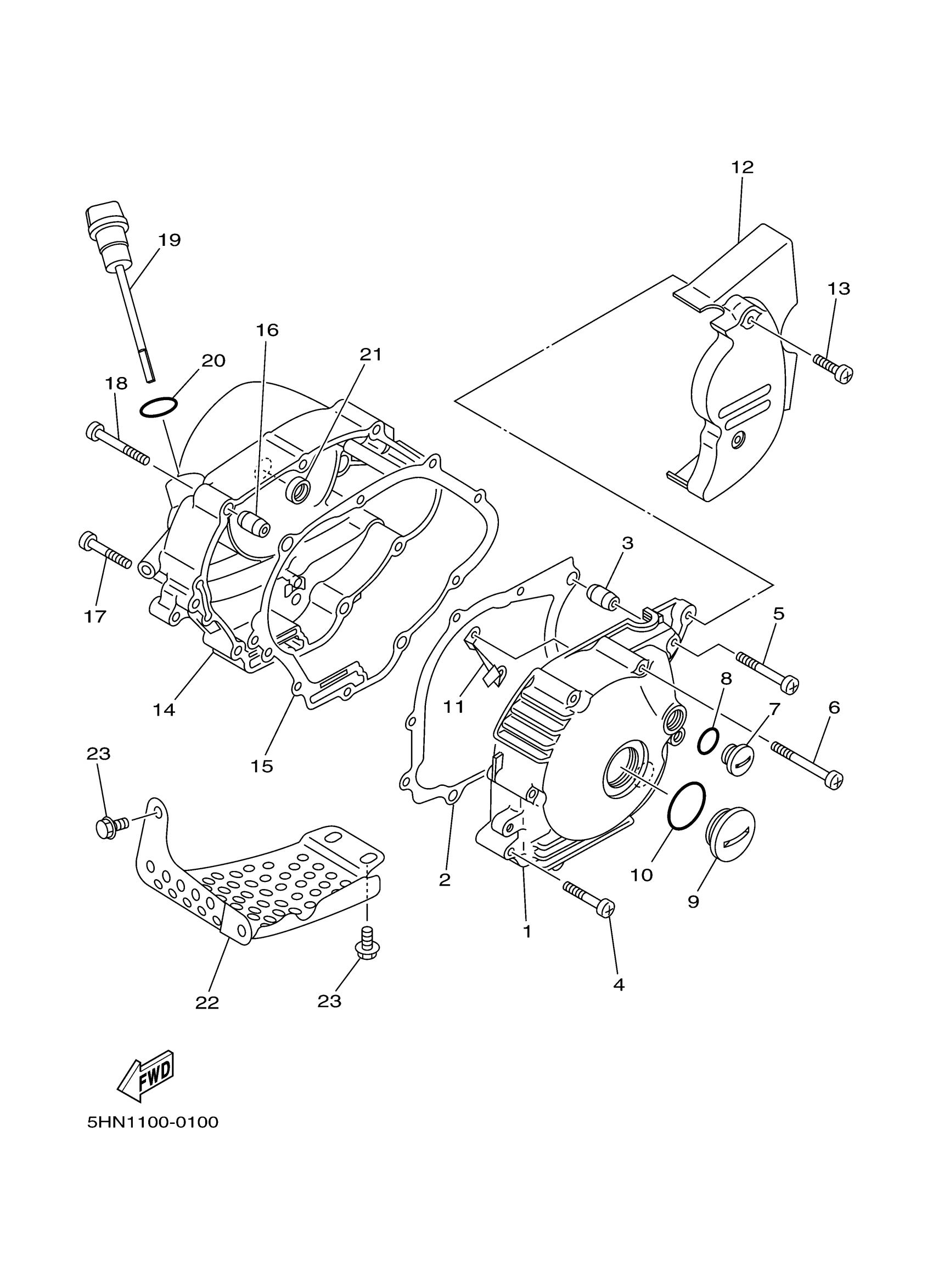

Yamaha TTR90N (TTR90) 5HN5 2001 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

4GL-15411-12-00

Unavailable

2

GASKET, CRANKCASE COVER 1

4GL-15451-01-00

$13.33

3

PIN, DOWEL(3VD)

99530-10114-00

$2.13

4

SCREW, PAN

98507-06040-00

$2.08

5

SCREW, PAN

98507-06050-00

$2.31

6

SCREW, PAN

98507-06060-00

$5.23

7

PLUG, STRAIGHT SCREW (5H0)

90340-14068-00

$14.68

8

O-RING (2H9)

93210-14369-00

$5.42

9

PLUG, STRAIGHT SCREW (5H0)

90340-32069-00

$24.26

10

O-RING (341)

93210-32172-00

$5.39

11

PLATE

4NM-15113-00-00

$4.09

12

COVER, CHAIN CASE

5HN-15418-00-00

$38.41

13

SCREW, PAN HEAD (76T)

98517-06025-00

$2.90

14

COVER, CRANKCASE 2

4GL-15421-00-00

Unavailable

15

GASKET, CRANKCASE COVER 2

5HN-15461-00-00

$16.19

16

PIN, DOWEL(3VD)

99530-10114-00

$2.13

17

SCREW, PAN

98507-06040-00

$2.08

18

SCREW, PAN

98507-06050-00

$2.31

19

PLUG, OIL LEVEL

55X-15362-10-00

Unavailable

20

O-RING (646)

93210-19123-00

Unavailable

21

OIL SEAL(2FJ)

93101-10142-00

Unavailable

22

COVER, STARTING MOTOR

4GL-15436-01-00

Unavailable

23

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable
