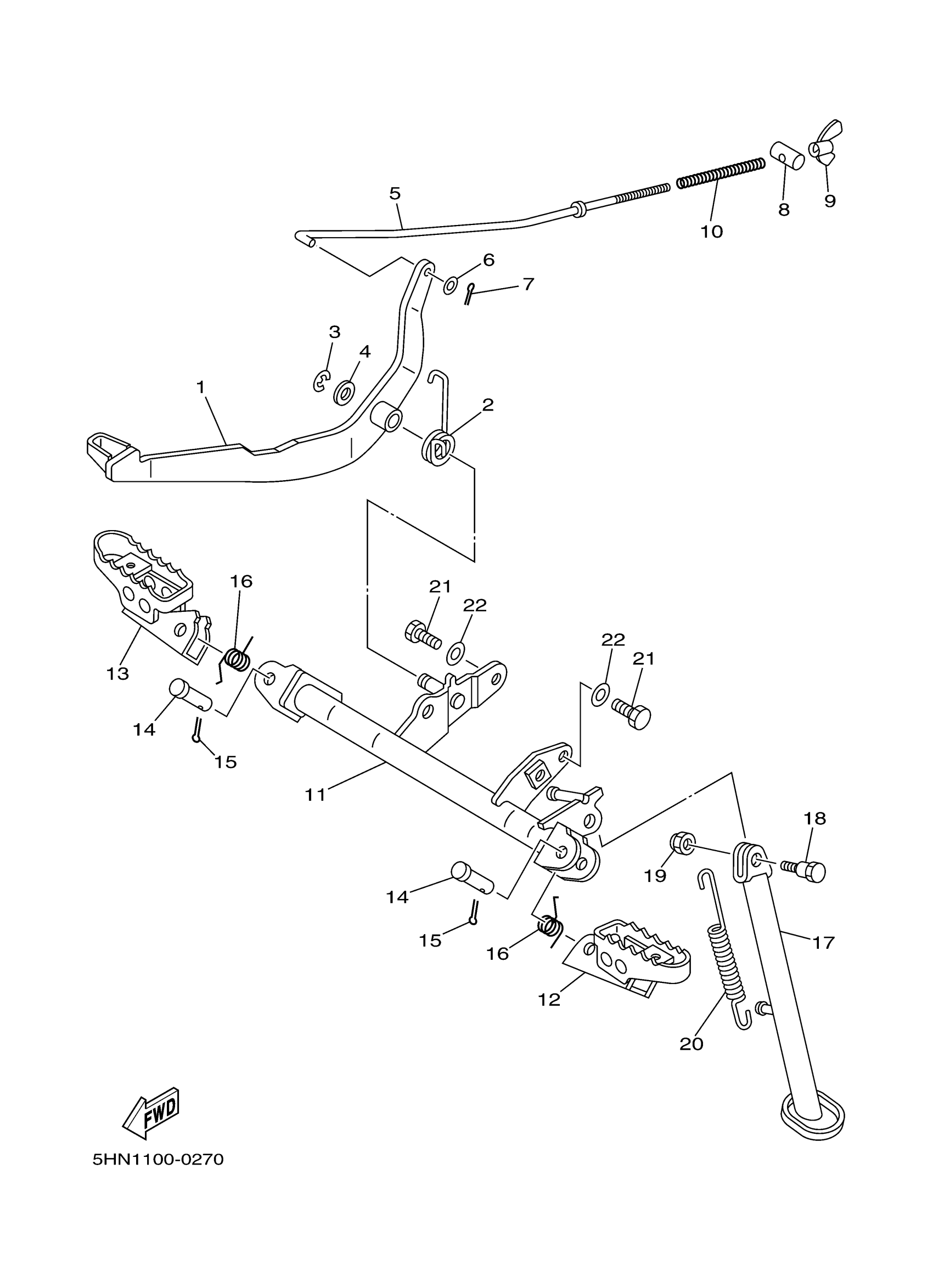

Yamaha TTR90MC (TTR90 CA) 5HN2 2000 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

5HN-27211-00-00

$63.99

2

SPRING, TORSION (21W)

90508-29578-00

$9.49

3

CIRCLIP(J51)

99080-09600-00

$2.55

4

WASHER(6TA)

92907-12600-00

$1.71

5

ROD, BRAKE

5HN-27231-00-00

$20.99

6

WASHER(6TA)

92907-06600-00

$2.72

7

PIN, COTTER (648)

91490-20015-00

$2.20

8

PIN 1562723700

90249-12008-00

$8.49

9

NUT, WING (1K5)

90175-06013-00

$4.88

10

SPRING, (180-27236-00)

90501-10245-00

$8.49

11

FOOTREST 1

5HN-27411-00-00

$124.99

12

FOOTREST 1

3LD-27411-10-00

Unavailable

13

FOOTREST 2

3LD-27421-10-00

$48.99

14

PIN, CLEVIS

90240-10002-00

$5.60

15

PIN, COTTER

91490-25020-00

$3.19

16

SPRING, TORSION

90508-20007-00

Unavailable

17

STAND, SIDE

5HN-27311-00-00

Unavailable

18

BOLT 1092537300

90109-08063-00

Unavailable

19

NUT

90185-08055-00

Unavailable

20

SPRING, TENSION (1L9)

90506-26270-00

Unavailable

21

BOLT, HEXAGON

97017-08020-00

Unavailable

22

WASHER(6TA)

92907-08600-00

Unavailable
