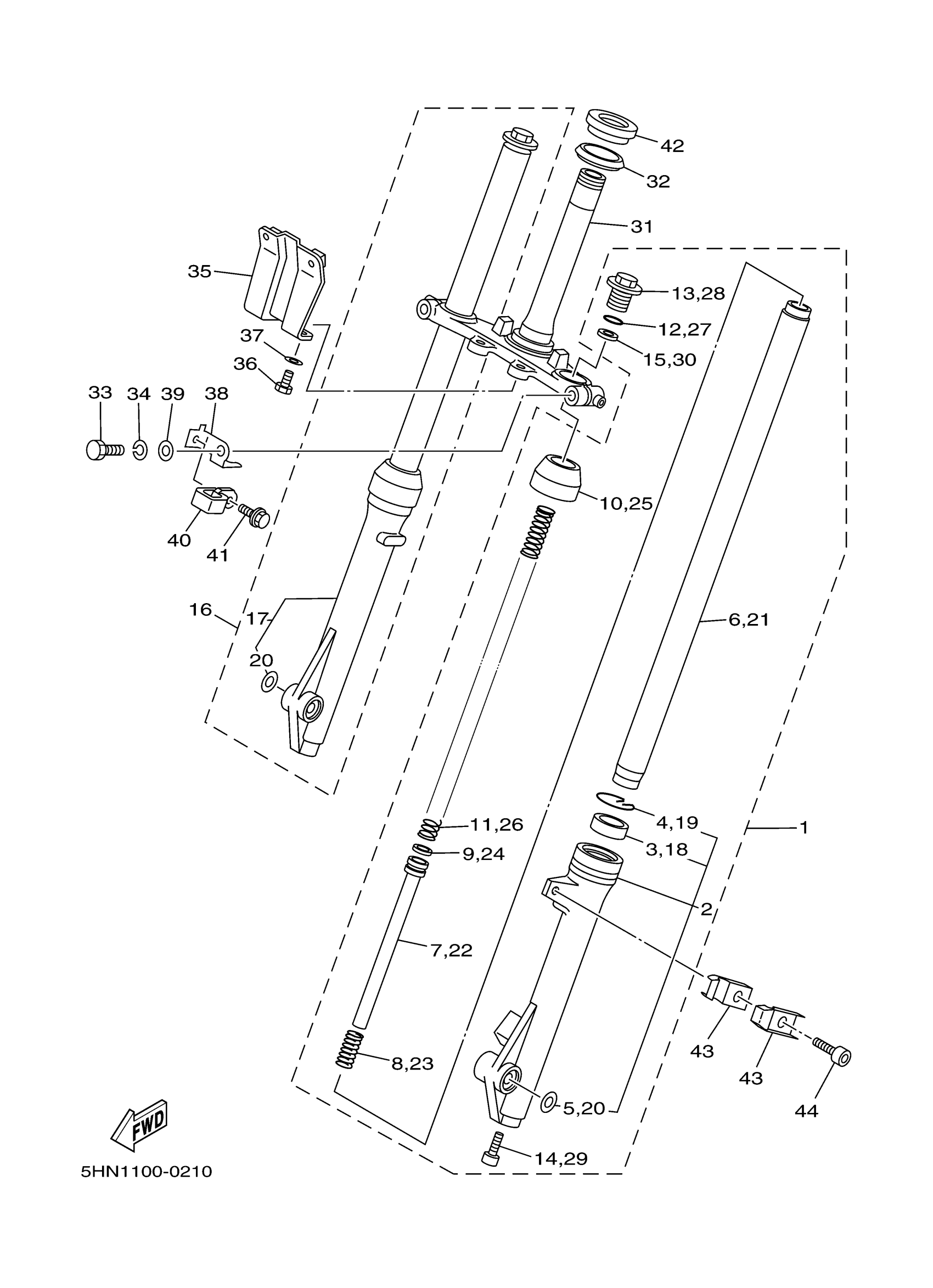

Yamaha TTR90MC (TTR90 CA) 5HN2 2000 FRONT FORK Diagram
#
Description
Price
1
FRONT FORK ASY LH
99999-03237-00
Unavailable
2
TUBE OUTER LEFT
99999-03233-00
Unavailable
5
.. WASHER, SPECIAL
3R0-23392-00-00
Unavailable
6
INNER TUBE COMP. 1
21W-23110-00-00
Unavailable
7
. CYLINDER COMP, FRONT FORK
5HN-23170-00-00
Unavailable
13
BOLT, CAP
3M7-23111-01-00
Unavailable
16
FORK ASY RH
99999-03238-00
Unavailable
17
FORK ASY RH
99999-03234-00
Unavailable
20
.. WASHER, SPECIAL
3R0-23392-00-00
Unavailable
21
INNER TUBE COMP. 1
21W-23110-00-00
Unavailable
22
. CYLINDER COMP, FRONT FORK
5HN-23170-00-00
Unavailable
28
BOLT, CAP
3M7-23111-01-00
Unavailable
31
UNDER BRACKET COMP.
5HN-23340-00-00
Unavailable
32
SEAL, DUST
164-23462-00-00
Unavailable
33
BOLT
451-23346-01-00
Unavailable
34
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
35
STAY, PLATE
5HN-23486-00-00
Unavailable
36
BOLT, HEXAGON
97017-06016-00
Unavailable
37
WASHER, SPRING
92907-06100-00
Unavailable
38
BRACKET 1
5HN-2334G-00-00
Unavailable
39
WASHER, PLATE
92990-10600-00
Unavailable
40
HOLDER
5HN-23857-00-00
Unavailable
41
BOLT, WASHER BASED
90105-05002-00
Unavailable
42
BEARING(4HC)
93399-99942-00
Unavailable
43
CLAMP (3R0)
90462-14055-00
Unavailable
44
BOLT,SOCKET
91317-06012-00
Unavailable
