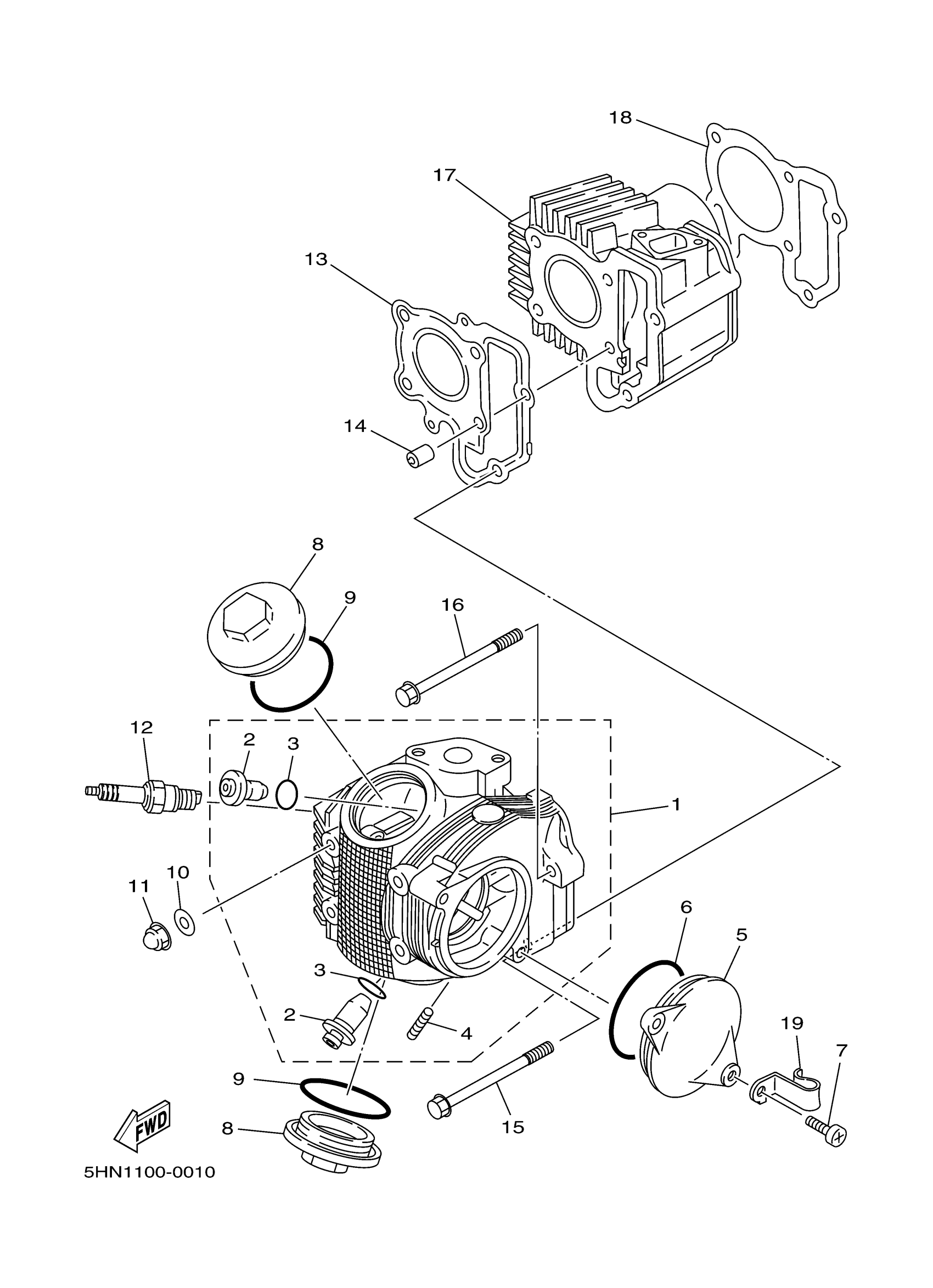

Yamaha TTR90MC (TTR90 CA) 5HN2 2000 CYLINDER HEAD Diagram

CYLINDER HEAD ASSY

4GL-11110-11-00

Unavailable

GUIDE, EXHAUST VALVE

4GL-11134-10-00

$154.99

O-RING (4A0)

93210-09418-00

Unavailable

BOLT

22F-14651-00-00

$6.99

COVER, CYLINDER HEAD SIDE 1

50M-11185-10-00

Unavailable

O-RING (22F)

93210-63556-00

$5.60

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

COVER, CYLINDER HEAD SIDE 2

22F-11186-10-00

$20.99

O-RING(55X)

93210-44704-00

$7.49

WASHER, PLATE

90201-080L7-00

$4.82

NUT, CROWN (4G0)

90176-08026-00

$14.99

CR6HS NGK SPLUG 10 PACK

CR6-HS000-00-00

Unavailable

GASKET, CYLINDER HEAD 1

4GL-11181-00-00

$32.99

PIN, DOWEL(3VD)

99530-10114-00

$2.55

BOLT, FLANGE(4NM)

95027-06085-00

$9.49

BOLT, FLANGE(4NM)

95027-06085-00

$9.49

CYLINDER 1

4GL-11311-01-00

Unavailable

GASKET, CYLINDER

5HN-11351-00-00

Unavailable

CLAMP (22K)

90465-08230-00

Unavailable
