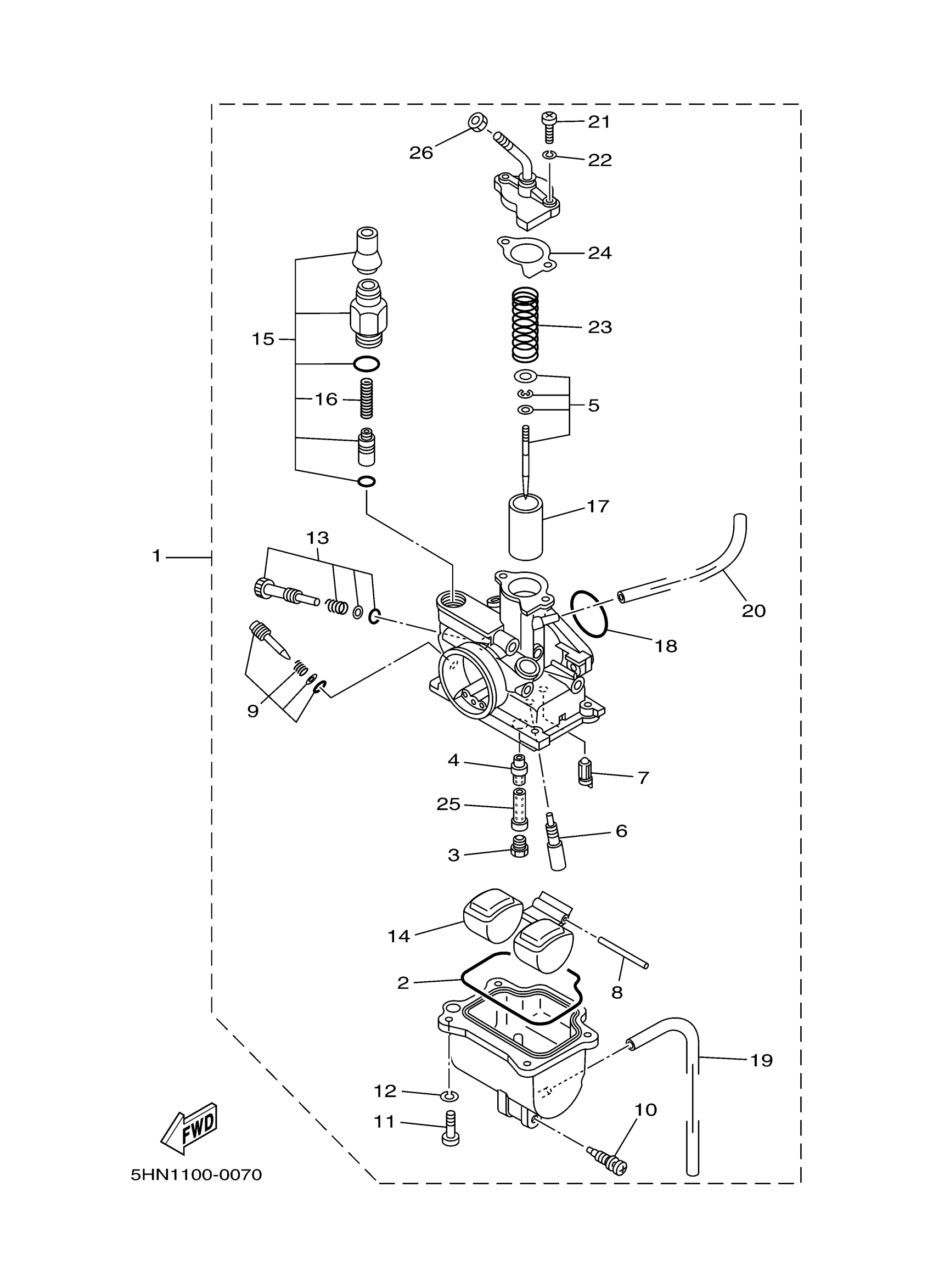

Yamaha TTR90MC (TTR90 CA) 5HN2 2000 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

5HN-14101-01-00

$552.99

2

SEAL

4GL-14239-00-00

$18.49

3

JET, MA1N #90

18A-14143-18-00

Unavailable

4

NOZZLE, MAIN

5HN-14141-13-00

$34.99

5

. NEEDLE SET

5HN-1490J-00-00

Unavailable

6

JET, PILOT (# 12.5)

3KD-14142-12-00

$23.99

7

NEEDLE ASSY

7LG-14150-11-00

$24.99

8

PIN, FLOAT

353-14186-00-00

$7.99

9

AIR SCREW SET

4GL-14104-00-00

$10.99

10

PLUG, DRAIN

12R-14191-00-00

$16.49

11

SCREW, PAN HEAD(N15)

98507-04014-00

$1.86

12

WASHER(6TA)

92907-04100-00

$8.49

13

THROTTLE SCREW SET

4GL-14103-00-00

Unavailable

14

FLOAT

5DV-14985-00-00

Unavailable

15

STARTER SET

5HN-1410A-00-00

$60.99

16

SPRING, PLUNGER

5HN-14135-00-00

Unavailable

17

VALVE, THROTTLE 1

5HN-14112-25-00

Unavailable

18

O-RING

241-14147-00-00

Unavailable

19

PIPE 1

4GL-14348-00-00

Unavailable

20

. HOSE

5HN-14987-00-00

Unavailable

21

SCREW, PAN HEAD(6G8)

98507-04010-00

Unavailable

22

WASHER(6TA)

92907-04100-00

$8.49

23

SPRING

4NM-14275-00-00

Unavailable

24

GASKET

4NM-14198-00-00

Unavailable

25

PIPE

5HN-14148-00-00

Unavailable

26

NUT, CABLE ADJUSTING

522-14161-00-00

Unavailable
