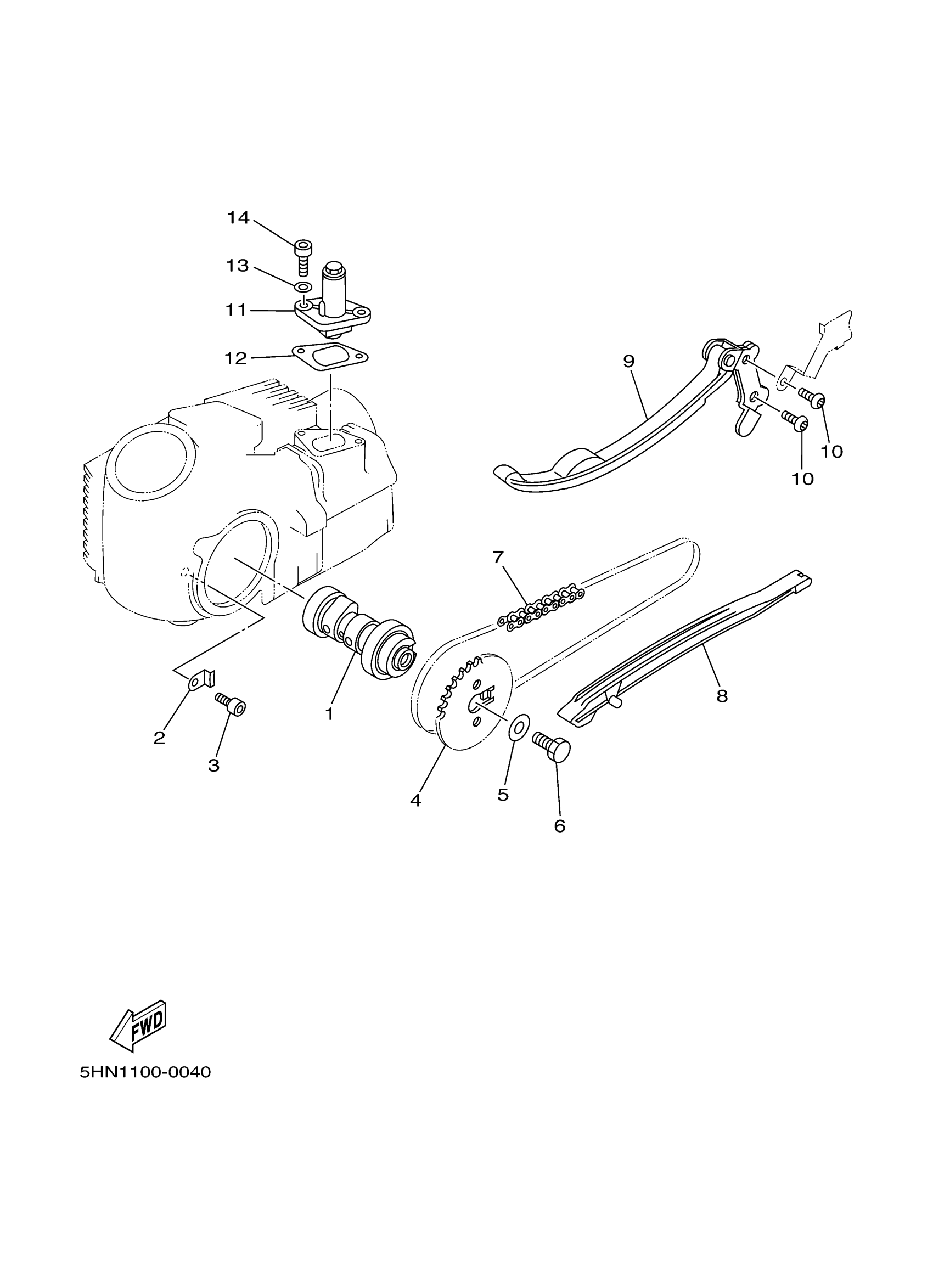

Yamaha TTR90MC (TTR90 CA) 5HN2 2000 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

5HN-12170-00-00

Unavailable

2

PLATE

4GL-1111F-00-00

$6.42

3

BOLT,SOCKET

91317-06012-00

$5.75

4

SPROCKET, CAM CHAIN

4GL-12176-00-00

Unavailable

5

WASHER (853)

90201-08326-00

$5.75

6

BOLT, HEXAGON (22F)

90101-08590-00

$2.08

7

CHAIN

94591-51084-00

$16.91

8

GUIDE, STOPPER 1

4GL-12231-00-00

$68.20

9

GUIDE, STOPPER 2

4GL-12241-00-00

Unavailable

10

BOLT,SOCKET

91317-06016-00

$1.15

11

TENSIONER ASSY, CAM CHAIN

4GL-12210-00-00

$74.63

12

GASKET, TENSIONER CASE

4RF-12213-00-00

$4.90

13

GASKET 256113960000

90430-06014-00

Unavailable

14

BOLT,SOCKET

91317-06016-00

$1.15
