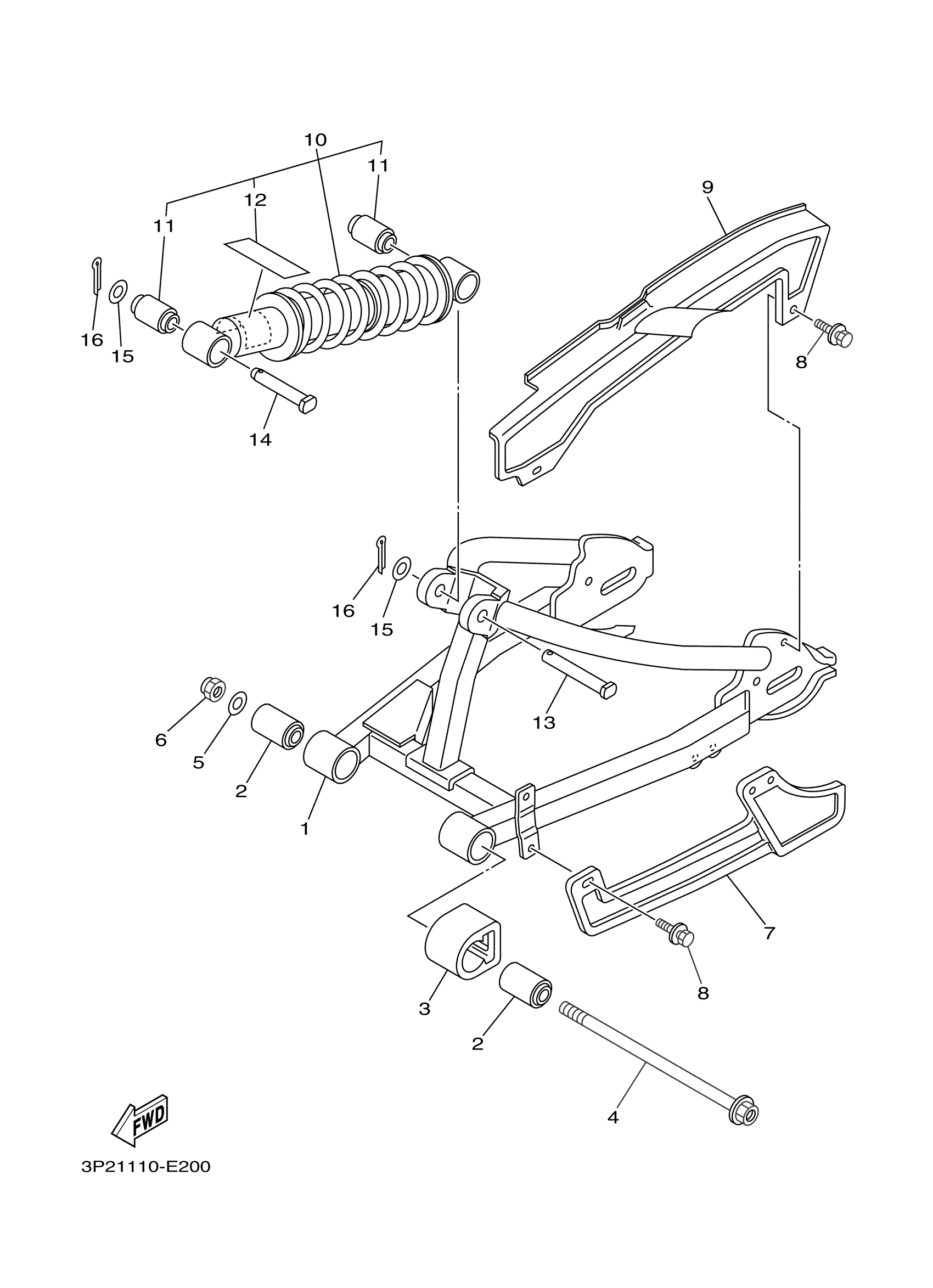

Yamaha TTR90EW (TTR90E) 3P26 2007 REAR ARM SUSPENSION Diagram

#

Description
Price

1

REAR ARM COMP.

5HN-22110-00-00

Unavailable

2

BUSH 1

102-22123-00-00

Unavailable

3

SEAL, GUARD

5HN-22151-00-00

Unavailable

4

BOLT (583 FRAME)

90105-10063-00

$11.49

5

WASHER PLATE (3L6)

90201-08759-00

$3.23

6

NUT, U

90185-10037-00

$9.49

7

SUPPORT, CHAIN

21W-22199-00-00

Unavailable

8

BOLT, WITH WASHER

90119-05009-00

$3.81

9

CASE, CHAIN

21W-22311-00-00

$24.99

10

SHOCK ABSORBER ASSY, REAR

5HN-22210-01-00

Unavailable

11

BUSHING

3M7-22216-00-00

$23.99

12

LABEL, WARNING

4AA-22259-80-00

$13.49

13

PIN, CLEVIS (3R0)

90240-10072-00

$11.49

14

PIN, CLEVIS (3R0)

90240-10069-00

$11.49

15

WASHER, PLATE(56J)

90201-106H5-00

$10.49

16

PIN, COTTER

91490-25020-00

Unavailable
